AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA5#

Click highlighted areas on diagram

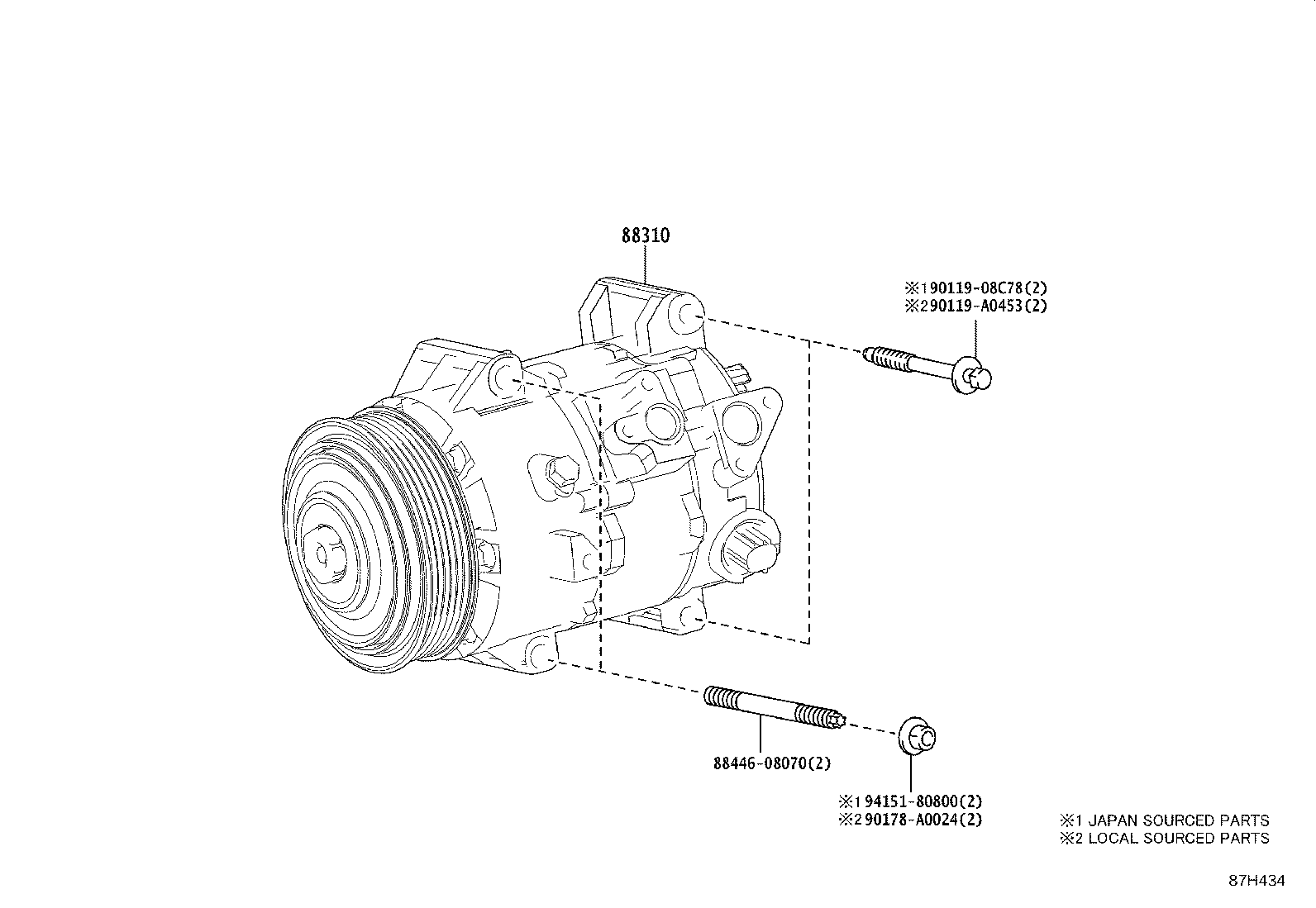

diagram 88310 8844608070 9011908C78 90119A0453 90178A0024 9415180800
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-06570

AXAA5#

 1
Common parts
88446-08070
90119-08C78
90119-A0453
90178-A0024
94151-80800
