AXAA54L-CNZGBK (2018)
Toyota Rav4 (Nap)
ILLUST NO. 5 OF11(1812- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0R250 |
AXAA5#..M..CND;AXAH54..G..USA;AXAA5#,AXAL54..G;AXAH54..(G,M)..CND TYPE B:REFER ILLUST. |
1 | ||
| 83950-0R250 |
AXAL54..M;AXAA5#,AXAH54..X..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)),TYPE B:REFER ILLUST. |
1 | ||
| 83950-0R240 |
AXAL54..M,X;AXAA5#,AXAH54..V,X;AXAA5#,AXAH54..M..USA TYPE A:REFER ILLUST. |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0R250 |
AXAA5#..M..CND;AXAH54..G..USA;AXAA5#,AXAL54..G;AXAH54..(G,M)..CND TYPE B:REFER ILLUST. |
1 | ||
| 83950-0R250 |
AXAL54..M;AXAA5#,AXAH54..X..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)),TYPE B:REFER ILLUST. |
1 | ||
| 83950-0R240 |
AXAL54..M,X;AXAA5#,AXAH54..V,X;AXAA5#,AXAH54..M..USA TYPE A:REFER ILLUST. |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0R020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-0R020 |
AXAH54..M;AXAA54..M..CND;AXAH54..G..USA;AXAA54..(G,M)..USA;AXAA52,AXAL54..G,M STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84255-0R020 |
AXAA5#,AXAH54,AXAL54..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&POWER DOOR LOCK-W(TWO OPERATION) &W(POWER BACK DOOR) |
1 | ||
| 84255-0R020 |
AXAA54,AXAH54..G..CND |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-0R020 |
AXAA5#,AXAH54,AXAL54..G,V BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0R060 |
AXAA5#..M..CND;AXAH54..G..USA;AXAA5#,AXAL54..G;AXAH54..(G,M)..CND |
1 | ||
| 84751-0R060 |
AXAL54..M;AXAA5#,AXAH54..X..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-0R070 |
AXAA5#..M..CND;AXAH54..G..USA;AXAA5#,AXAL54..G;AXAH54..(G,M)..CND |
1 | ||
| 84751-0R070 |
AXAL54..M;AXAA5#,AXAH54..X..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)) |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-0R010 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER),TYPE C:REFER ILLUST. |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-0R030 |
AXAA5#,AXAH54..CND |
1 | ||
| 84966 - SWITCH, POWER BACK DOOR CONTROL | ||||
| 84966-0R010 |
AXAA5#,AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 84966-0R010 |
AXAA5#,AXAH54,AXAL54..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&POWER DOOR LOCK-W(TWO OPERATION) &W(POWER BACK DOOR) |
1 | ||
| 84966-0R010 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-42050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R022 |
AXAA5#..G,M,V |
1 | ||
| 89611-0R022 |
AXAA5#..X KEY PLATE-FOR SMART ENTRY |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R022 |
AXAA5#..G,M,V |
1 | ||
| 89611-0R022 |
AXAA5#..X KEY PLATE-FOR SMART ENTRY |
1 | ||
ILLUST NO. 6 OF11(1812- )
CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0R030 |
AXAA54..G,V |
1 | ||
| 84010-0R020 |
AXAA54..M,X |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0R030 |
AXAA54..G,V |
1 | ||
| 84010-0R020 |
AXAA54..M,X |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0R030 |
AXAA54..G,V |
1 | ||
| 84010-0R020 |
AXAA54..M,X |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54..G,M,V AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..G,M,V AUDIO JACK-FRONT:USB3,REAR:USB2 |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54..X..CND AUDIO-6PEAKER & 8INCH DISPLAY & XM |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3 |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3,REAR:USB2 |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..M,X |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-0R010 |
AXAA5#,AXAH54..G,M,V AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85532-0R010 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3 |
1 | ||
| 85532-0R010 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3 |
1 | ||
| 85532-0R010 |
AXAA5#,AXAH54,AXAL54..G,M,V AUDIO JACK-FRONT:USB3,REAR:USB2 |
1 | ||
| 85532B - SOCKET, USB CHARGER | ||||
| 85532-06010 |
AXAA5#,AXAH54,AXAL54..G,V |
1 | ||
| 85532-06010 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85532-06010 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3,REAR:USB2 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54 BLACK |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0E060C0 |
AXAA5#,AXAH54..X..CND AUDIO-6PEAKER & 8INCH DISPLAY & XM,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..G,M,V AUDIO JACK-FRONT:USB3,REAR:USB2,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..G,M,V BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54..G,M,V AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3,BLACK |
1 | ||
| 85535H - COVER, POWER OUTLET SOCKET, NO.3 | ||||
| 85535-0E060C0 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..M,X BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3,REAR:USB2,BLACK |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
ILLUST NO. 8 OF11(1812- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-06190C0 |
AXAA5#,AXAH54,AXAL54..G BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-06190C0 |
AXAA5#..M SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-06190C0 |
AXAA5#,AXAH54,AXAL54..M FRONT SEAT SLIDE-*DRS:POWER, *PAS:MANUAL,BLACK,TRIM1#,2#,4# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-06100C0 |
AXAA5#,AXAH54,AXAL54..G BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-06100C0 |
AXAA5#..M SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM1#,2#,4# |
1 | ||
| 84921-06100C0 |
AXAA5#,AXAH54,AXAL54..M FRONT SEAT SLIDE-*DRS:POWER, *PAS:MANUAL,BLACK,TRIM1#,2#,4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-0R010C0 |
AXAA5#,AXAH54,AXAL54..G BLACK,TRIM1#,2#,4# |
1 | ||
| 84922-06180C0 |
AXAA5#,AXAH54,AXAL54..M FRONT SEAT SLIDE-*DRS:POWER, *PAS:MANUAL,BLACK,TRIM1#,2#,4# |
1 | ||
| 84922-0R010C0 |
AXAA5#..M SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM1#,2#,4# |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-0R010 |
AXAA5#..M SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89710-0R010 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| Common parts | ||||
| 90080-16105 | ||||
| 93560-54012 | ||||
ILLUST NO. 9 OF11(1812- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0R050 |
AXAA5#..M SEAT COVER MATERIAL(SYNTHETIC LEATHER) |
1 | ||
| 84040-0R040 |
AXAA5#,AXAH54,AXAL54..M,V,X |
1 | ||
| 84040-0R050 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-0R120 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-0R120 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0R030 |
AXAA5#,AXAH54,AXAL54..M,V,X |
1 | ||
| 84810-0R040 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 84810-0R040 |
AXAA5#..M SEAT COVER MATERIAL(SYNTHETIC LEATHER) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0R040 |
AXAA5#,AXAH54,AXAL54..G |
2 | ||
| 84810-0R030 |
AXAA5#,AXAH54,AXAL54..M,V,X |
2 | ||
| 84810-0R040 |
AXAA5#..M SEAT COVER MATERIAL(SYNTHETIC LEATHER) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0R040 |
AXAA5#,AXAH54,AXAL54..G |
2 | ||
| 84810-0R030 |
AXAA5#,AXAH54,AXAL54..M,V,X |
2 | ||
| 84810-0R040 |
AXAA5#..M SEAT COVER MATERIAL(SYNTHETIC LEATHER) |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0R060 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-0R020 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 84927-0R020 |
AXAA5#..M SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1 | ||||
| 84966-42020 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 84966-42020 |
AXAA5#,AXAH54,AXAL54..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&POWER DOOR LOCK-W(TWO OPERATION) &W(POWER BACK DOOR) |
1 | ||
| 84966-42020 |
AXAA5#,AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3,REAR:USB2 |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 85530-06030 |
AXAA5#,AXAH54,AXAL54..G,V |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-0E060C0 |
AXAA5#,AXAH54..M AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..M AUDIO JACK-FRONT:USB3,REAR:USB2,BLACK |
1 | ||
| 85535-0E060C0 |
AXAA5#,AXAH54,AXAL54..G,V BLACK |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90166-60004 | ||||
| 90166-A0007 | ||||
| 90166-A0008 | ||||
ILLUST NO. 4 OF11(1812- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXAA5#,AXAH54,AXAL54 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXAA5#,AXAH54,AXAL54 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
AXAA5#,AXAH54,AXAL54 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXAA5#,AXAH54,AXAL54 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
AXAA5#,AXAH54,AXAL54 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH54,AXAL54 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXAA5#,AXAH54,AXAL54 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
AXAA5#,AXAH54,AXAL54 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXAA5#,AXAH54,AXAL54 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
AXAA5#,AXAH54,AXAL54 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH54,AXAL54 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXAA5#,AXAH54,AXAL54 20A,MINI FUSE,YELLOW |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0R200 |
AXAA5# |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-06030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09291 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90080-87026 |
AXAL54..M;AXAA5#,AXAH54..X..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)) |
2 | ||
| 90080-87026 |
AXAL54..M,X;AXAA5#,AXAH54..V,X;AXAA5#,AXAH54..M..USA |
1 | ||
| 90080-87026 |
AXAA5#..M..CND;AXAH54..G..USA;AXAA5#,AXAL54..G;AXAH54..(G,M)..CND |
2 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90080-87026 |
AXAA54,AXAH54..G..CND |
1 | ||
| 90080-87026 |
AXAH54..M;AXAA54..M..CND;AXAH54..G..USA;AXAA54..(G,M)..USA;AXAA52,AXAL54..G,M STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER)&POWER DOOR LOCK-W(TWO OPERATION) &W(POWER BACK DOOR) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-42040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-0R020 |
AXAA5# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0E060 |
AXAA52..CND;AXAH54,AXAL54;AXAA54..G,M,V;AXAA54..X..CND;AXAA52..(G,M)..USA |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0R660 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89220-0R660 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 89220-0R660 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R760 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89220-0R760 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R660 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R750 |
AXAA5#..(M,X)..CND |
1 | ||
| 89220-0R780 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R760 |
AXAA5#..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R780 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R790 |
AXAA5#..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R780 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R790 |
AXAA54..G..CND |
1 | ||
| 89220-0R780 |
AXAA54..G..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 89220-0R790 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R790 |
AXAA5#..M..CND FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R780 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R790 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R791 |
AXAA54..G..CND |
1 | ||
| 89220-0R781 |
AXAA54..G..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 89220-0R661 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 89220-0R661 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89220-0R661 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R661 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R761 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89220-0R761 |
AXAA5#..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R781 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R781 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R751 |
AXAA5#..(M,X)..CND |
1 | ||
| 89220-0R761 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0R791 |
AXAA5#..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R781 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R791 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R791 |
AXAA5#..M..CND FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R661 |
AXAA5#,AXAH54..X..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 89220-0R791 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R781 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0R781 |
AXAA54..G..CND |
1 | ||
| 89220-0RC00 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89220-0RC50 |
AXAA54..G..CND |
1 | ||
| 89220-0RC10 |
AXAA5#..(M,X)..CND |
1 | ||
| 89220-0RB90 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0RB90 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89220-0RC50 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RC00 |
AXAA5#..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0RB90 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0RC50 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RC00 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 89220-0RC50 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RC60 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RC60 |
AXAA5#..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RB90 |
AXAH54..X..CND;AXAA5#..(M,X)..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 89220-0RC60 |
AXAA5#..M..CND FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RC60 |
AXAA5#..M..CND POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89220-0RC50 |
AXAA5#..M..CND ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST&FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..G,V |
1 | ||
| 90080-87026 |
AXAL54..M,X;AXAA5#,AXAH54..M ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 90080-87026 |
AXAA5#,AXAH54..G,V ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 90080-87026 |
AXAA5#,AXAH54..X ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-A0105 | ||||
| 90179-06274 | ||||
| 90183-A0002 | ||||
| Linked diagrams | ||||
| 8202 | ||||

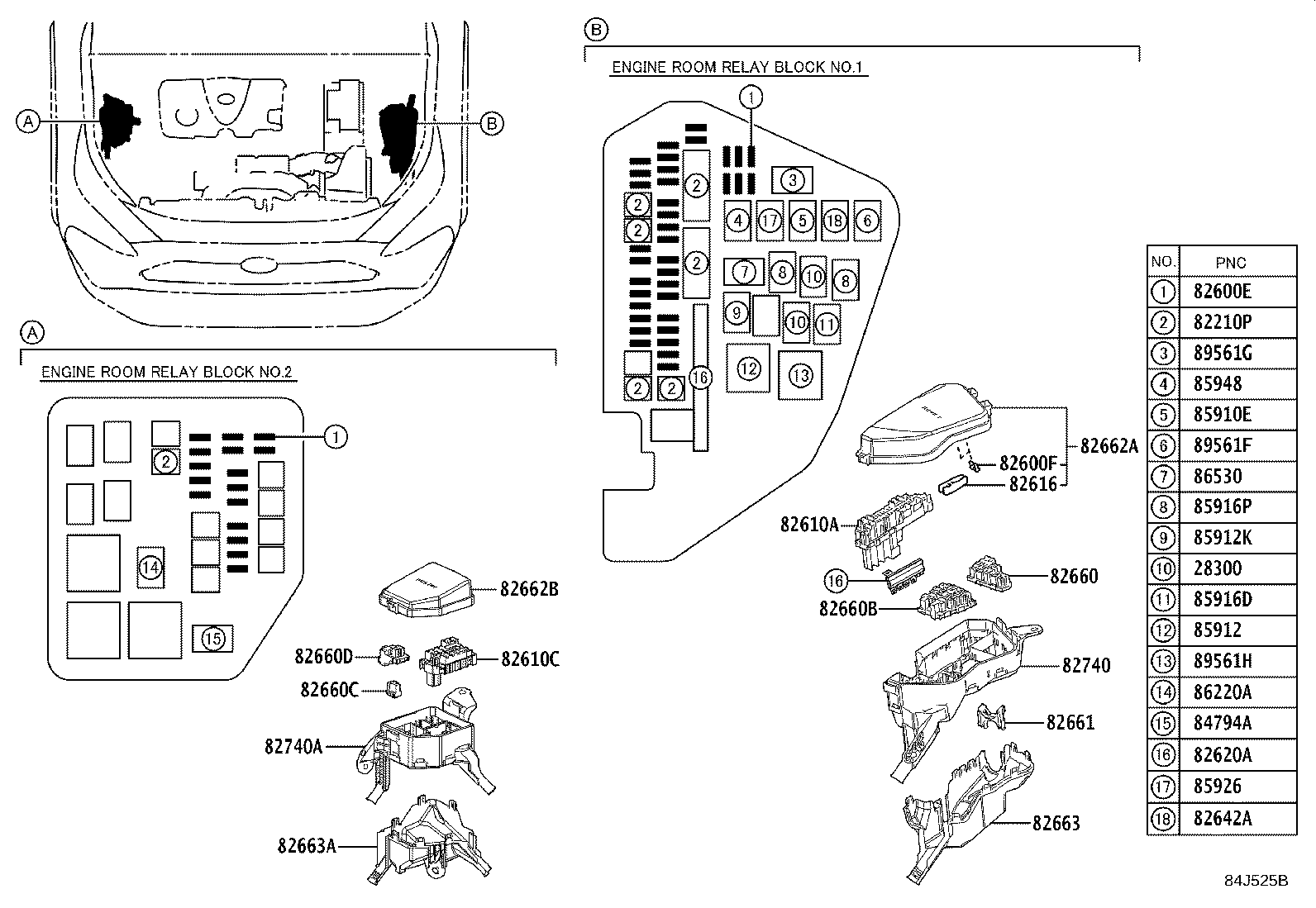

ILLUST NO. 3 OF11(1812- )AXAA5#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
A25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V;A25AFKS..AXAA52..M..CND;A25AFKS..AXAA54..(M,X)..CND |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08303 |
AXAA5# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08285 |
AXAA5#,AXAH54,AXAL54 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
AXAA5#,AXAH54,AXAL54 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08302 |
AXAA5#,AXAH54,AXAL54 50A-30A-50A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AXAA5#,AXAH54,AXAL54 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXAA5#,AXAH54,AXAL54 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
AXAA5#,AXAH54,AXAL54 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH54,AXAL54 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXAA5#,AXAH54,AXAL54 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AXAA5#,AXAH54,AXAL54 25A,MINI FUSE |
1 | ||
| 90982-09023 |
AXAA5#,AXAH54,AXAL54 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
AXAA5#,AXAH54,AXAL54 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AXAA5#,AXAH54,AXAL54 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-42080 |
AXAA5# |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-42090 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33150 |
AXAA5#..M..CND;AXAA5#..G..USA COLD AREA SPEC,W(STEERING HEATER)&STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 82620-33150 |
AXAA54..V;AXAA54..G..CND COLD AREA SPEC,W(STEERING HEATER) |
1 | ||
| 82620-33130 |
AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND |
1 | ||
| 82620-33150 |
AXAA54..G..CND *COS,W(STEERING HEATER&REAR SEAT HEATER) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42100 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-42110 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-33050 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42070 |
AXAA5# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0R390 |
AXAA5#..G,V;AXAA5#..M..CND COLD AREA SPEC,W(STEERING HEATER) |
1 | ||
| 82662-0R390 |
AXAA5#..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
1 | ||
| 82662-0R240 |
AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0R260 |
AXAA52..G,X;AXAA54..CND;AXAA52..M..CND;AXAA54..G..USA |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42160 |
AXAA5# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42170 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-42050 |
AXAA5# |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-42120 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90080-87026 |
AXAA5#,AXAH54..CND |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90080-87026 |
AXAA5# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87025 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90080-87026 |
AXAA5# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90080-87026 |
AXAA5# |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90080-87026 |
AXAA5# |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90080-87024 |
AXAA5# |
1 | ||

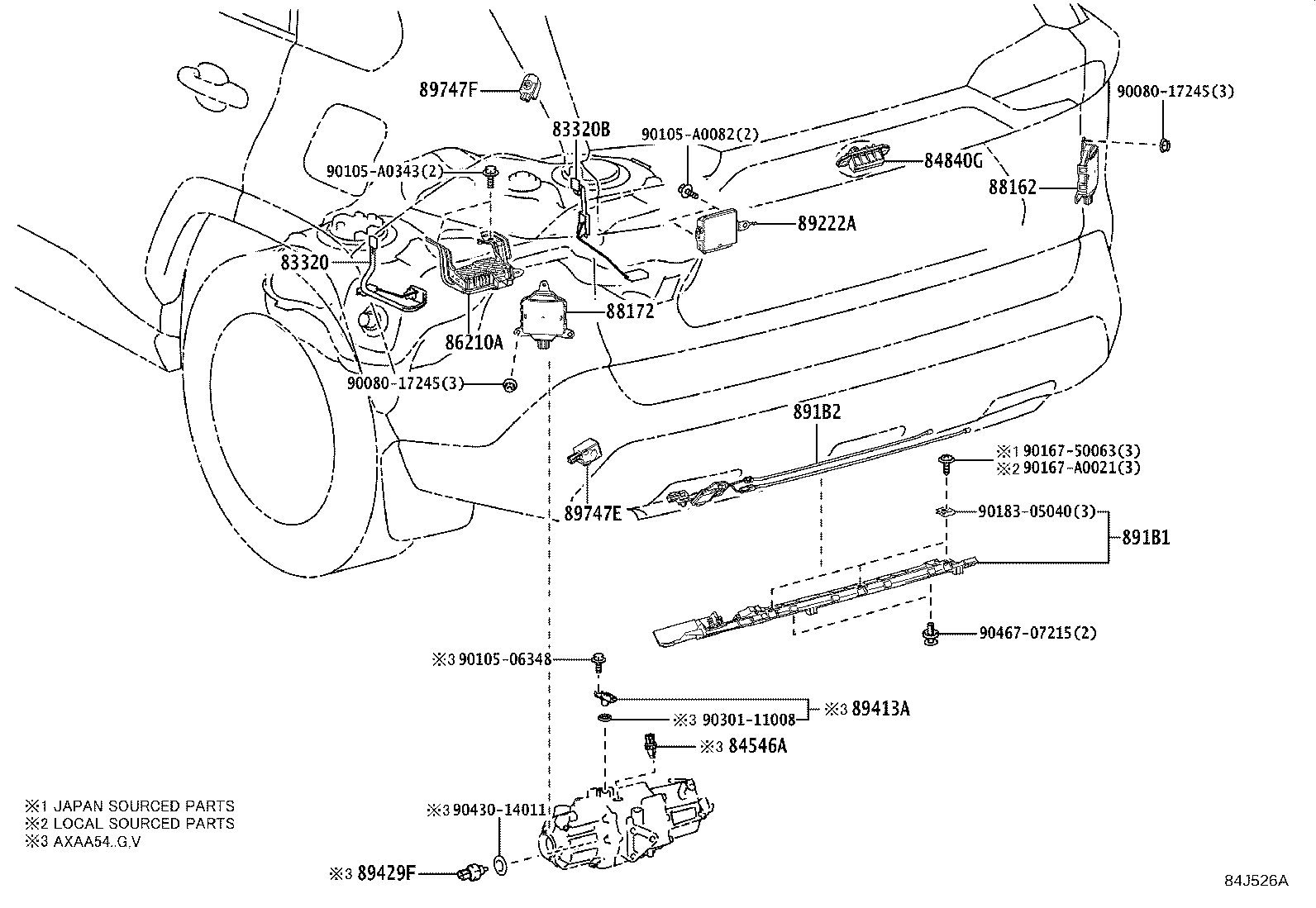

ILLUST NO.10 OF11(1812- )AXAA5#
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0R030 |
AXAA5# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-0R040 |
AXAA5# |
1 | ||
| 84546A - SWITCH, 4 WHEEL DRIVE POSITION, NO.2 | ||||
| 84546-42010 |
AXAA54..G,V |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47030 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 84840-47040 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 84840-47040 |
AXAA5#,AXAH54,AXAL54..X KEY PLATE-FOR SMART ENTRY |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0R030 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R030 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0R030 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R030 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-0R030 |
AXAA5#,AXAH54,AXAL54..G,V POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR)) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0R030 |
AXAA5#,AXAH54,AXAL54..G,V POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR)) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-0R080 |
AXAA5#..G |
1 | ||
| 89222-0R081 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 89222-0R081 |
AXAA5#..M,V POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89222-0R080 |
AXAA5#..M,V POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89413A - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-12010 |
AXAA54..G,V |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-53010 |
AXAA54..G,V |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-0R020 |
AXAA5#..M,V POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
1 | ||
| 89747-0R020 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 89747-52010 |
AXAA5#,AXAH54,AXAL54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| Common parts | ||||
| 90080-17245 | ||||
| 90105-06348 | ||||
| 90105-A0082 | ||||
| 90105-A0343 | ||||
| 90167-50063 | ||||
| 90167-A0021 | ||||
| 90183-05040 | ||||
| 90301-11008 | ||||
| 90430-14011 | ||||
| 90467-07215 | ||||

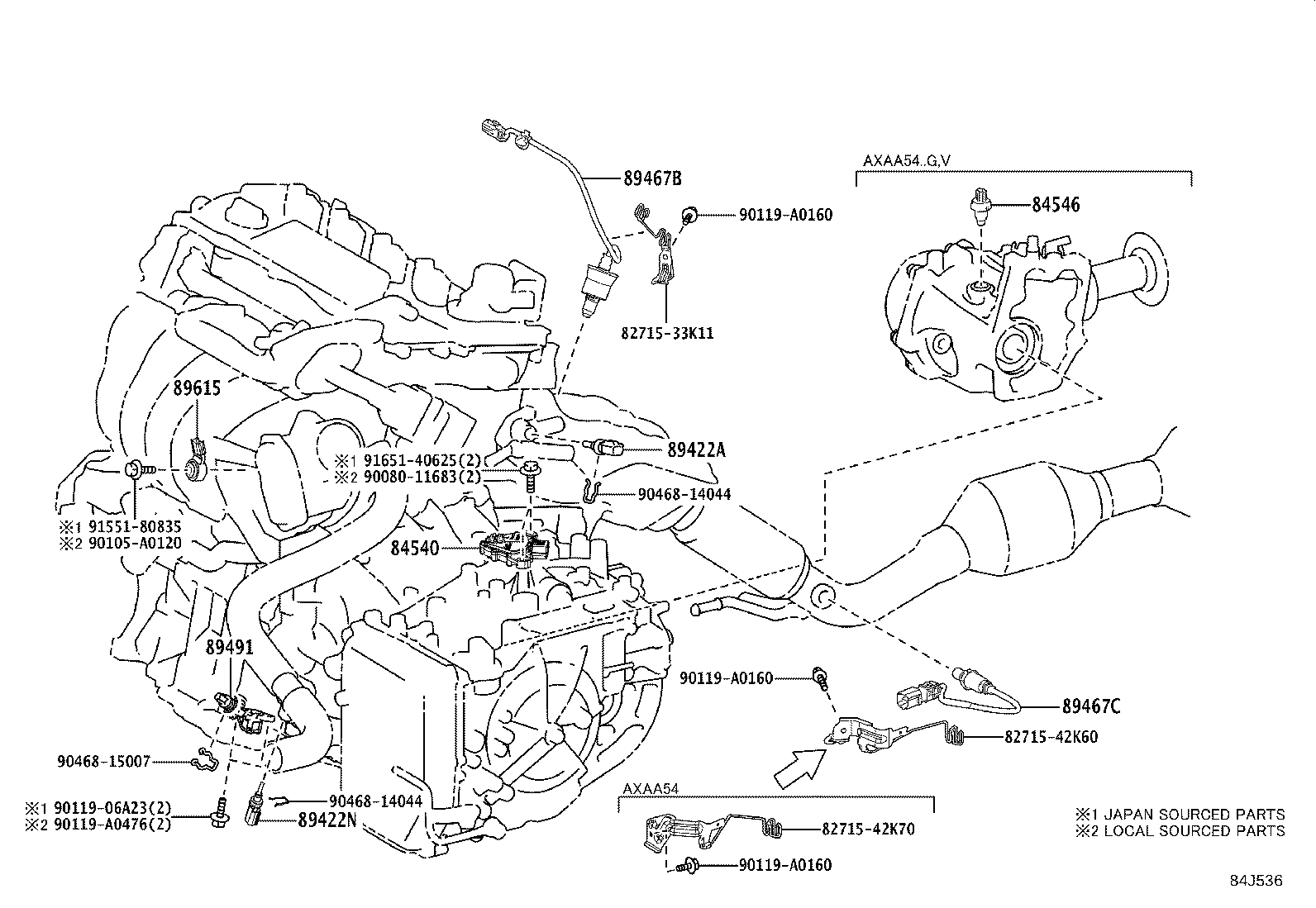

ILLUST NO. 1 OF11(1812- )AXAA5#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-06020 |
AXAA5# (L) |
1 | ||
| 84540-33020 |
AXAA5# (J) |
1 | ||
| 84546 - SWITCH, 4 WHEEL DRIVE POSITION, NO.1 | ||||
| 84546-42010 |
AXAA54..G,V |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89422N - SENSOR, WATER TEMPERATURE, NO.2 | ||||
| 89422-33040 |
AXAA5#..G,V;AXAH54,AXAL54 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-06250 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0R100 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 89615-06010 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| Common parts | ||||
| 82715-33K11 | ||||
| 82715-42K60 | ||||
| 82715-42K70 | ||||
| 90080-11683 | ||||
| 90105-A0120 | ||||
| 90119-06A23 | ||||
| 90119-A0160 | ||||
| 90119-A0476 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91651-40625 | ||||
ILLUST NO. 2 OF11(1812- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-A0507 | ||||
| 90178-06018 | ||||
| 90178-A0112 | ||||
ILLUST NO.11 OF11(1812- )
FLOOR RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910K - RELAY, REAR SEAT HEATER | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 85910K - RELAY, REAR SEAT HEATER | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 85910K - RELAY, REAR SEAT HEATER | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| Common parts | ||||
| 90119-08944 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 7 OF11(1812- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 84052-71010 |
AXAA5#,AXAH54,AXAL54..X KEY PLATE-FOR SMART ENTRY |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0R310 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 84250-0R310 |
AXAA5#,AXAH54,AXAL54..M STEERING WHEEL-LEATHER |
1 | ||
| 84250-0R310 |
AXAA5#,AXAH54,AXAL54..M STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84250-0R260 |
AXAA5#,AXAH54,AXAL54..M,X |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0R030 |
AXAH54..M;AXAA54..M..CND;AXAH54..G..USA;AXAA54..(G,M)..USA;AXAA52,AXAL54..G,M STEERING WHEEL-LEATHER & WITH(STEERING HEATER) |
1 | ||
| 84308-06040 |
AXAA52,AXAL54;AXAA54,AXAH54..M,V,X;AXAA54,AXAH54..G..USA |
1 | ||
| 84308-0R030 |
AXAA54,AXAH54..G..CND |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-06010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-0R040 |
AXAA5#,AXAH54..(G,M,V)..CND |
1 | ||
| 84329-0R030 |
AXAA5#,AXAH54..X..CND |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06050 |
AXAA5#,AXAH54,AXAL54..X KEY PLATE-FOR SMART ENTRY |
1 | ||
| 84450-06050 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0R120 |
AXAA5#,AXAH54..(M,X)..CND |
1 | ||
| 84652-0R130 |
AXAA54,AXAH54..(G,V)..CND |
1 | ||
| 84652-0R130 |
AXAA5#,AXAH54..M..CND WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06040 |
AXAA5#,AXAH54,AXAL54..X KEY PLATE-FOR SMART ENTRY |
1 | ||
| 85432-06040 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-06040 |
AXAA54..G,M,V;AXAA54..X..CND;AXAA52,AXAH54..CND;AXAA52,AXAH54,AXAL54..(G,M)..USA |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
