AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA5#

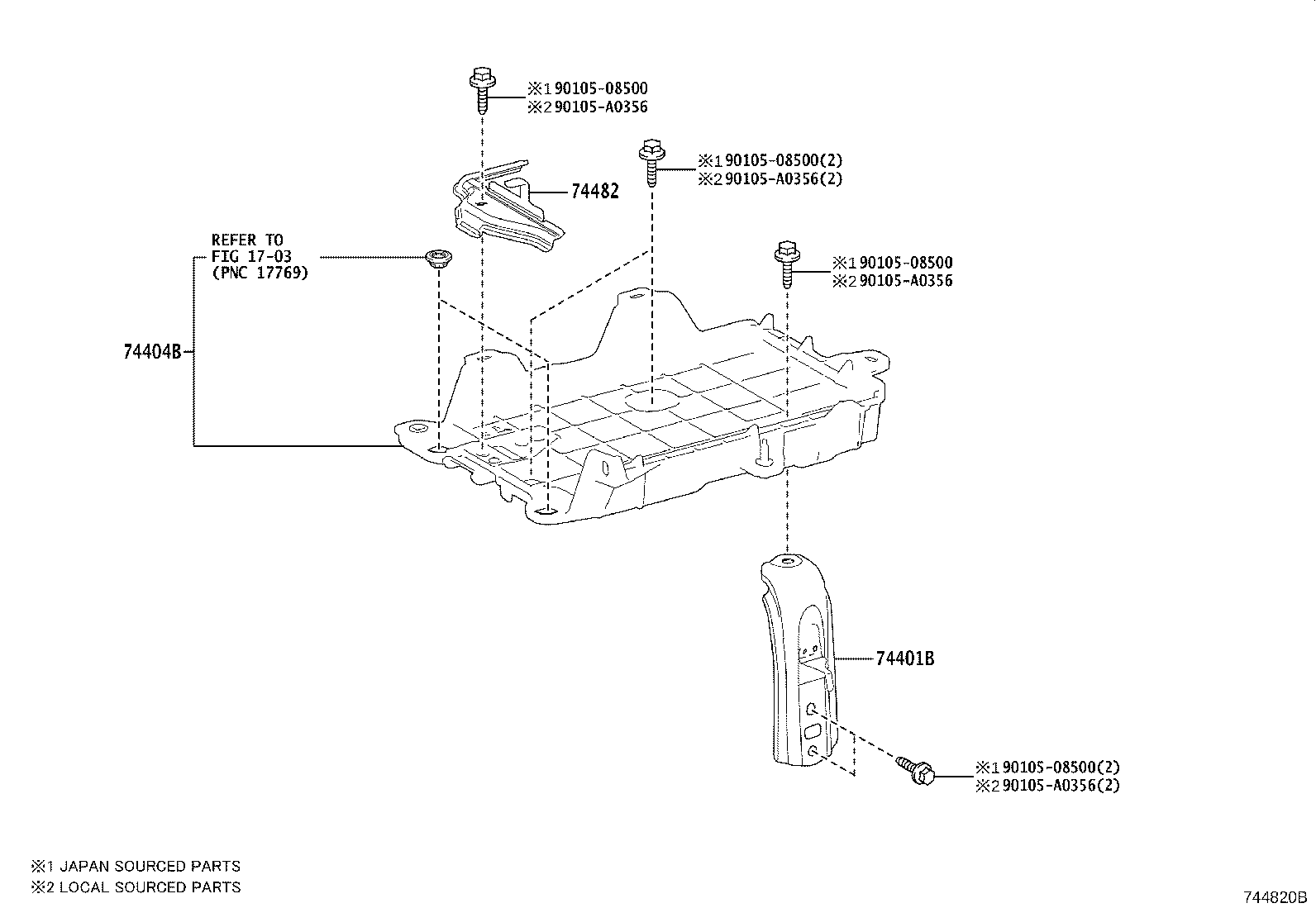

Click highlighted areas on diagram

diagram 1703 74401B 74404B 74482 9010508500 9010508500 9010508500 9010508500 90105A0356 90105A0356 90105A0356 90105A0356
Part # Description Qty Price
74401B - BRACKET SUB-ASSY, BATTERY CARRIER
74401-06010

AXAA5#

 1
74404B - CLAMP SUB-ASSY, BATTERY
74404-0R060

AXAA5#

 1
74482 - CLAMP, BATTERY, NO.2
74482-06050

AXAA5#

 1
Common parts
90105-08500
90105-A0356
Linked diagrams
1703
