AXAA54L-CNZGBK (2018)
Toyota Rav4 (Nap)
ILLUST NO. 1 OF 2(1812- )
FRONT SIDE MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-0R020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-0R020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-0R900 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-0R900 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57023-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57024-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-06040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-06050 |
AXAA5#,AXAH54 |
1 | ||
| 57112-06051 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-0R060 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-0R090 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90467-09075 | ||||
| 91672-L1022 | ||||
| Linked diagrams | ||||
| 5752 | ||||

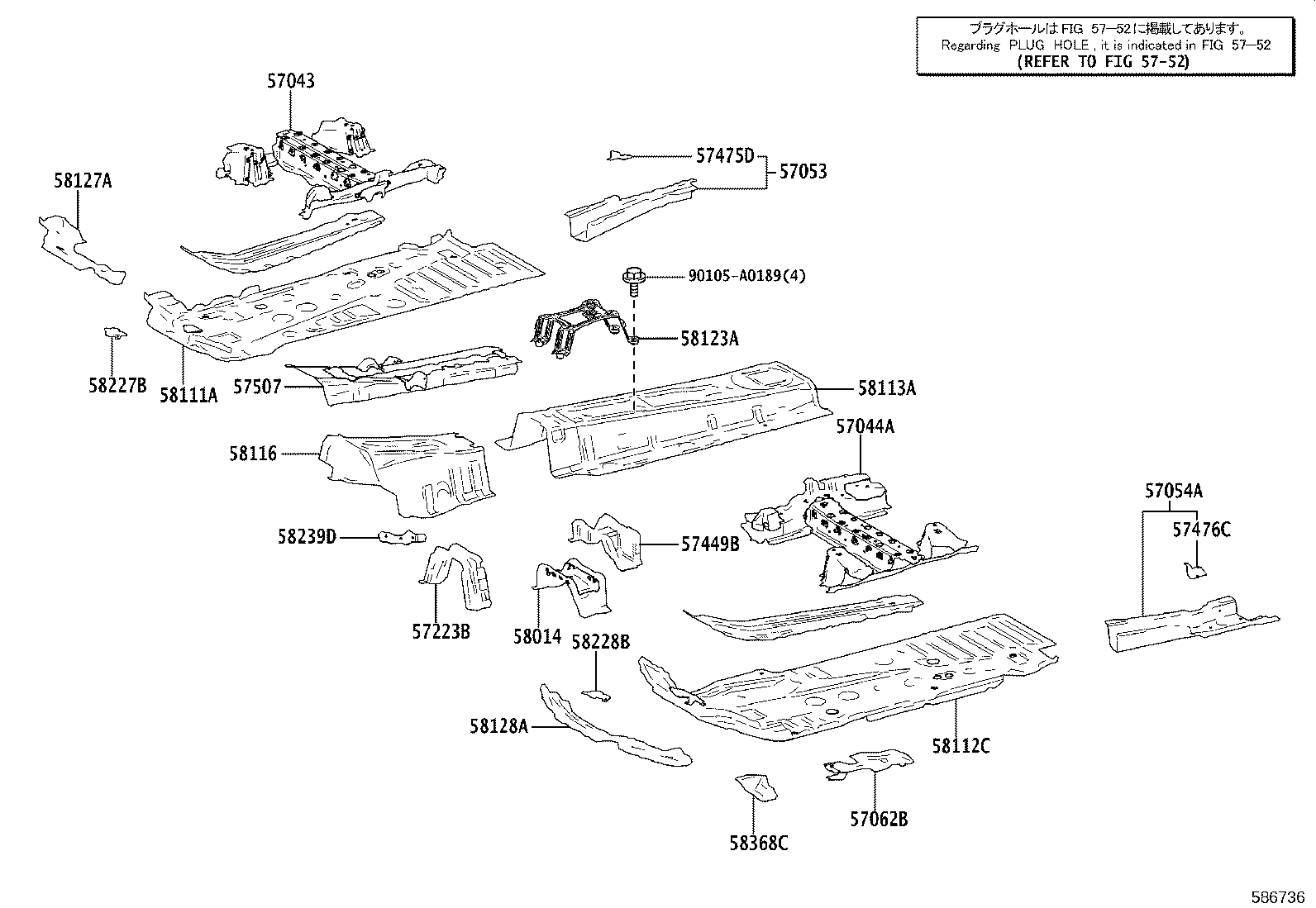

ILLUST NO. 2 OF 2(1812- )AXAA5#
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-0R030 |
AXAA5# |
1 | ||
| 57062B - BRACKET SUB-ASSY, FUEL TANK SUPPORT, LH | ||||
| 57062-0R010 |
AXAA5# |
1 | ||
| 57223B - BRACKET, FRONT MOUNTING | ||||
| 57225-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57449B - RETAINER, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57449-0R010 |
AXAA5# |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57476C - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57507 - REINFORCEMENT SUB-ASSY, PARKING BRAKE | ||||
| 58107-0R010 |
AXAA5# |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-0R040 |
AXAA5# |
1 | ||
| 58116 - PLATE, SHIFT CABLE MOUNTING | ||||
| 58116-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | ||||
| 58127-0R011 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58127-0R010 |
AXAA5#,AXAH54 |
1 | ||
| 58128A - REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH | ||||
| 58128-0R030 |
AXAA5#,AXAH54 |
1 | ||
| 58128-0R031 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58227B - PLATE, FRONT FLOOR PANEL SIDE, RH | ||||
| 55238-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58228B - PLATE, FRONT FLOOR PANEL SIDE, LH | ||||
| 55239-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58239D - BRACKET, CABLE CLAMP | ||||
| 58239-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58368C - BRACKET, FUEL TUBE, NO.3 | ||||
| 58368-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90105-A0189 | ||||
| Linked diagrams | ||||
| 5752 | ||||
