AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA5#

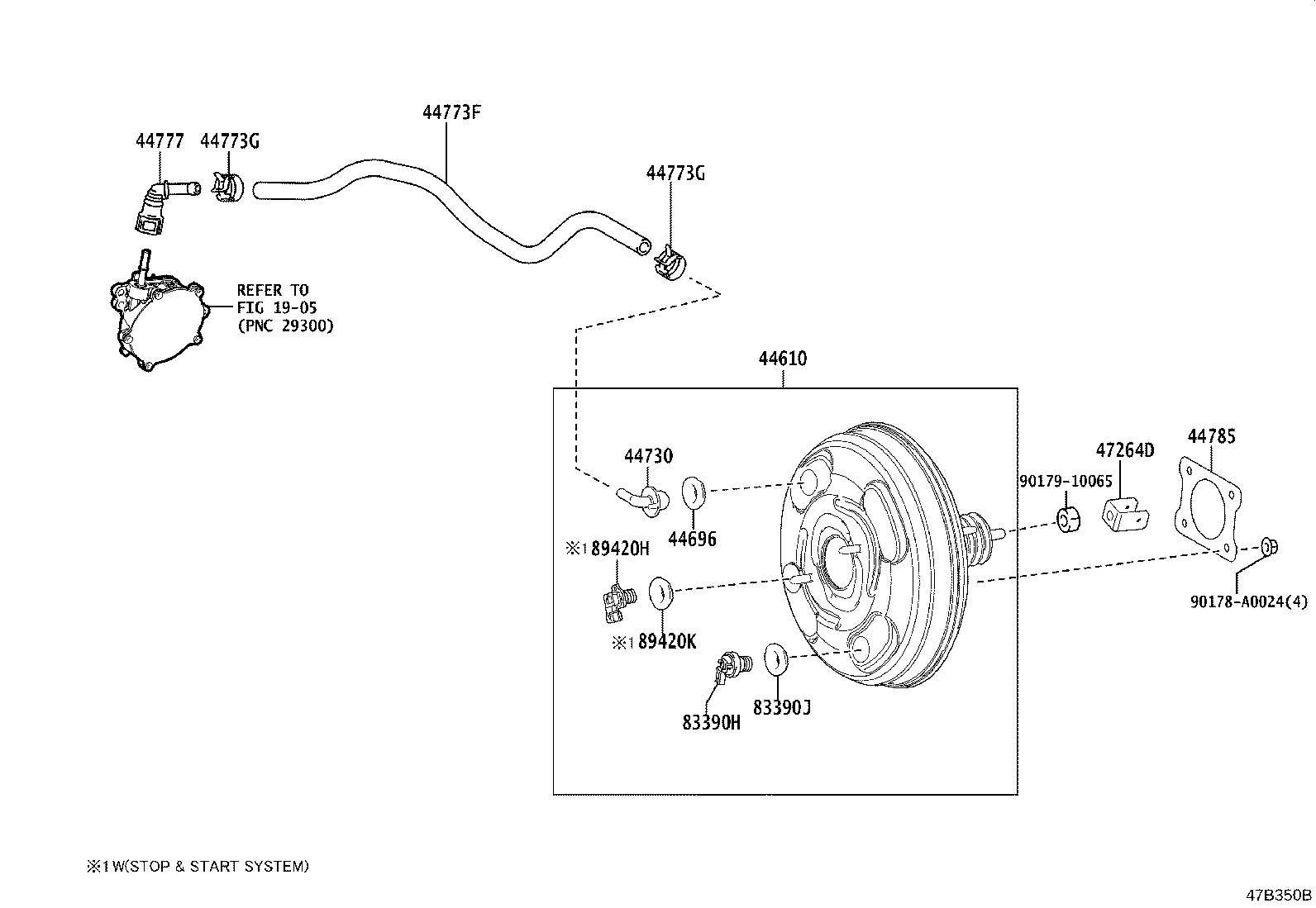

Click highlighted areas on diagram

diagram 1905 44610 44696 44730 44773F 44773G 44773G 44777 44785 47264D 83390H 83390J 89420H 89420K 90178A0024 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0R120

AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND

 1
44696 - GROMMET, CHECK VALVE
90080-48071

AXAA5#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010

AXAA5#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0R020

AXAA5#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

AXAA5#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

AXAA5#

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-06010

AXAA5#

 1
44785 - GASKET, BRAKE BOOSTER
44785-02060

AXAA5#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0R020

AXAA5#

 1
47264-42020

AXAA5#

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

AXAA5#

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90080-48071

AXAA5#

 1
Common parts
90178-A0024
90179-10065
Linked diagrams
1905
