AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA5#

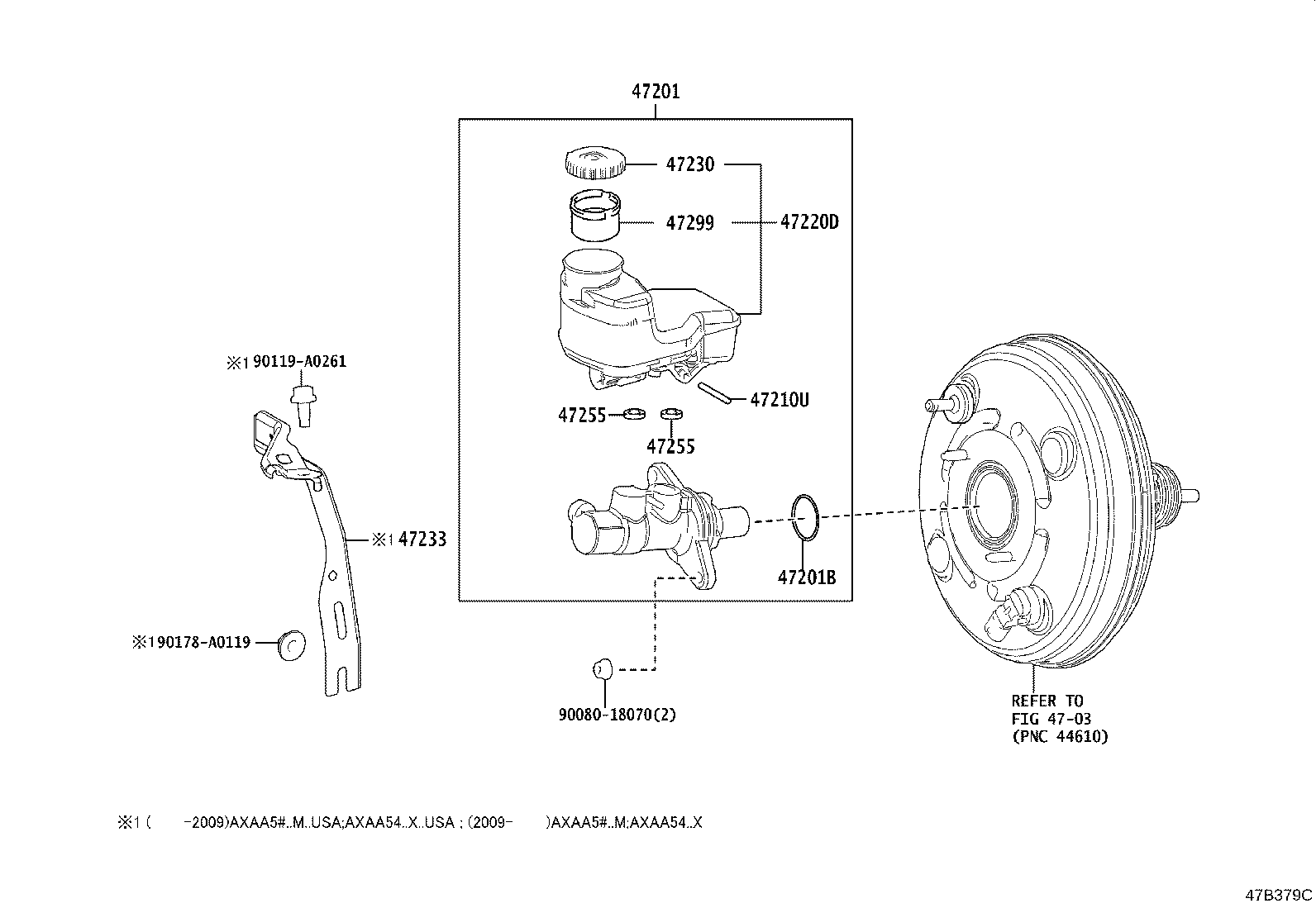

Click highlighted areas on diagram

diagram 4703 47201 47201B 47210U 47220D 47230 47233 47255 47255 47299 9008018070 90119A0261 90178A0119
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0R130

AXAA5#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

AXAA5#

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-15803

AXAA5#

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-0R090

AXAA5#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

AXAA5#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

AXAA5#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

AXAA5#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

AXAA5#

 1
Common parts
90080-18070
90119-A0261
90178-A0119
Linked diagrams
4703
