AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

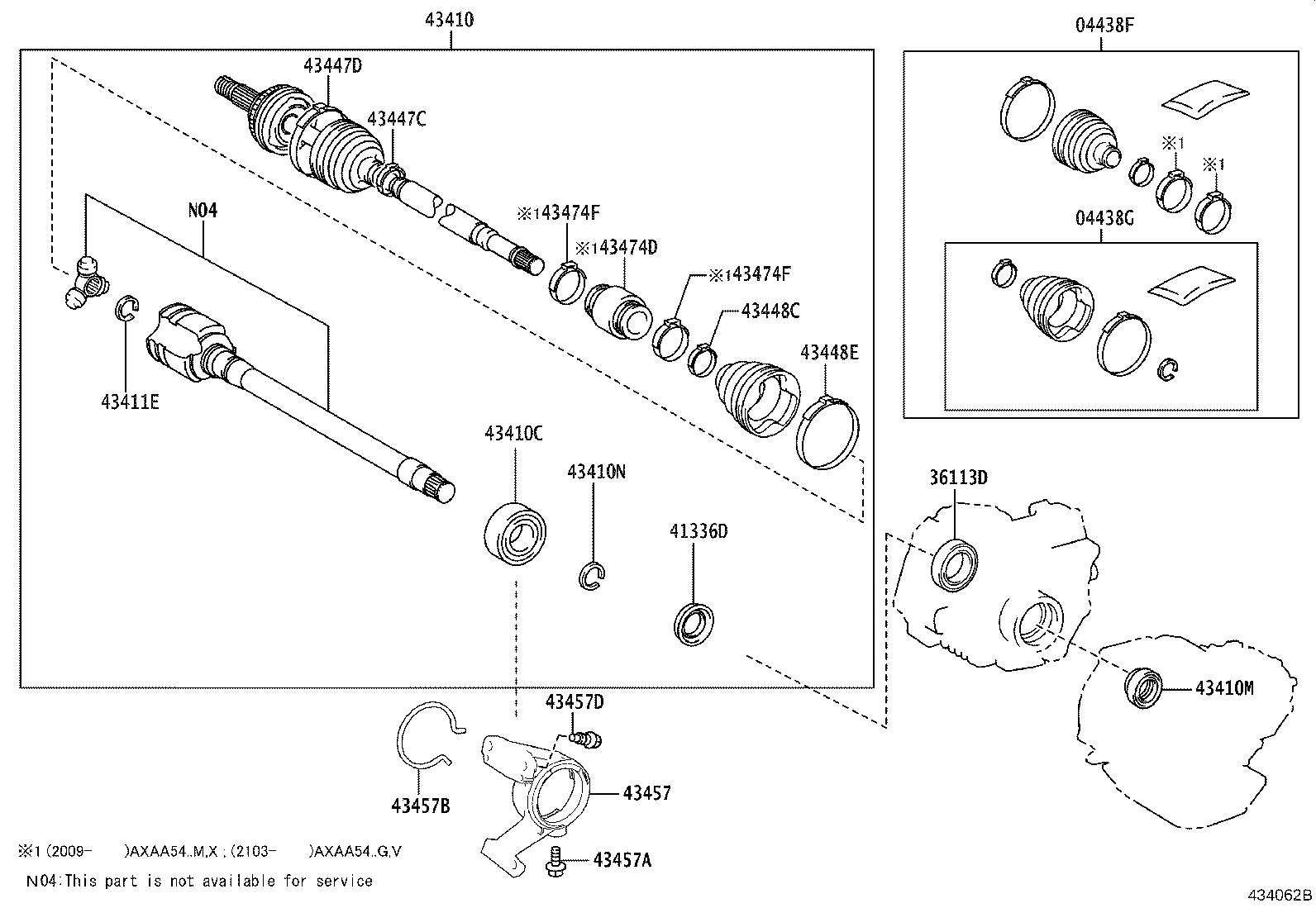

ILLUST NO. 1 OF 2(1812- )AXAA54

Click highlighted areas on diagram

RH

diagram 04438F 04438G 36113D 41336D 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43474D 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-0R150

AXAA5#,AXAH54,AXAL54

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-0R066

AXAA5#,AXAH54,AXAL54

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

AXAA54

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-0R010

AXAA54

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0R201

AXAA54..G,V

 1
43410-0R191

AXAA54..M,X

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-A0017

AXAA54

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

AXAA54

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-0R050

AXAA54

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0R030

AXAA5#,AXAH54,AXAL54

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0R040

AXAA5#,AXAH54,AXAL54

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0R030

AXAA5#,AXAH54,AXAL54

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0R080

AXAA5#,AXAH54,AXAL54

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06A10

AXAA5#,AXAH54,AXAL54

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42190

AXAA54

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

AXAA54

*10-1.25PX19.8-8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

AXAA54

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90080-10087

AXAA5#,AXAH54,AXAL54

 3
