AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA54..M,X

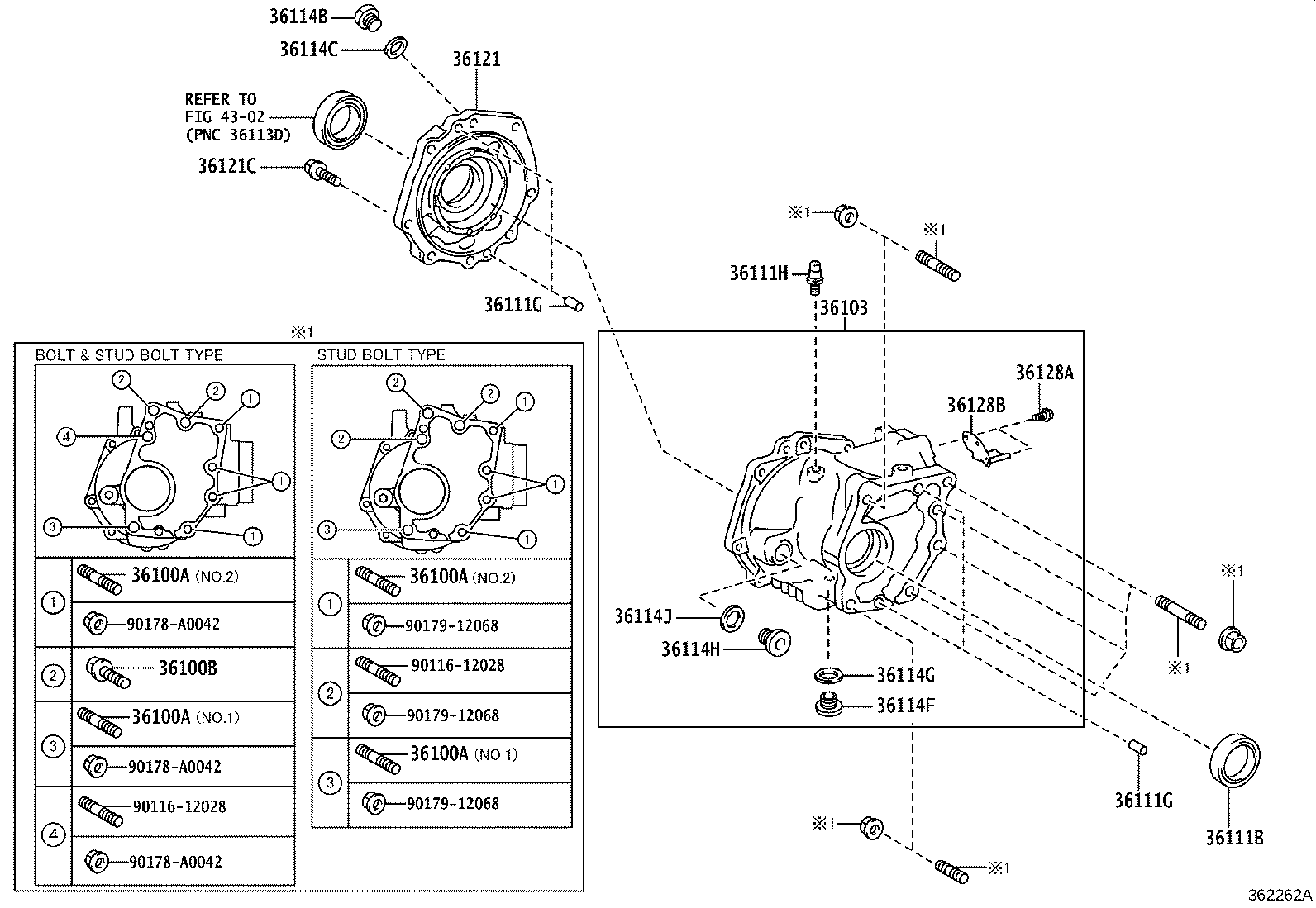

Click highlighted areas on diagram

diagram 36100A 36100A 36100A 36100A 36100B 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114H 36114J 36121 36121C 36128A 36128B 4302 9011612028 9011612028 90178A0042 90178A0042 90178A0042 9017912068 9017912068 9017912068
Part # Description Qty Price
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

AXAA54..M,X

*12-1.25PX53-35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-52030

AXAA54..M,X

 1
36103-42070

AXAA54..M,X

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

AXAA54

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AXAA54..M,X

L=20,OD=10

 4
90250-10017

AXAA54..G,V

L=20,OD=10

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AXAA54..M,X

L=20,OD=10

 4
90250-10017

AXAA54..G,V

L=20,OD=10

 2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

AXAA54..M,X

 1
90930-03031

AXAA54..G,V

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

AXAA54

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

AXAA54

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

AXAA54..G,V

 1
90341-18035

AXAA54..G,V

 1
90341-18051

AXAA54..M,X

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

AXAA54..M,X

 1
12157-10010

AXAA54..G,V

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

AXAA54..M,X

 1
90341-18023

AXAA54..G,V

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

AXAA54..G,V

 1
12157-10010

AXAA54..M,X

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

AXAA54..M,X

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

AXAA54..M,X

 8
91552-81035

AXAA54..G,V

NO.1:REFER ILLUST.

 5
91552-81035

AXAA54..G,V

NO.1 & NO.2

 8
91552-81030

AXAA54..G,V

NO.2:REFER ILLUST.

 3
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

AXAA54..M,X

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

AXAA54..M,X

 1
Common parts
90116-12028
90178-A0042
90179-12068
Linked diagrams
4302

(1812- )AXAA54..G,V

Click highlighted areas on diagram

diagram 31364D 33309B 33621F 3608 36100A 36100A 36100A 36111B 36111G 36111G 36111H 36111X 36113C 36114B 36114C 36114F 36114G 36114G 36114H 36114J 36121C 36121C 4123142010 8271542P30 8271542P71 8271542P80 8271542P90 90119A0127 9017912068 9017912068 9017912068 9017918020 9036630120 9056026016 9155180814 9155180814 9155180814 9167180820
Part # Description Qty Price
31364D - WIRE, CLUTCH CONTROL SOLENOID
31364-42010

AXAA54..G,V

 1
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-42010

AXAA54..G,V

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

AXAA54..G,V

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AXAA54..G,V

S=19 & 19,L=47,NO.2:REFER ILLUST.

 1
90116-12034

AXAA54..M,X

S=19 & 19,L=47,(J),NO.1:SEE ILLUST

 1
90116-12041

AXAA54..G,V

S=30 & 22,L=64,NO.3:REFER ILLUST.

 4
90116-12041

AXAA54..M,X

S=30 & 22,L=64,NO.2:REFER ILLUST.

 4
90116-12028

AXAA54..G,V

S=22 & 22,L=69,NO.1:REFER ILLUST.

 3
90080-11565

AXAA54..M,X

S=19 & 19,L=47,(L),NO.1:SEE ILLUST

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

AXAA54

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AXAA54..M,X

L=20,OD=10

 4
90250-10017

AXAA54..G,V

L=20,OD=10

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AXAA54..M,X

L=20,OD=10

 4
90250-10017

AXAA54..G,V

L=20,OD=10

 2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

AXAA54..M,X

 1
90930-03031

AXAA54..G,V

 1
36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2
90311-37005

AXAA54..G,V

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

AXAA54

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

AXAA54

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

AXAA54..G,V

 1
90341-18035

AXAA54..G,V

 1
90341-18051

AXAA54..M,X

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

AXAA54..M,X

 1
12157-10010

AXAA54..G,V

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

AXAA54..M,X

 1
12157-10010

AXAA54..G,V

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

AXAA54..M,X

 1
90341-18023

AXAA54..G,V

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

AXAA54..G,V

 1
12157-10010

AXAA54..M,X

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

AXAA54..M,X

 8
91552-81035

AXAA54..G,V

NO.1:REFER ILLUST.

 5
91552-81035

AXAA54..G,V

NO.1 & NO.2

 8
91552-81030

AXAA54..G,V

NO.2:REFER ILLUST.

 3
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

AXAA54..M,X

 8
91552-81035

AXAA54..G,V

NO.1:REFER ILLUST.

 5
91552-81035

AXAA54..G,V

NO.1 & NO.2

 8
91552-81030

AXAA54..G,V

NO.2:REFER ILLUST.

 3
Common parts
41231-42010
82715-42P30
82715-42P71
82715-42P80
82715-42P90
90119-A0127
90179-12068
90179-18020
90366-30120
90560-26016
91551-80814
91671-80820
Linked diagrams
3608
