AXAA54L-CNZGBK (2018)
Toyota Rav4 (Nap)
Production
Dec 2018
-
Sep 2020
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

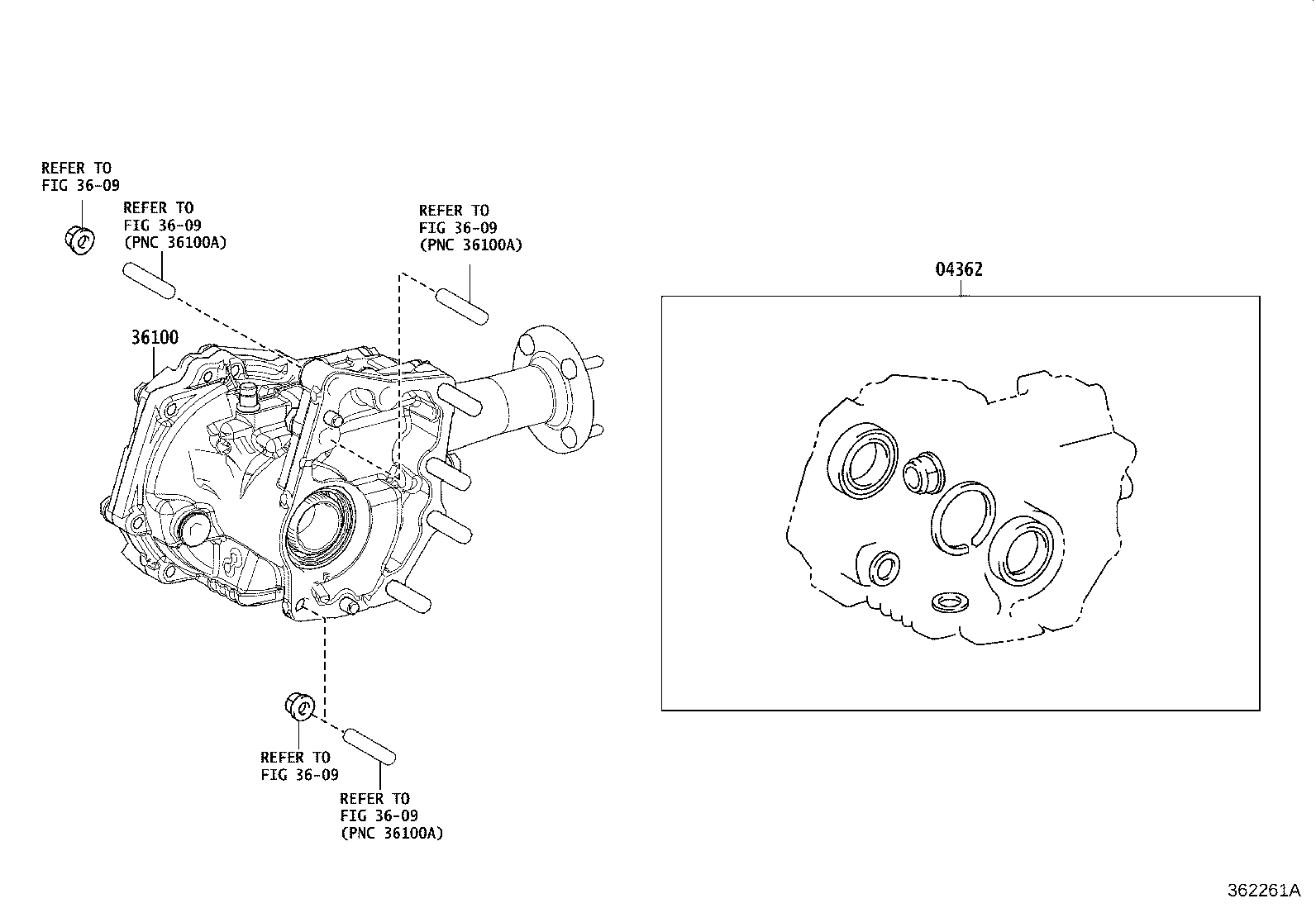

(1812- )AXAA54..M,X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04362 - GASKET KIT, TRANSFER OVERHAUL | ||||
| 04362-42020 |
AXAA54..M,X |
1 | ||
| 36100 - TRANSFER ASSY | ||||
| 36100-42171 |
AXAA54..G,V |
1 | ||
| 36100-42172 |
AXAA54..G,V |
1 | ||
| 36100-42160 |
AXAA54..M,X |
1 | ||
| 36100-42170 |
AXAA54..G,V |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||

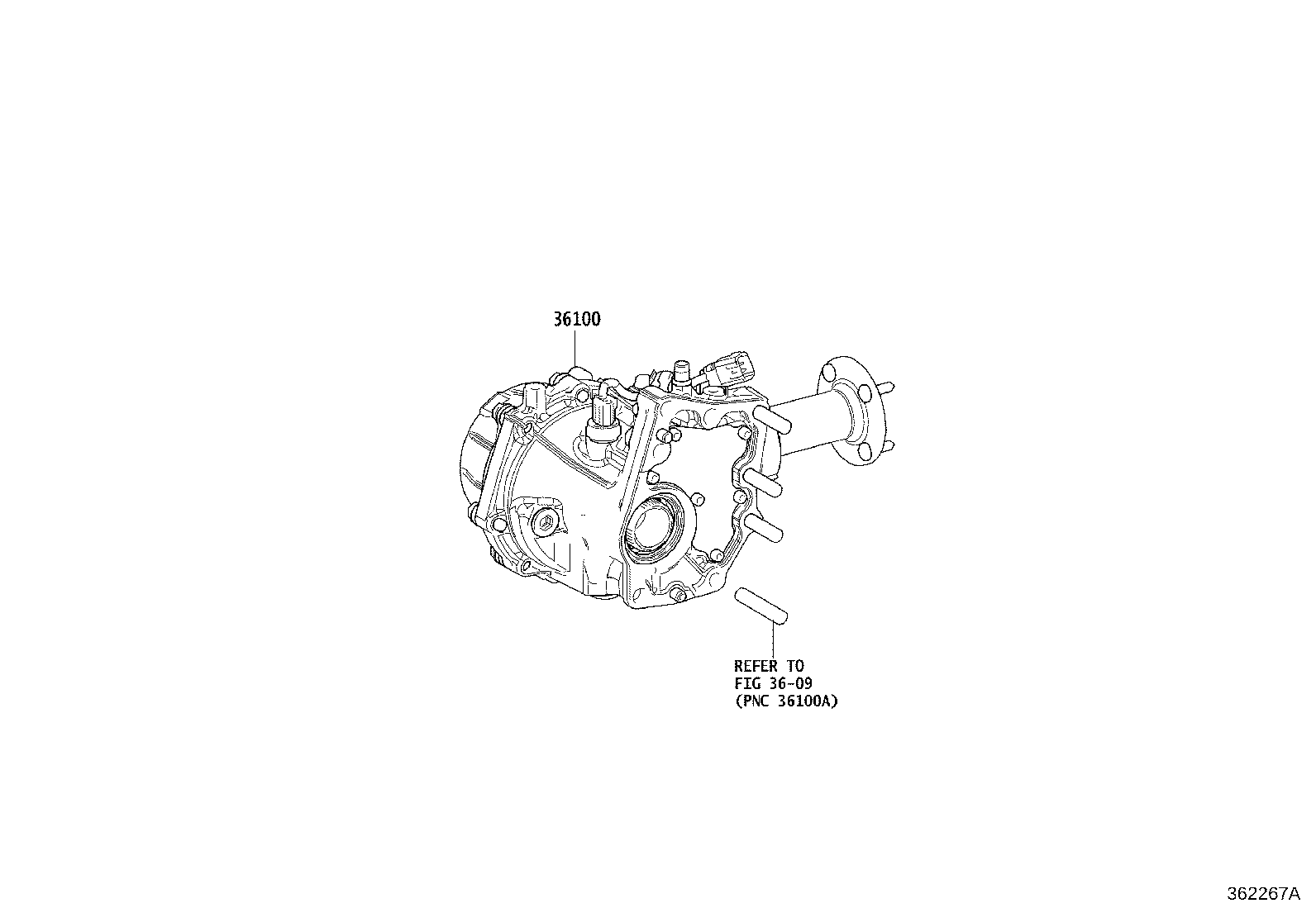

(1812- )AXAA54..G,V
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36100 - TRANSFER ASSY | ||||
| 36100-42171 |
AXAA54..G,V |
1 | ||
| 36100-42172 |
AXAA54..G,V |
1 | ||
| 36100-42160 |
AXAA54..M,X |
1 | ||
| 36100-42170 |
AXAA54..G,V |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
