AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )A25AFKS

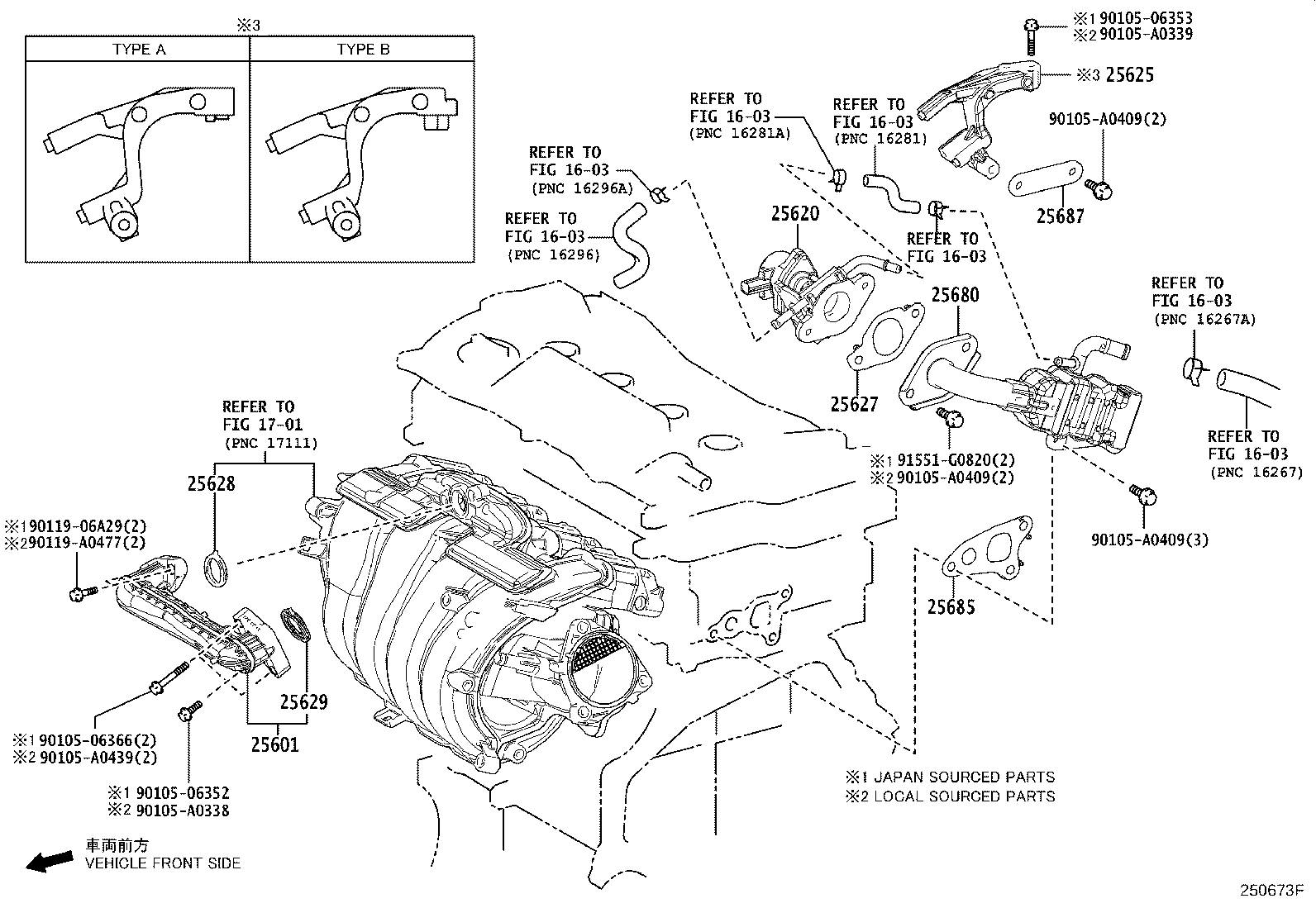

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 25601 25620 25625 25627 25628 25629 25680 25685 25687 9010506352 9010506353 9010506366 90105A0338 90105A0339 90105A0409 90105A0409 90105A0409 90105A0439 9011906A29 90119A0477 91551G0820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25601-25011

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
25620 - VALVE ASSY, EGR
25620-25040

A25AFKS..AXAA5#

*628

 1
25620-25040

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
25620-F0020

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25625 - BRACKET, EGR VALVE
25625-F0010

A25#..AXAA5#,AXAH54

*628T/P A:REF.ILLUST

 1
25625-F0020

A25#..AXAA5#,AXAH54,AXAL54

*628T/P B:REF.ILLUST

 1
25625-25030

A25AFKS..AXAA5#

*584T/P B:REF.ILLUST

 1
25625-25010

A25#..AXAA5#,AXAH54

*584T/P A:REF.ILLUST

 1
25625-25030

A25AFKS..AXAA5#

(J),*628

 1
25627 - GASKET, EGR VALVE
25627-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25627-25010

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
25628 - GASKET, EGR INLET
25628-25010

A25AFKS..AXAA5#

*584

 1
25628-25010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010

A25#..AXAA5#,AXAH54,AXAL54

*628,*584

 1
25680 - COOLER ASSY, EGR
25680-25010

A25AFKS..AXAA5#

*584

 1
25680-F0010

A25AFKS..AXAA5#

*628

 1
25685 - GASKET, EGR COOLER, NO.1
25685-25011

A25AFKS..AXAA5#

*584

 1
25685-25011

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-25010

A25AFKS..AXAA5#

*628,*584

 1
Common parts
90105-06352
90105-06353
90105-06366
90105-A0338
90105-A0339
90105-A0409
90105-A0439
90119-06A29
90119-A0477
91551-G0820
Linked diagrams
1603
1701
