Toyota Rav4 (nap) AXAA54 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
US
RAV4 (NAP)
AXAA54L-CNZGBK (2018)
1603 - RADIATOR & WATER OUTLET

AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020

Engine A25AFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

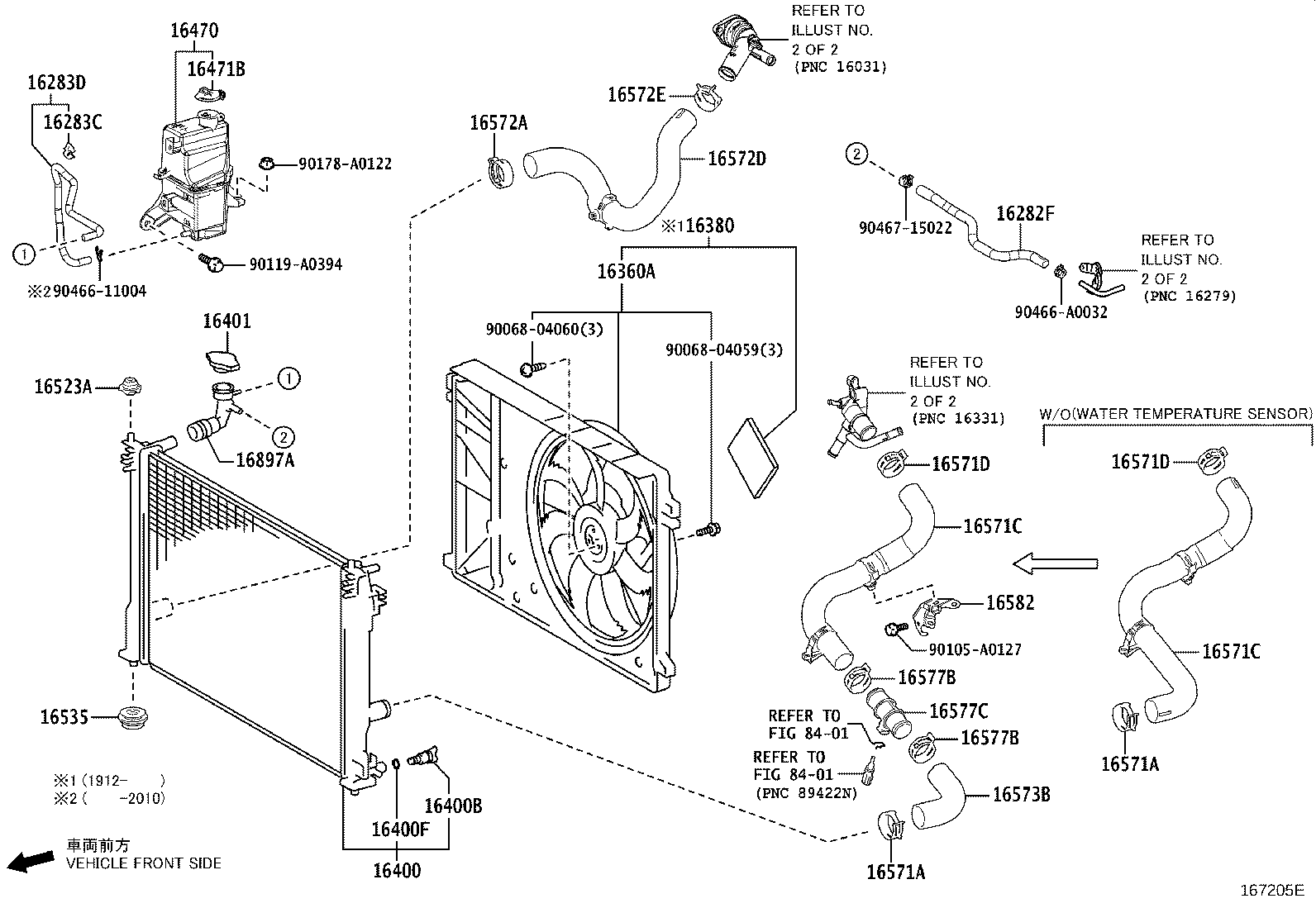

ILLUST NO. 1 OF 2(1812- )A25AFKS

Click highlighted areas on diagram

RADIATOR SIDE

Part #	Description	Period	Qty
16282F - HOSE, WATER BY-PASS, NO.5
16282-F0140	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90469-12014	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16283D - HOSE, WATER BY-PASS, NO.6
16283-F0060	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16360A - FAN ASSY, W/MOTOR
16360-0P170	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16380 - BRACKET ASSY, FAN
16380-0P010	A25AFKS..AXAA5#	12/2019 - 09/2020	1
16400 - RADIATOR ASSY
16400-F0010	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0C180	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16401 - CAP SUB-ASSY, RADIATOR
16401-36030	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-F0020	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16471B - CAP, RESERVE TANK
16405-F0030	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16523A - CUSHION, RADIATOR SUPPORT
16523-F0020	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	2
16535 - SUPPORT, RADIATOR, LOWER
16535-0V010	A25AFKS..AXAA5#	12/2018 - 09/2020	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0038	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0038	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16571C - HOSE, RADIATOR, NO.1
16571-F0120	A25AFKS..AXAA5#..M,X	12/2018 - 09/2020	1
16571-F0220	A25AFKS..AXAA5#..G,V	12/2018 - 09/2020	1
16571C - HOSE, RADIATOR, NO.1
16571-F0120	A25AFKS..AXAA5#..M,X	12/2018 - 09/2020	1
16571-F0220	A25AFKS..AXAA5#..G,V	12/2018 - 09/2020	1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-A0037	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-A0037	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0038	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16572D - HOSE, RADIATOR, NO.2
16572-F0090	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-A0037	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16573B - HOSE, RADIATOR, NO.3
16573-F0090	A25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54	12/2018 - 09/2020	1
16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
90466-A0037	A25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54	12/2018 - 09/2020	2
16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
90466-A0037	A25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54	12/2018 - 09/2020	2
16577C - PIPE, RADIATOR
16577-F0090	A25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54	12/2018 - 09/2020	1
16582 - BRACKET, RADIATOR, NO.1
16582-F0010	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16897A - NECK, FILLER
16897-F0040	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
Common parts
90068-04059
90068-04060
90105-A0127
90119-A0394
90178-A0122
90466-11004
90466-A0032
90467-15022
Linked diagrams
8401

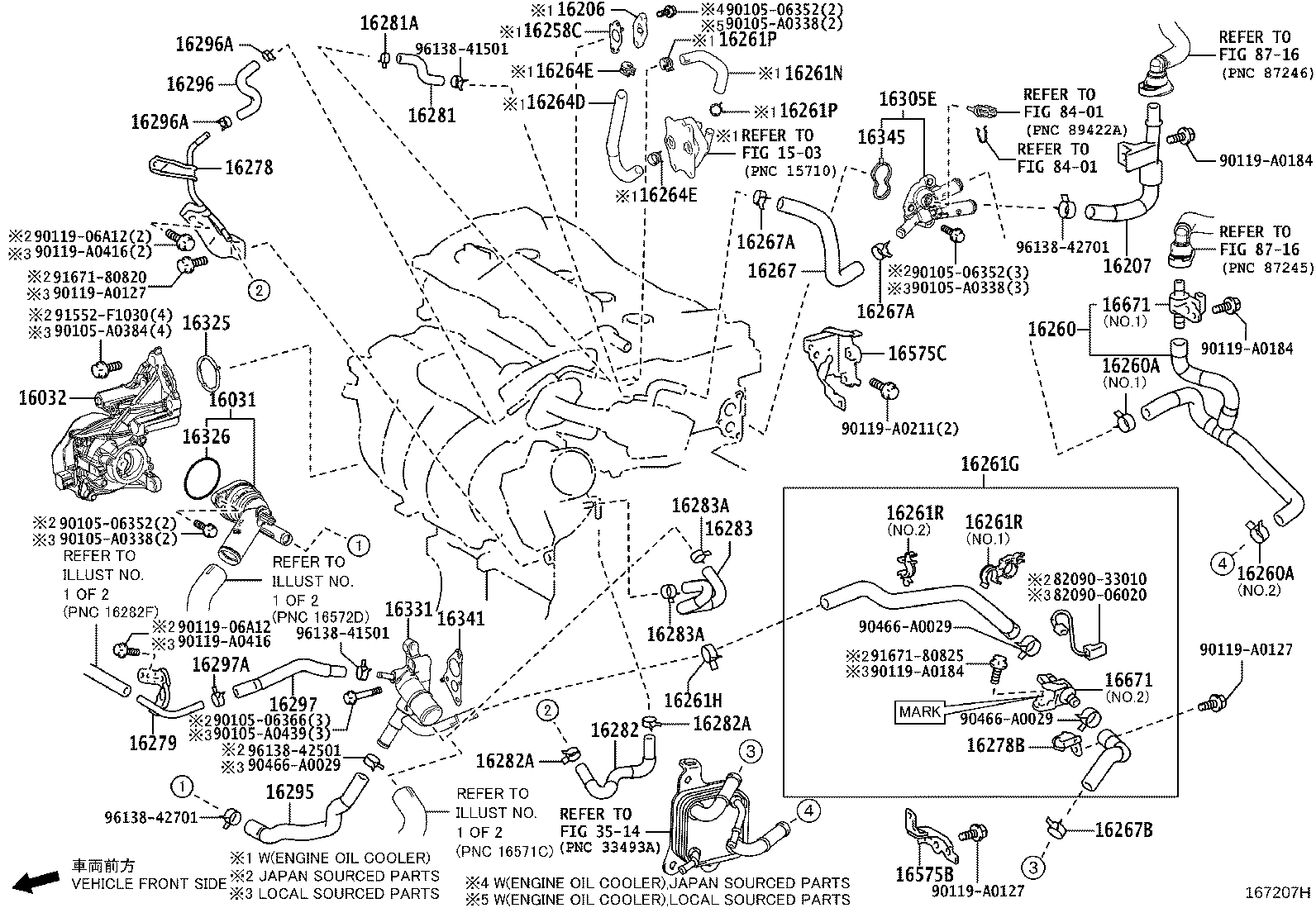

ILLUST NO. 2 OF 2(1812- )A25AFKS

Click highlighted areas on diagram

ENGINE SIDE

Part #	Description	Period	Qty
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-25010	A25#..AXAA5#,AXAH54 628,584	12/2018 - 09/2019	1
16031-25011	A25#..AXAA5#,AXAH54,AXAL54 *584	10/2019 - 09/2020	1
16031-25011	A25#..AXAA5#,AXAH54,AXAL54 *628	10/2019 - 09/2020	1
16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP
16032-25010	A25#..AXAA5#,AXAH54,AXAL54 *584	12/2018 - 09/2020	1
16032-F0010	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-F0010	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
16260 - HOSE ASSY, WATER BY-PASS
16260-F0010	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16260A - CLIP(FOR WATER BY-PASS HOSE ASSY)
90466-A0029	A25AFKS..AXAA5# NO.2:REFER ILLUST.	12/2018 - 09/2020	1
96138-42701	A25AFKS..AXAA5# NO.1:REFER ILLUST.	12/2018 - 09/2020	1
16260A - CLIP(FOR WATER BY-PASS HOSE ASSY)
90466-A0029	A25AFKS..AXAA5# NO.2:REFER ILLUST.	12/2018 - 09/2020	1
96138-42701	A25AFKS..AXAA5# NO.1:REFER ILLUST.	12/2018 - 09/2020	1
16261G - HOSE, WATER BY-PASS, NO.1
16261-F0012	A25AFKS..AXAA5#	04/2020 - 09/2020	1
16261-F0010	A25AFKS..AXAA5#	12/2018 - 04/2020	1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42201	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16581-25081	A25AFKS..AXAA5# NO.2:REFER ILLUST.	12/2018 - 09/2020	1
16581-F0070	A25AFKS..AXAA5# NO.1:REFER ILLUST.	12/2018 - 09/2020	1
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16581-25081	A25AFKS..AXAA5# NO.2:REFER ILLUST.	12/2018 - 09/2020	1
16581-F0070	A25AFKS..AXAA5# NO.1:REFER ILLUST.	12/2018 - 09/2020	1
16267 - HOSE, WATER BY-PASS, NO.3
16267-25010	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96138-42101	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
96138-42101	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96138-42101	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
96138-42101	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0029	A25AFKS..AXAA5#	12/2018 - 09/2020	1
16278 - PIPE, WATER BY-PASS, NO.2
16278-25020	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16278B - BRACKET, WATER BY-PASS PIPE
16575-F0230	A25AFKS..AXAA5# (L)	04/2020 - 09/2020	1
16575-25070	A25AFKS..AXAA5# (J)	12/2018 - 09/2020	1
16279 - PIPE, WATER BY-PASS, NO.3
16279-25010	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-25021	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
16281-25021	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	1
16282 - HOSE, WATER BY-PASS, NO.5
16282-25030	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
16283 - HOSE, WATER BY-PASS, NO.6
16283-25010	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
16295 - HOSE, WATER BY-PASS, NO.7
16295-25010	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
16295-25010	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	1
16296 - HOSE, WATER BY-PASS, NO.8
16296-25010	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96138-41501	A25AFKS..AXAA5# *584	12/2018 - 09/2020	2
96138-41501	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	2
16297 - HOSE, WATER BY-PASS, NO.9
16297-25010	A25AFKS..AXAA5# 628,584	12/2018 - 09/2020	1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90467-15022	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
90467-15022	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	1
16305E - OUTLET SUB-ASSY, WATER BY-PASS
16305-25030	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
16305-F0010	A25AFKS..AXAA5# *628	12/2018 - 09/2020	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-25010	A25#..AXAA5#,AXAH54,AXAL54 628,584	12/2018 - 09/2020	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47020	A25#..AXAA5#,AXAH54,AXAL54 628,584	12/2018 - 09/2020	1
16331 - OUTLET, WATER
16331-25021	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
16331-F0011	A25AFKS..AXAA5# *628	12/2018 - 09/2020	1
16341 - GASKET, WATER OUTLET
16341-F0010	A25#..AXAA5#,AXAH54,AXAL54 *628	12/2018 - 09/2020	1
16341-25010	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
16345 - GASKET, WATER OUTLET PIPE
16345-F0010	A25AFKS..AXAA5# *628	12/2018 - 09/2020	1
16345-25020	A25AFKS..AXAA5# *584	12/2018 - 09/2020	1
16575B - BRACKET, WATER HOSE CLAMP, NO.2
16575-F0080	A25AFKS..AXAA5# (L)	11/2019 - 09/2020	1
16575-F0080	A25AFKS..AXAA5#	12/2018 - 11/2019	1
16575-25040	A25AFKS..AXAA5# (J)	11/2019 - 09/2020	1
16575C - BRACKET, WATER HOSE CLAMP, NO.1
16575-F0010	A25AFKS..AXAA5#	12/2018 - 11/2019	1
16575-F0010	A25AFKS..AXAA5# (L)	11/2019 - 09/2020	1
16575-25010	A25AFKS..AXAA5# (J)	11/2019 - 09/2020	1
16671 - VALVE, WATER
16671-F0020	A25AFKS..AXAA5# (L),NO.1:SEE ILLUST	12/2018 - 09/2020	1
16671-24020	A25AFKS..AXAA5# NO.2:REFER ILLUST.	12/2018 - 07/2019	1
16671-F2020	A25AFKS..AXAA5# MARK S****,NO.2	07/2019 - 09/2020	1
16671-25010	A25AFKS..AXAA5# (J),NO.1:SEE ILLUST	12/2018 - 09/2020	1
16671-24020	A25AFKS..AXAA5# MARK A****,NO.2	07/2019 - 09/2020	1
16671 - VALVE, WATER
16671-F0020	A25AFKS..AXAA5# (L),NO.1:SEE ILLUST	12/2018 - 09/2020	1
16671-24020	A25AFKS..AXAA5# NO.2:REFER ILLUST.	12/2018 - 07/2019	1
16671-F2020	A25AFKS..AXAA5# MARK S****,NO.2	07/2019 - 09/2020	1
16671-25010	A25AFKS..AXAA5# (J),NO.1:SEE ILLUST	12/2018 - 09/2020	1
16671-24020	A25AFKS..AXAA5# MARK A****,NO.2	07/2019 - 09/2020	1
Common parts
82090-06020
82090-33010
90105-06352
90105-06366
90105-A0338
90105-A0384
90105-A0439
90119-06A12
90119-A0127
90119-A0184
90119-A0211
90119-A0416
90466-A0029
91552-F1030
91671-80820
91671-80825
96138-41501
96138-42501
96138-42701
Linked diagrams
1503
3514
8401
8716

AXAA54L-CNZGBK (2018)

ILLUST NO. 1 OF 2(1812- )A25AFKS

ILLUST NO. 2 OF 2(1812- )A25AFKS
