AXAA54L-CNZGBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )A25AFKS

Click highlighted areas on diagram

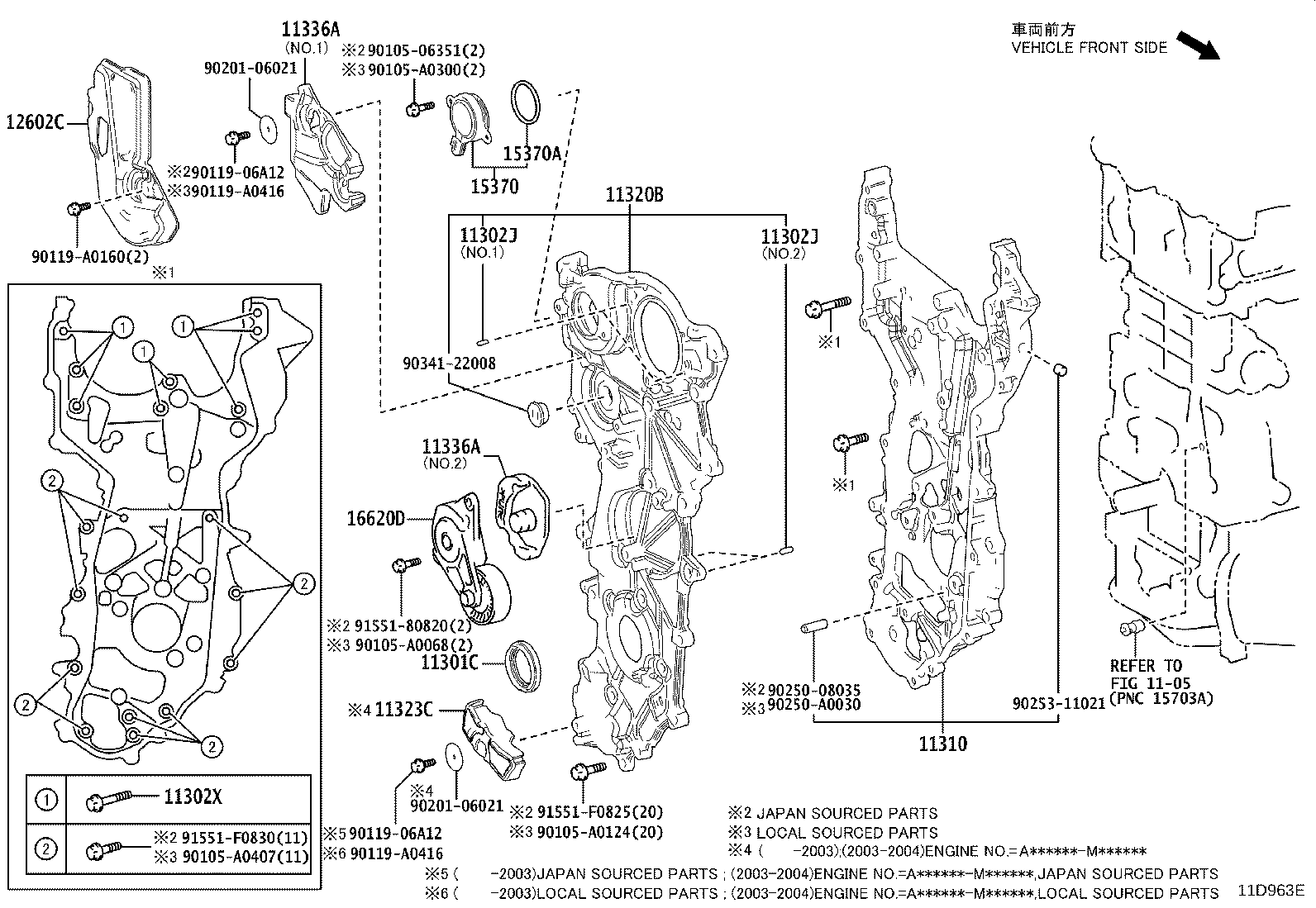

diagram 1105 11301C 11302J 11302J 11302X 11310 11320B 11323C 11336A 11336A 12602C 15370 15370A 16620D 9010506351 90105A0068 90105A0124 90105A0300 90105A0407 9011906A12 9011906A12 90119A0160 90119A0416 90119A0416 9020106021 9020106021 9025008035 90250A0030 9025311021 9034122008 9155180820 91551F0825 91551F0830
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
90311-A0033

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-06003

A25AFKS..AXAA5#

*584,NO.2:REFER ILL.

 2
90250-04097

A25AFKS..AXAA5#

*584,NO.1:REFER ILL.

 2
90250-A0028

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.2:REFER ILL.

 2
90250-A0029

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.1:REFER ILL.

 2
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-06003

A25AFKS..AXAA5#

*584,NO.2:REFER ILL.

 2
90250-04097

A25AFKS..AXAA5#

*584,NO.1:REFER ILL.

 2
90250-A0028

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.2:REFER ILL.

 2
90250-A0029

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.1:REFER ILL.

 2
11302X - BOLT, FLANGE
90105-A0408

A25#..AXAA5#,AXAH54,AXAL54

*628

 8
91551-F0845

A25#..AXAA5#,AXAH54,AXAL54

*584

 8
11310 - COVER ASSY, TIMING CHAIN
11310-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
11310-25030

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
11320B - COVER ASSY, TIMING CHAIN, NO.2
11320-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
11320-25011

A25AFKS..AXAA5#

*584

 1
11320-25010

A25AFKS..AXAA5#

*584

 1
11323C - COVER, TIMING CHAIN, NO.3
11323-F0010

A25AFKS..AXAA5#

*628

 1
11323-25010

A25AFKS..AXAA5#

*584

 1
11336A - INSULATOR, TIMING GEAR COVER
11339-25010

A25AFKS..AXAA5#

*584,NO.2:REFER ILL.

 1
11339-F0010

A25AFKS..AXAA5#

*628,NO.2:REFER ILL.

 1
11336-25010

A25AFKS..AXAA5#

*584,NO.1:REFER ILL.

 1
11336-F0010

A25AFKS..AXAA5#

*628,NO.1:REFER ILL.

 1
11336A - INSULATOR, TIMING GEAR COVER
11339-25010

A25AFKS..AXAA5#

*584,NO.2:REFER ILL.

 1
11339-F0010

A25AFKS..AXAA5#

*628,NO.2:REFER ILL.

 1
11336-25010

A25AFKS..AXAA5#

*584,NO.1:REFER ILL.

 1
11336-F0010

A25AFKS..AXAA5#

*628,NO.1:REFER ILL.

 1
12602C - COVER, ENGINE, NO.2
12612-F0010

A25AFKS..AXAA5#

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-25020

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
15370-F0020

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
90301-T0079

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-F0011

A25AFKS..AXAA5#

*628

 1
16620-25010

A25AFKS..AXAA5#

*584

 1
16620-25011

A25AFKS..AXAA5#

*584

 1
16620-F0012

A25AFKS..AXAA5#

*628

 1
Common parts
90105-06351
90105-A0068
90105-A0124
90105-A0300
90105-A0407
90119-06A12
90119-A0160
90119-A0416
90201-06021
90250-08035
90250-A0030
90253-11021
90341-22008
91551-80820
91551-F0825
91551-F0830
Linked diagrams
1105
