Toyota Rav4 (nap) AXAA54 FUEL TANK & TUBE

AXAA54L-CNZGBA (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020

Engine A25AFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1812- )AXAA5#

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
23070 - VALVE ASSY, FUEL MAIN
23070-25020	A25AFKS..AXAA5#	12/2018 - 09/2020	1
23070A - RING, O, NO.1(FOR FUEL MAIN VALVE)
90301-15024	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
23221 - PUMP, FUEL
23221-25030	A25AFKS..AXAA5#	12/2018 - 09/2020	1
23225A - SPACER, FUEL PUMP
23225-31020	A25#..AXAA5#,AXAH54	12/2018 - 03/2020	1
23225-F0010	A25#..AXAA5#,AXAH54,AXAL54 (L)	03/2020 - 09/2020	1
23225-31020	A25#..AXAA5#,AXAH54,AXAL54 (J)	03/2020 - 09/2020	1
23283B - HOLDER, FUEL PRESSURE REGULATOR
23283-F0010	A25AFKS..AXAA5#	03/2020 - 09/2020	1
77010 - TUBE ASSY, FUEL TANK VENT
77010-0R010	AXAA5#	12/2018 - 09/2020	1
77016H - TUBE SUB-ASSY, FUEL RETURN VENT
77016-0R020	AXAA5#	12/2018 - 09/2020	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0R050	AXAA5#	12/2018 - 09/2020	1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-0R040	AXAA5#	12/2018 - 09/2020	1
77100 - TANK ASSY, FUEL
77001-0R090	AXAA5#	12/2018 - 09/2020	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-06040	AXAA5# (L)	12/2018 - 09/2020	2
77144-30030	AXAA5# (J)	12/2018 - 09/2020	2
77144 - RETAINER, FUEL PUMP GAUGE
77144-06040	AXAA5# (L)	12/2018 - 09/2020	2
77144-30030	AXAA5# (J)	12/2018 - 09/2020	2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0R030	AXAA5#	12/2018 - 09/2020	2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0R030	AXAA5#	12/2018 - 09/2020	2
77173 - BRACKET, FUEL GAGE
77173-0E010	AXAA5#	03/2020 - 09/2020	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-0R010	AXAA5#	12/2018 - 09/2020	1
77209C - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0R060	AXAA5#	12/2018 - 09/2020	1
77210 - PIPE ASSY, FUEL TANK FILLER
77210-0R060	AXAA5#	12/2018 - 09/2020	1
77241W - CLIP, TUBE JOINT
77241-02010	AXAA5#	12/2018 - 09/2020	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-06240	AXAA5#	12/2018 - 09/2020	2
77285D - CLAMP, FUEL TUBE, NO.1
77285-06240	AXAA5#	12/2018 - 09/2020	2
77285H - CLAMP, FUEL TUBE, NO.1
77285-0R100	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77286S - CUSHION, FUEL TANK PROTECTOR
77286-12110	AXAA5#	12/2018 - 09/2020	3
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0R050	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77310A - CAP ASSY, FUEL TANK
77300-07040	AXAA5#	12/2018 - 09/2020	1
77316 - GASKET, FUEL TANK CAP
77316-06090	AXAA5#	12/2018 - 09/2020	1
77391 - RING, FUEL INLET BOX
77391-42010	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77391A - RING, FUEL INLET BOX
77391-12020	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77512C - BRACKET, FUEL TANK
77512-06060	AXAA5#	12/2018 - 09/2020	4
77601E - BAND SUB-ASSY, FUEL TANK
77601-0R040	AXAA5#	12/2018 - 09/2020	2
77601E - BAND SUB-ASSY, FUEL TANK
77601-0R040	AXAA5#	12/2018 - 09/2020	2
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-0R010	AXAA5#	12/2018 - 09/2020	1
77613 - BOLT, FUEL TANK BAND SET
90119-10A05	AXAA5#	12/2018 - 09/2020	4
77613 - BOLT, FUEL TANK BAND SET
90119-10A05	AXAA5#	12/2018 - 09/2020	4
77613 - BOLT, FUEL TANK BAND SET
90119-10A05	AXAA5#	12/2018 - 09/2020	4
77613 - BOLT, FUEL TANK BAND SET
90119-10A05	AXAA5#	12/2018 - 09/2020	4
77641A - PROTECTOR, FUEL TANK, NO.1
77641-0R070	AXAA5#	12/2018 - 09/2020	1
77651A - CUSHION, FUEL TANK, NO.1
77651-06060	AXAA5#	12/2018 - 09/2020	2
77785 - HARNESS, FUEL PUMP
77785-0R040	AXAA5#	12/2018 - 09/2020	1
Common parts
90119-A0396
90182-A0034
90301-A0013
90301-A0021
Linked diagrams
8401

ILLUST NO. 2 OF 3(1812- )AXAA5#

Click highlighted areas on diagram

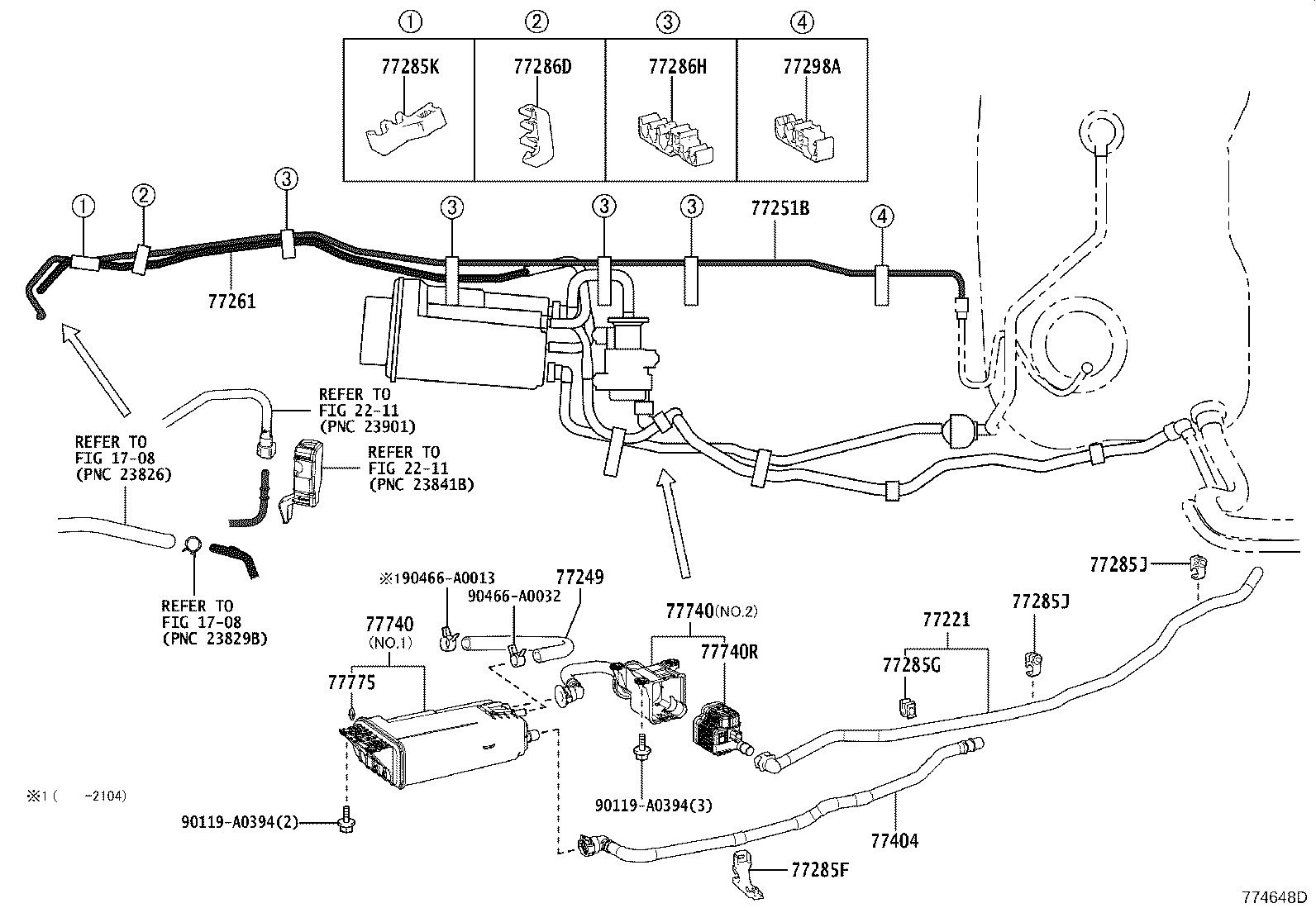

FUEL TUBE

Part #	Description	Period	Qty
77221 - TUBE, FUEL TANK BREATHER, NO.1
77227-0R030	AXAA5#	12/2018 - 09/2020	1
77249 - HOSE, FUEL EMISSION
77249-0R050	AXAA5#	12/2018 - 09/2020	1
77251B - TUBE, FUEL MAIN
77251-0R100	AXAA5#	12/2018 - 09/2020	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-0R090	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0R080	AXAA5#	12/2018 - 09/2020	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-0R070	AXAA5#	12/2018 - 09/2020	1
77285J - CLAMP, FUEL TUBE, NO.1
77285-0R090	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	2
77285J - CLAMP, FUEL TUBE, NO.1
77285-0R090	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	2
77285K - CLAMP, FUEL TUBE, NO.1
77285-0R050	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77286D - CLAMP, FUEL TUBE, NO.2
77285-0R060	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77286H - CLAMP, FUEL TUBE, NO.3
77285-0R040	AXAA5#	12/2018 - 09/2020	4
77298A - CLAMP, FUEL TUBE, NO.4
77298-06290	AXAA5#	12/2018 - 09/2020	1
77404 - HOSE SUB-ASSY, FUEL TANK VENT
77404-0R060	AXAA5#	12/2018 - 09/2020	1
77740 - CANISTER ASSY, CHARCOAL
77740-06230	AXAA5# NO.1:REFER ILLUST.	12/2018 - 09/2020	1
77730-0R010	AXAA5# NO.2:REFER ILLUST.	12/2018 - 09/2020	1
77740 - CANISTER ASSY, CHARCOAL
77740-06230	AXAA5# NO.1:REFER ILLUST.	12/2018 - 09/2020	1
77730-0R010	AXAA5# NO.2:REFER ILLUST.	12/2018 - 09/2020	1
77740R - PUMP SUB-ASSY, LEAK DETECTION
90910-AF006	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77775 - GUIDE, CHARCOAL CANISTER OUTLET
77775-33010	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
Common parts
90119-A0394
90466-A0013
90466-A0032
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(1812- )AXAA5#

Click highlighted areas on diagram

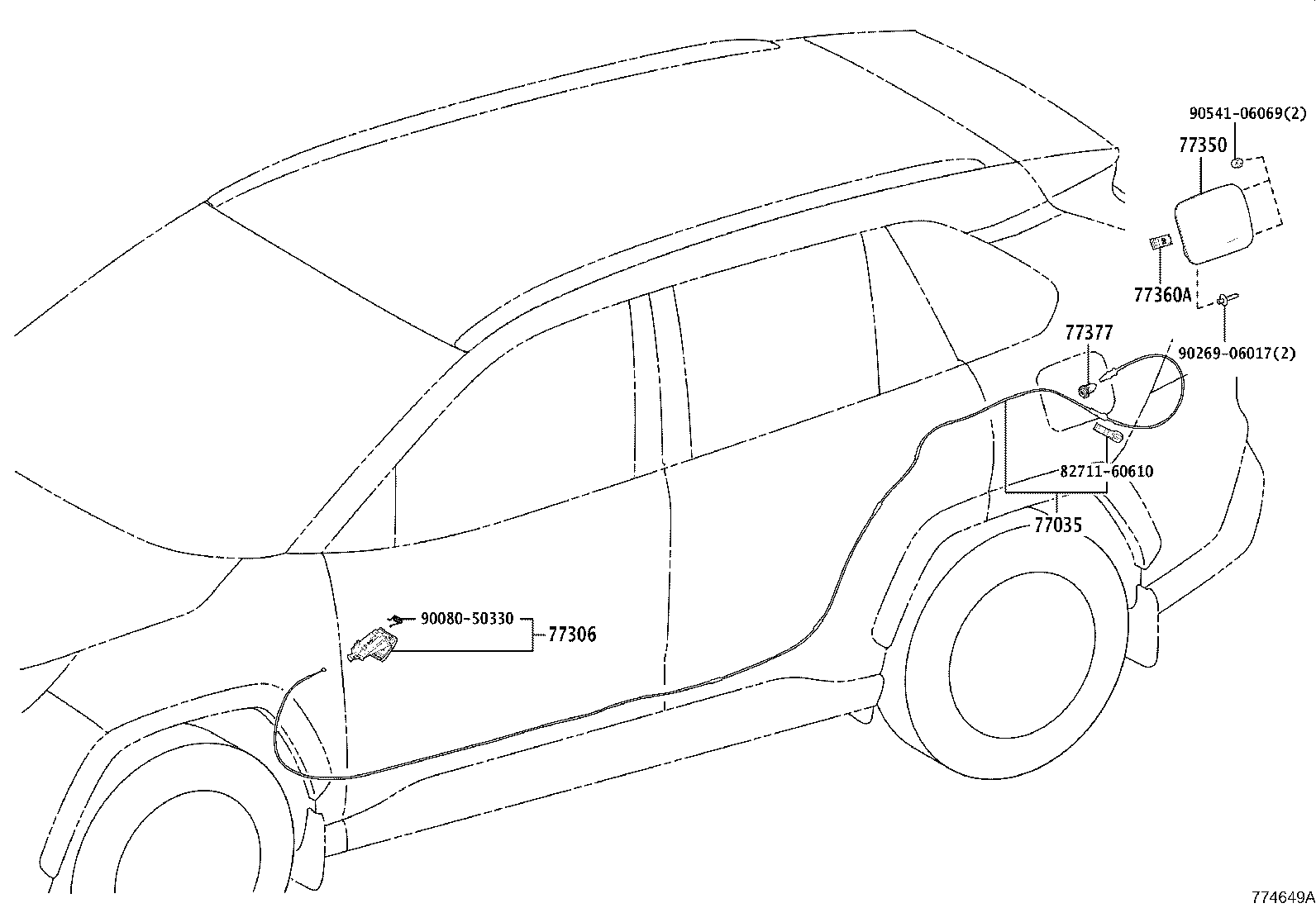

FUEL LID OPENER

Part #	Description	Period	Qty
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0R060	AXAA5#	12/2018 - 09/2020	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0R040C0	AXAA5#..G,M,X BLACK,TRIM1#,2#,4#	12/2018 - 09/2020	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0R050	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-35040	AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0R040	AXAA5#	12/2018 - 09/2020	1
Common parts
82711-60610
90080-50330
90269-06017
90541-06069
