AXAA52L-CNZXBA (2018)
Toyota Rav4 (Nap)

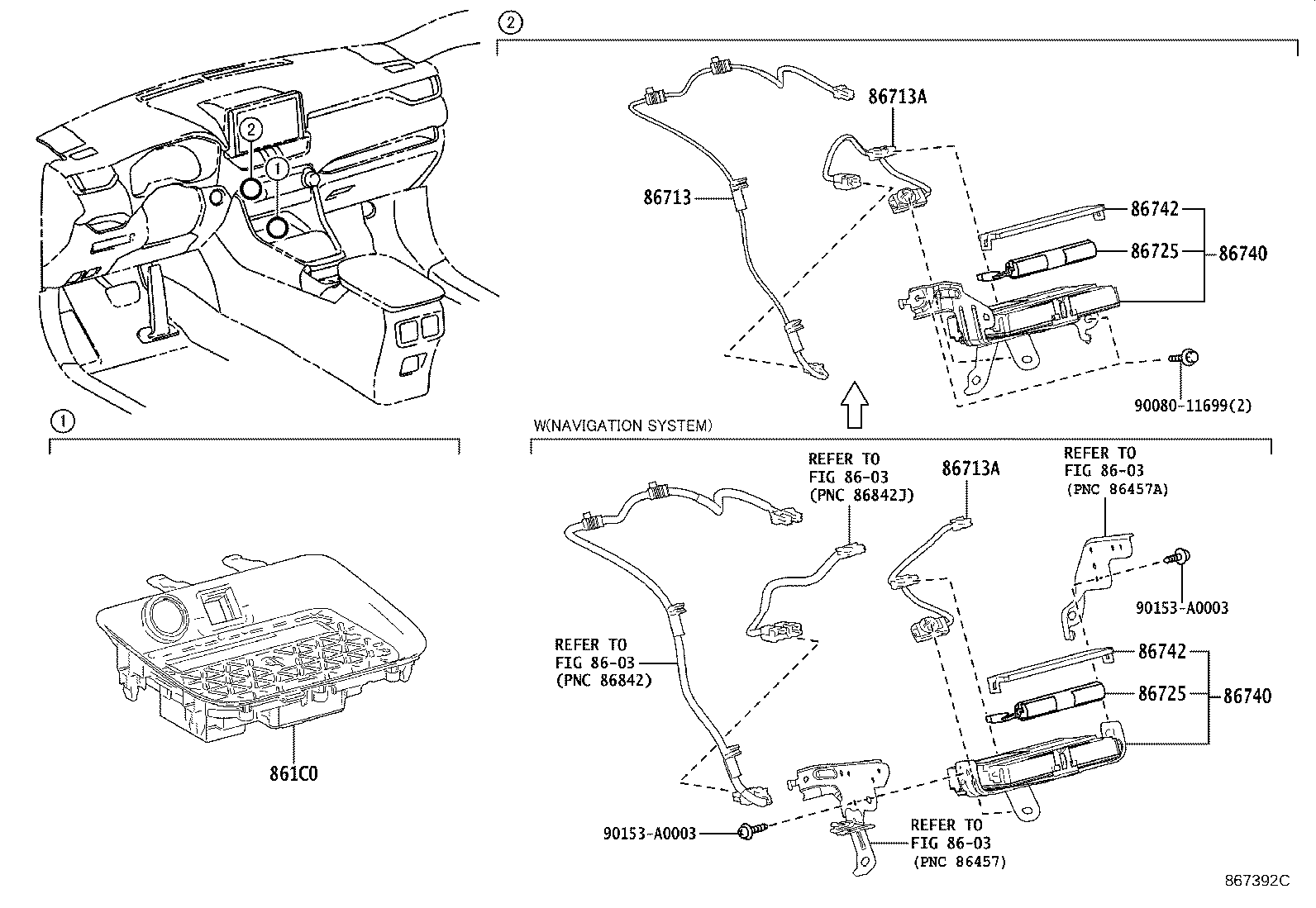

(1812-1910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER | ||||
| 861C0-0R020E2 |
AXAA5#,AXAH54,AXAL54..G WIRELESS CHARGER-WITH,DK.BROUN,TRIM1#,2#,4# |
1 | ||
| 861C0-0R020C1 |
AXAA5#,AXAH54,AXAL54..M WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4# |
1 | ||
| 86713 - WIRE, TELEPHONE COMPUTER | ||||
| 86713-0R010 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R010 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86713A - WIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER) | ||||
| 86713-0R040 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R040 |
AXAH54..M..USA;AXAA5#..(G,V)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R050 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86713-0R060 |
AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R050 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R050 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R060 |
AXAA5#..G..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86713A - WIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER) | ||||
| 86713-0R040 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R040 |
AXAH54..M..USA;AXAA5#..(G,V)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R050 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86713-0R060 |
AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R050 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R050 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R060 |
AXAA5#..G..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-78010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86725-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-78010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86725-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86740 - TRANSCEIVER ASSY, TELEPHONE | ||||
| 86740-42040 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86740-42170 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06092 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86740-42170 |
AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86740 - TRANSCEIVER ASSY, TELEPHONE | ||||
| 86740-42040 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86740-42170 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06092 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86740-42170 |
AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86742-12010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86742-12010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90153-A0003 | ||||
| Linked diagrams | ||||
| 8603 | ||||

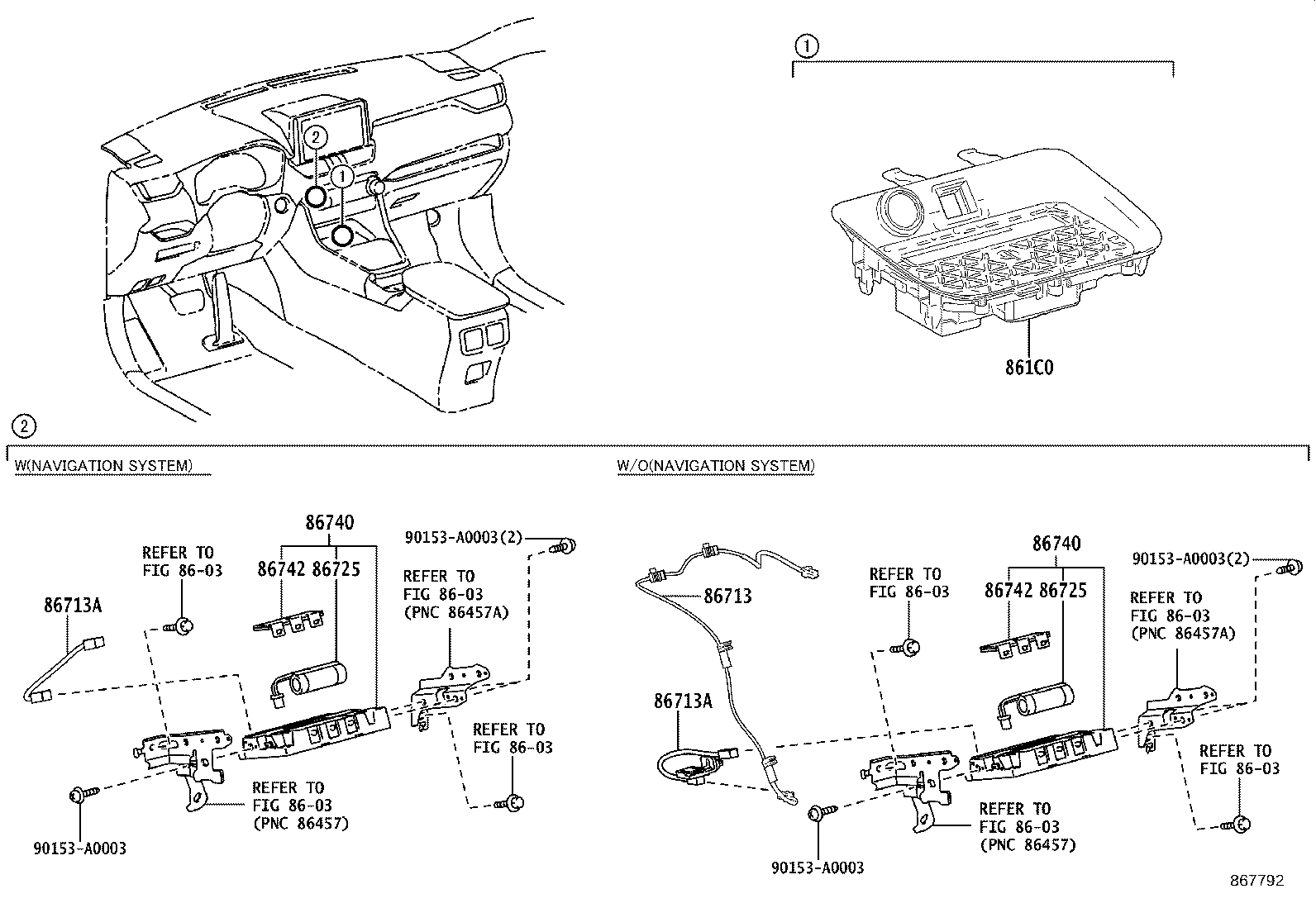

(1910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER | ||||
| 861C0-0R020E2 |
AXAA5#,AXAH54,AXAL54..G WIRELESS CHARGER-WITH,DK.BROUN,TRIM1#,2#,4# |
1 | ||
| 861C0-0R020C1 |
AXAA5#,AXAH54,AXAL54..M WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4# |
1 | ||
| 86713 - WIRE, TELEPHONE COMPUTER | ||||
| 86713-0R010 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R010 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86713A - WIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER) | ||||
| 86713-0R040 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R040 |
AXAH54..M..USA;AXAA5#..(G,V)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R050 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86713-0R060 |
AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R050 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R050 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R060 |
AXAA5#..G..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86713A - WIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER) | ||||
| 86713-0R040 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R040 |
AXAH54..M..USA;AXAA5#..(G,V)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R050 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86713-0R060 |
AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R050 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86713-0R050 |
AXAA5#..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86713-0R060 |
AXAA5#..G..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86713-0R030 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-78010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86725-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-78010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86725-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86740 - TRANSCEIVER ASSY, TELEPHONE | ||||
| 86740-42040 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86740-42170 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06092 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86740-42170 |
AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86740 - TRANSCEIVER ASSY, TELEPHONE | ||||
| 86740-42040 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86740-42170 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY & AVN |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(M,X)..USA PUERTO RICO SPEC |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06091 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86741-06091 |
AXAA5#,AXAH54..(G,V)..USA AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86741-06092 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86741-06092 |
AXAA5#,AXAH54..(G,V)..USA DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 86740-42170 |
AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA AUDIO-JBL & 8INCH DISPLAY & AVN |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86742-12010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-06020 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA |
1 | ||
| 86742-12010 |
AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA |
1 | ||
| Common parts | ||||
| 90153-A0003 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
