AXAA52L-CNZMBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA52 ; (1812- )AXAA54..G,M,V ; (1812- )AXAA54..X..CND

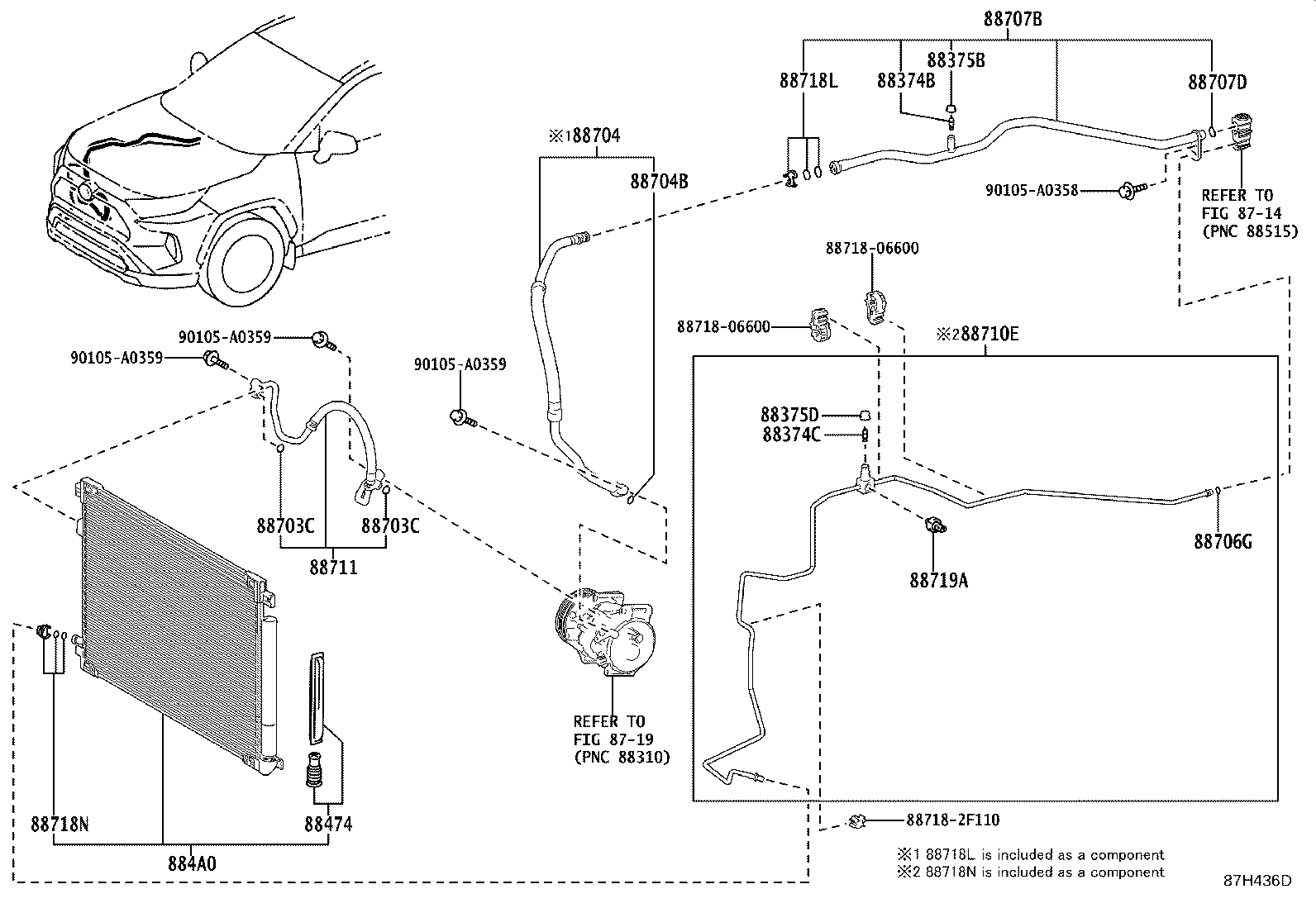

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88703C 88703C 88704 88704B 88706G 88707B 88707D 88710E 88711 8871806600 8871806600 887182F110 88718L 88718N 88719A 90105A0358 90105A0359 90105A0359 90105A0359
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXAA5#,AXAH54,AXAL54

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXAA5#,AXAH54,AXAL54

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

AXAA5#,AXAH54,AXAL54

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

AXAA5#,AXAH54,AXAL54

 1
88474 - DRYER, COOLER
88474-06020

AXAA5#

 1
884A0 - CONDENSER ASSY, COOLER
884A0-06020

AXAA5#

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXAA5#,AXAH54,AXAL54

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXAA5#,AXAH54,AXAL54

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0R090

AXAA5#

 1
88704B - RING, O(FOR SUCTION HOSE)
90069-08009

AXAA5#,AXAH54,AXAL54

ID=13.4,OD=18.2

 1
88706G - RING, O(FOR LIQUID TUBE)
90069-08011

AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND

ID=6.7,OD=10.3

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-0R070

AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND

 1
88707D - RING, O(FOR SUCTION TUBE)
90069-08009

AXAA5#,AXAH54,AXAL54

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0R010

AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0R010

AXAA5#

 1
88718L - CLAMP, PIPING
88718-52280

AXAA5#,AXAH54,AXAL54

 1
88718N - CLAMP, PIPING
88718-1E150

AXAA5#,AXAH54,AXAL54

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXAA5#,AXAH54,AXAL54

 1
Common parts
88718-06600
88718-2F110
90105-A0358
90105-A0359
Linked diagrams
8714
8719

(1812- )AXAA52..M ; (1812- )AXAA54..M,X

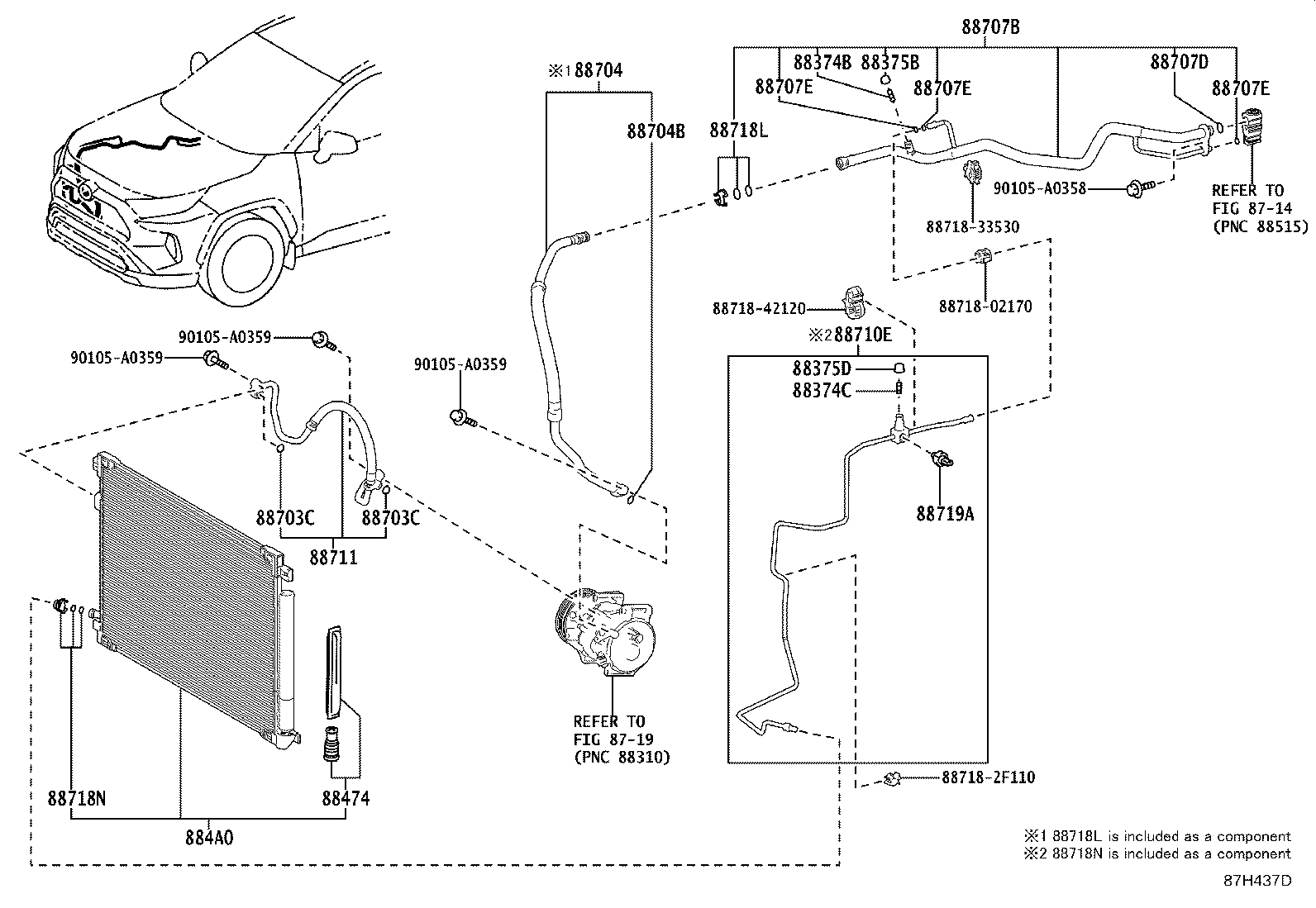

Click highlighted areas on diagram

SUB-COOL ACCELERATOR TYPE

diagram 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88703C 88703C 88704 88704B 88707B 88707D 88707E 88707E 88707E 88710E 88711 8871802170 887182F110 8871833530 8871842120 88718L 88718N 88719A 90105A0358 90105A0359 90105A0359 90105A0359
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXAA5#,AXAH54,AXAL54

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXAA5#,AXAH54,AXAL54

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

AXAA5#,AXAH54,AXAL54

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

AXAA5#,AXAH54,AXAL54

 1
88474 - DRYER, COOLER
88474-06020

AXAA5#

 1
884A0 - CONDENSER ASSY, COOLER
884A0-06020

AXAA5#

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXAA5#,AXAH54,AXAL54

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXAA5#,AXAH54,AXAL54

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0R090

AXAA5#

 1
88704B - RING, O(FOR SUCTION HOSE)
90069-08009

AXAA5#,AXAH54,AXAL54

ID=13.4,OD=18.2

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-0R070

AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND

 1
88707D - RING, O(FOR SUCTION TUBE)
90069-08009

AXAA5#,AXAH54,AXAL54

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0R010

AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0R010

AXAA5#

 1
88718L - CLAMP, PIPING
88718-52280

AXAA5#,AXAH54,AXAL54

 1
88718N - CLAMP, PIPING
88718-1E150

AXAA5#,AXAH54,AXAL54

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXAA5#,AXAH54,AXAL54

 1
Common parts
88718-02170
88718-2F110
88718-33530
88718-42120
90105-A0358
90105-A0359
Linked diagrams
8714
8719
