AXAA52L-CNZMBA (2018)
Toyota Rav4 (Nap)
ILLUST NO. 1 OF 2(1812- )AXAA5#

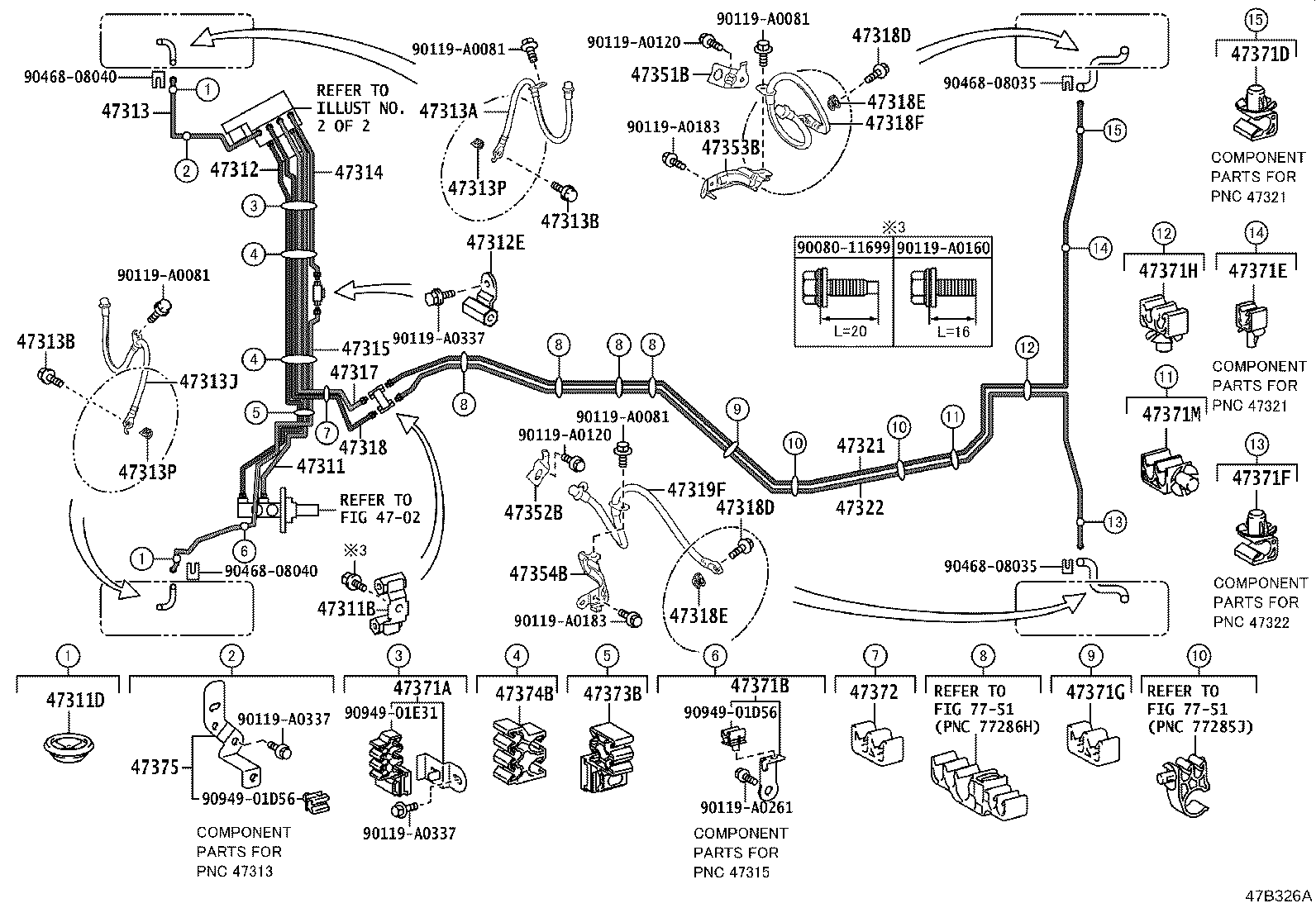

BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0R100 |
AXAA5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-A0011 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0R090 |
AXAA5# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-A0015 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| 90412-10272 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 90412-10272 |
AXAA5#,AXAH54 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0R100 |
AXAA5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2115 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXAA5#,AXAH54 |
2 | ||
| 90401-10058 |
AXAA5#,AXAH54,AXAL54 (J) |
2 | ||
| 90401-A0001 |
AXAA5#,AXAH54,AXAL54 (L) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXAA5#,AXAH54 |
2 | ||
| 90401-10058 |
AXAA5#,AXAH54,AXAL54 (J) |
2 | ||
| 90401-A0001 |
AXAA5#,AXAH54,AXAL54 (L) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2116 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0R090 |
AXAA5# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0R010 |
AXAA5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0R100 |
AXAA5# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0R100 |
AXAA5# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXAA5#,AXAH54 |
2 | ||
| 90401-A0001 |
AXAA5#,AXAH54,AXAL54 (L) |
2 | ||
| 90401-10058 |
AXAA5#,AXAH54,AXAL54 (J) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXAA5#,AXAH54 |
2 | ||
| 90401-A0001 |
AXAA5#,AXAH54,AXAL54 (L) |
2 | ||
| 90401-10058 |
AXAA5#,AXAH54,AXAL54 (J) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2113 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2114 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0R080 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0R080 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-06050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-06050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-06040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-06040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-0R030 |
AXAA5# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-0R020 |
AXAA5# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01D17 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E01 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90464-00903 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-01D12 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90949-01D13 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00903 |
AXAA5# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E30 |
AXAA5# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01E40 |
AXAA5# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-0R010 |
AXAA5# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90119-A0081 | ||||
| 90119-A0120 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0261 | ||||
| 90119-A0337 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90949-01D56 | ||||
| 90949-01E31 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(1812- )AXAA5#

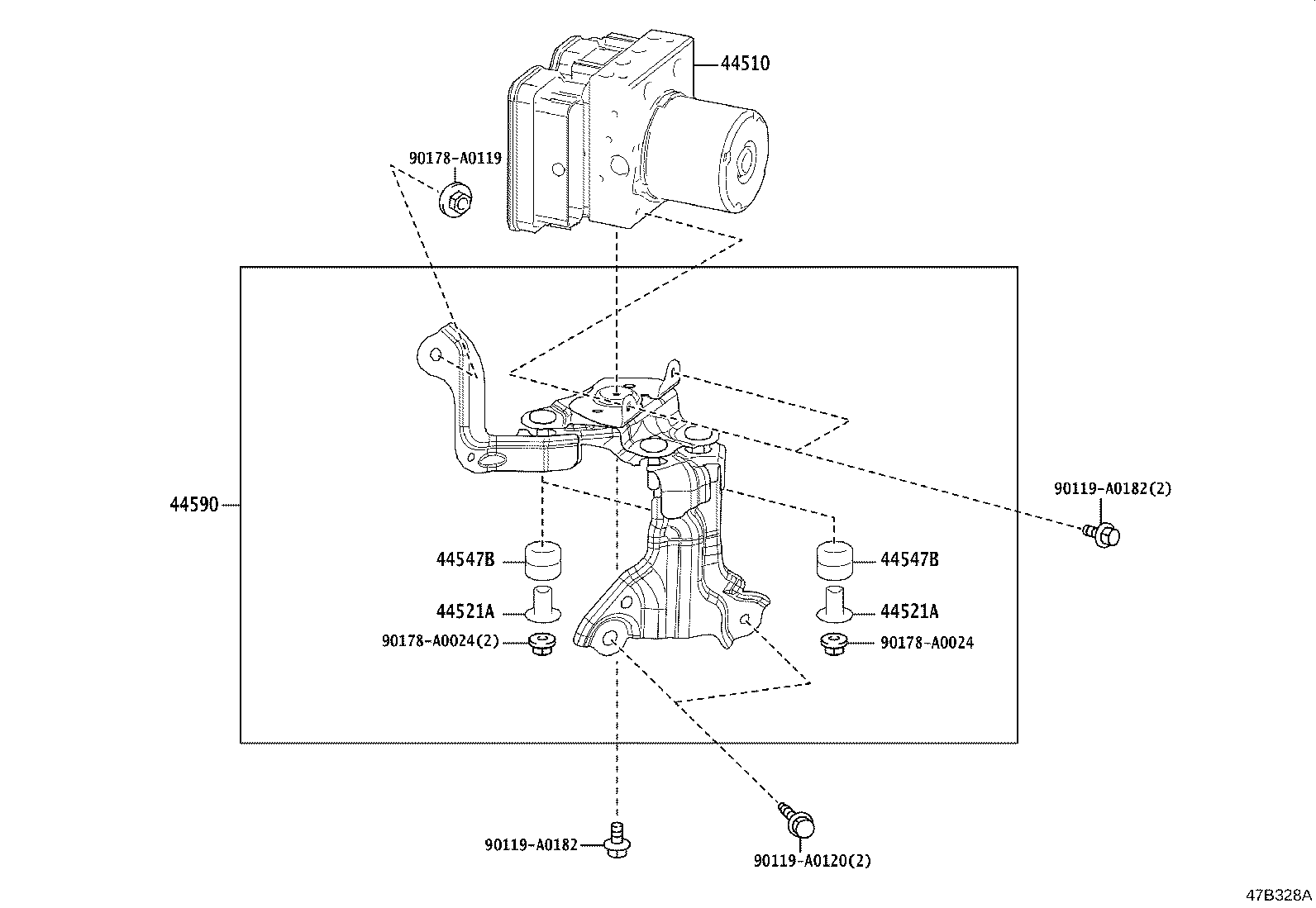

BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0R240 |
AXAA52;AXAA54..M,X |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-33020 |
AXAA5# |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-33020 |
AXAA5# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-33100 |
AXAA5# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-33100 |
AXAA5# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0R050 |
AXAA5# |
1 | ||
| Common parts | ||||
| 90119-A0120 | ||||
| 90119-A0182 | ||||
| 90178-A0024 | ||||
| 90178-A0119 | ||||
