ASA44L-CNTXKK (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )

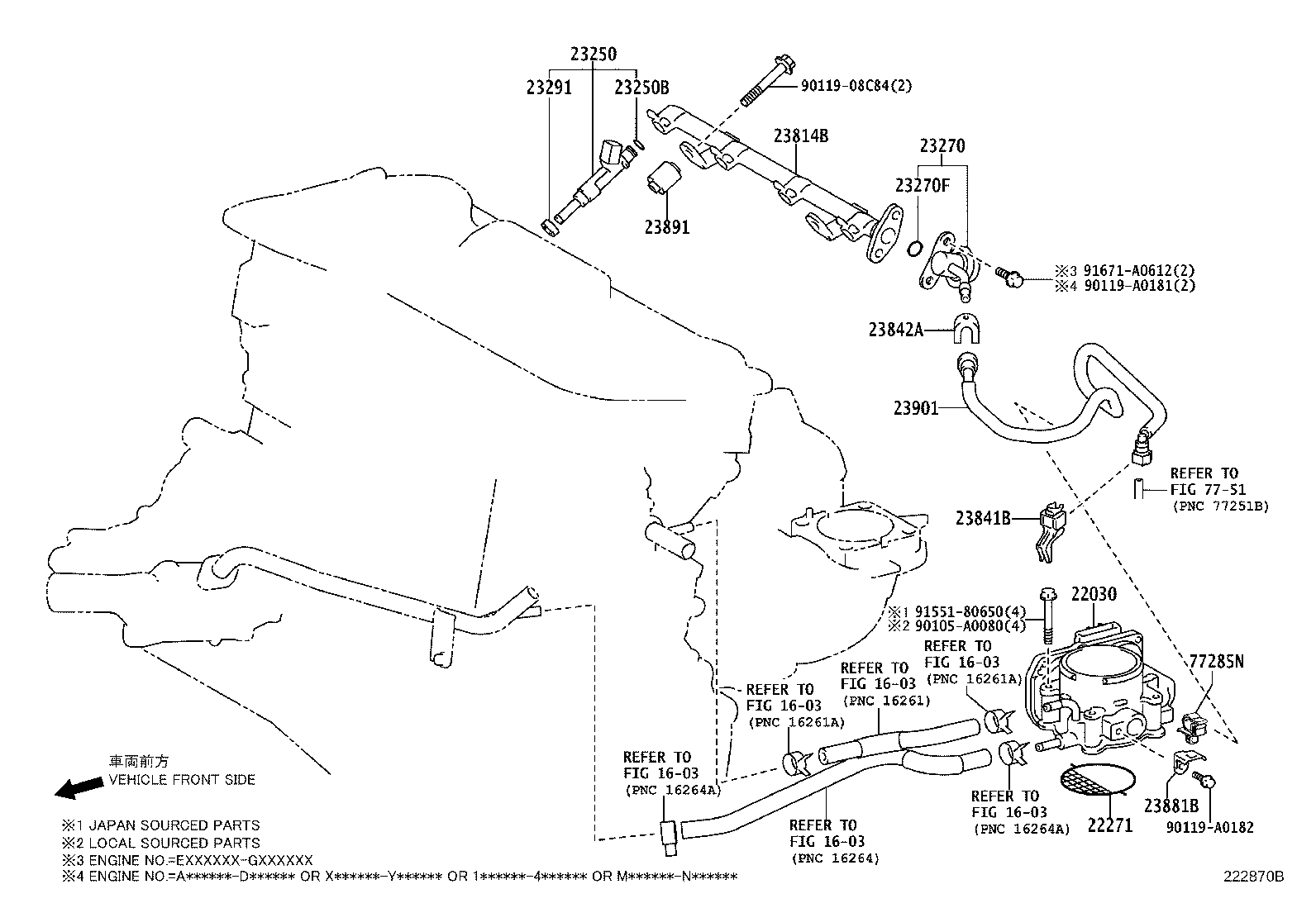

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 22030 22271 23250 23250B 23270 23270F 23291 23814B 23841B 23842A 23881B 23891 23901 77285N 7751 90105A0080 9011908C84 90119A0181 90119A0182 9155180650 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0V010

2ARFE..ASA4#

*364 OR *390

 1
22030-36010

2ARFE..ASA4#

*265

 1
22271 - GASKET, THROTTLE BODY
22271-0V010

2ARFE..ASA4#

*364 OR *390

 1
22271-36010

2ARFE..ASA4#

*265

 1
23250 - INJECTOR ASSY, FUEL
23209-39175

2ARFE..ASA4#

*265

 4
23209-09175

2ARFE..ASA4#

*364 OR *390

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-A0036

2ARFE..ASA4#

(L),*364 OR *390

 4
90301-07037

2ARFE..ASA4#

*265,(J),*364 OR *390

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-36031

2ARFE..ASA4#

*364 OR *390,*265

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

2ARFE..ASA4#

*364 OR *390,*265

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

2ARFE..ASA4#

*265,(J),*364 OR *390

 4
23291-0V020

2ARFE..ASA4#

(L),*364 OR *390

 4
23814B - PIPE, FUEL DELIVERY
23814-36040

2ARFE..ASA4#

*265,*364 OR *390

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0V010

2ARFE..ASA4#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0V010

2ARFE..ASA4#

 1
23881B - BRACKET, FUEL HOSE
23881-0V010

2ARFE..ASA4#

 1
23891 - SPACER, FUEL DELIVERY
23891-36010

2ARFE..ASA4#

*364 OR *390,*265

 2
23901 - TUBE SUB-ASSY, FUEL
23901-0V140

2ARFE..ASA4#

 1
77285N - CLAMP, FUEL TUBE, NO.1
77285-0R030

ASA4#

 1
Common parts
90105-A0080
90119-08C84
90119-A0181
90119-A0182
91551-80650
91671-A0612
Linked diagrams
1603
7751
