ASA44L-CNTXKA (2013)
Toyota Rav4 (Nap)
Production
Jan 2013
-
Nov 2015
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1301- )

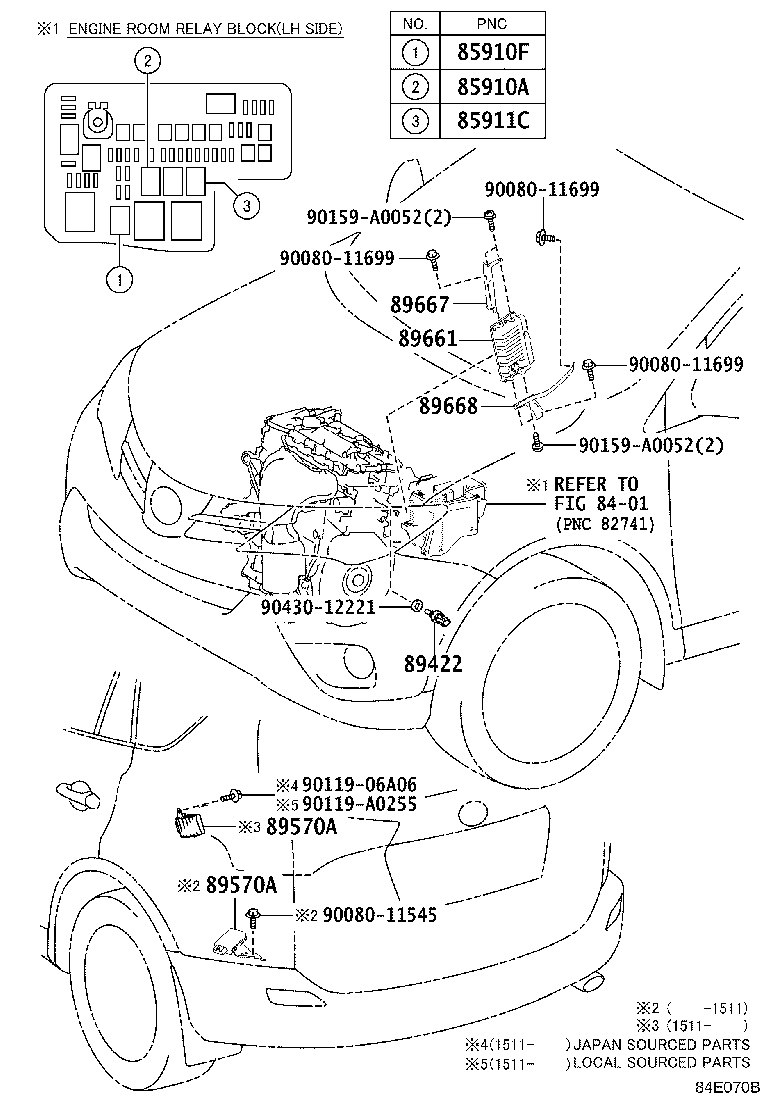

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90080-87026 |
ASA44 (L) |
1 | ||
| 90987-02027 |
ASA44 (J) |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90080-87026 |
ASA44 (L) |
1 | ||
| 90987-02027 |
ASA44 (J) |
1 | ||
| 85911C - RELAY, EFI 2 | ||||
| 90080-87026 |
ASA44 (L) |
1 | ||
| 90987-02027 |
ASA44 (J) |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
ASA4# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0R390 |
ASA44 |
1 | ||
| 89661-0R080 |
ASA44 |
1 | ||
| 89661-0R391 |
ASA44 |
1 | ||
| 89661-0R400 |
ASA44..USA MEXICO SPEC |
1 | ||
| 89661-0R470 |
ASA44 |
1 | ||
| 89661-0R490 |
ASA44..USA MEXICO SPEC |
1 | ||
| 89661-0R471 |
ASA44 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-0R010 |
ASA4# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0R010 |
ASA4# |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11699 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
| 90159-A0052 | ||||
| 90430-12221 | ||||
| Linked diagrams | ||||
| 8401 | ||||
