ASA44L-CNTMKK (2013)
Toyota Rav4 (Nap)

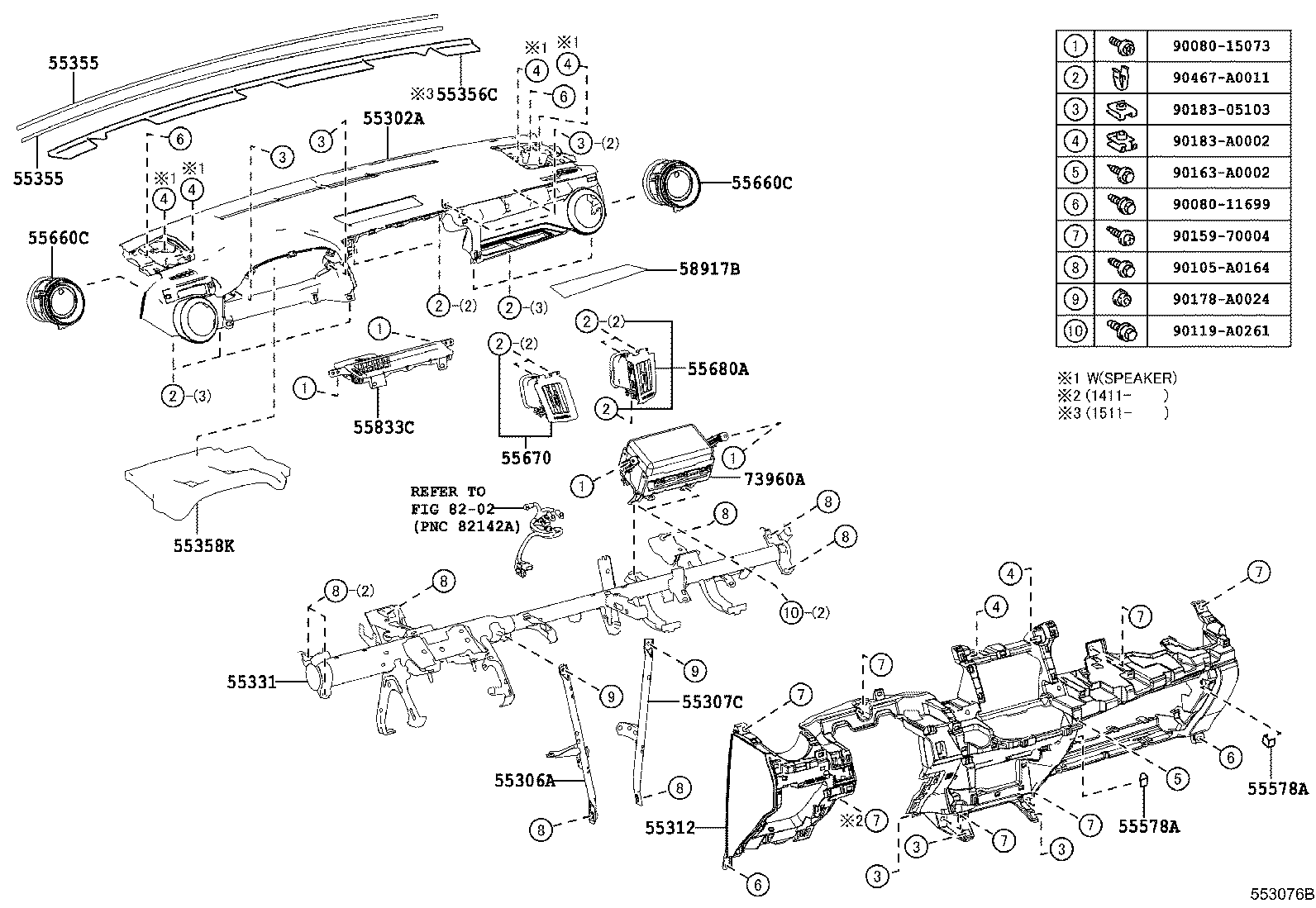

ILLUST NO. 1 OF 2(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0R903C0 |
ASA4#..XLE..USA;ASA4#..(LE,XLE)..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0R040 |
ASA4# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0R010 |
ASA4# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0R032 |
ASA4# |
1 | ||
| 55330-0R031 |
ASA4# |
1 | ||
| 55330-0R030 |
ASA4# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0R030 |
ASA4# |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0R030 |
ASA4# |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-0R030 |
ASA4# |
1 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ASA4# |
2 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ASA4# |
2 | ||
| 55660C - REGISTER ASSY, INSTRUMENT PANEL | ||||
| 55660-0R010C0 |
ASA4#..XLE..USA;ASA4#..(LE,XLE)..CND BLACK,TRIM1#,2#,4# |
2 | ||
| 55660C - REGISTER ASSY, INSTRUMENT PANEL | ||||
| 55660-0R010C0 |
ASA4#..XLE..USA;ASA4#..(LE,XLE)..CND BLACK,TRIM1#,2#,4# |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0R030 |
ASA4#..LIMD,XLE |
1 | ||
| 55670-0R040 |
ASA4#..LE |
1 | ||
| 55670-0R031 |
ASA4#..LIMD,XLE |
1 | ||
| 55670-0R041 |
ASA4#..LE |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0R020 |
ASA4#..LE |
1 | ||
| 55680-0R010 |
ASA4#..LIMD,XLE |
1 | ||
| 55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55833-0R010C0 |
ASA4#..XLE..USA;ASA4#..(LE,XLE)..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 58917B - MAT, BOX BOTTOM | ||||
| 58917-0R010C0 |
ASA4#..XLE..USA;ASA4#..(LE,XLE)..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0R040 |
ASA4# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90105-A0164 | ||||
| 90119-A0261 | ||||
| 90159-70004 | ||||
| 90163-A0002 | ||||
| 90178-A0024 | ||||
| 90183-05103 | ||||
| 90183-A0002 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 8202 | ||||

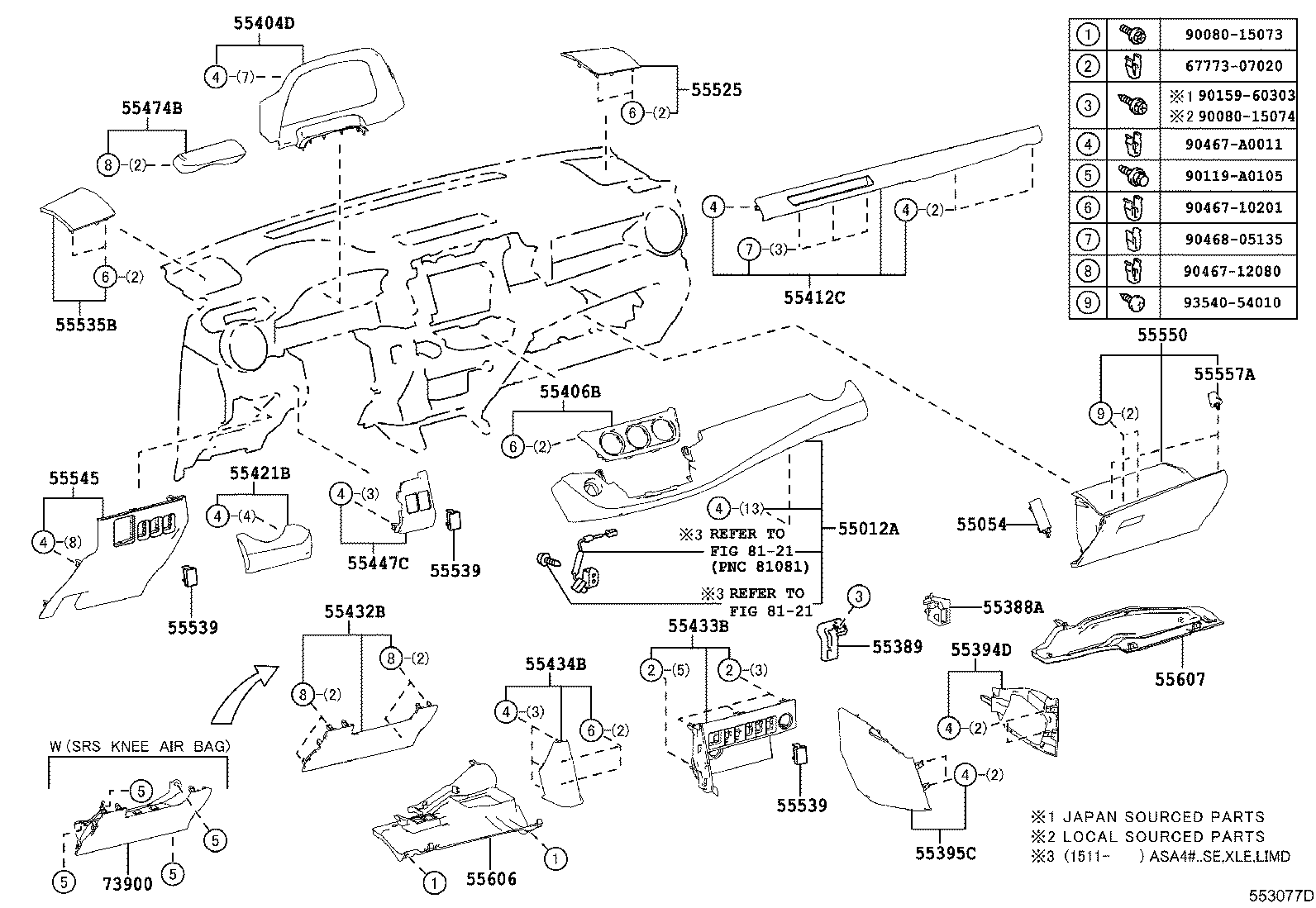

ILLUST NO. 2 OF 2(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-0R020C3 |
ASA44..XLE..CND ANNIVERSARY PACKAGE(*STRG STITCH-RED),BLACK/RED,TRIM20 |
1 | ||
| 55012-0R010B0 |
ASA4#..LE GRAY,TRIM1# |
1 | ||
| 55012-0R011A0 |
ASA4#..LE BEIGE,TRIM4# |
1 | ||
| 55012-0R020B1 |
ASA4#..LIMD,XLE GRAY,TRIM1# |
1 | ||
| 55012-0R020C1 |
ASA44..XLE..CND BLACK,TRIM2# |
1 | ||
| 55012-0R020A1 |
ASA4#..LIMD,XLE BEIGE,TRIM4# |
1 | ||
| 55012-0R011C0 |
ASA4#..LE BLACK,TRIM2# |
1 | ||
| 55012-0R010A0 |
ASA4#..LE BEIGE,TRIM4# |
1 | ||
| 55012-0R011B0 |
ASA4#..LE GRAY,TRIM1# |
1 | ||
| 55012-0R020C1 |
ASA44..XLE..CND BLACK,TRIM20 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
ASA4# |
1 | ||
| 55388A - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-0R010 |
ASA4# |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-0R010 |
ASA4# |
1 | ||
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55394-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55394-0R030C0 |
ASA44..XLE..CND ANNIVERSARY PACKAGE(*STRG STITCH-RED),BLACK,TRIM2# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-0R030C0 |
ASA44..XLE..CND ANNIVERSARY PACKAGE(*STRG STITCH-RED),BLACK,TRIM2# |
1 | ||
| 55395-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0R030 |
ASA4# |
1 | ||
| 55404-0R031 |
ASA4# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0R010 |
ASA4#..LE |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-0R030 |
ASA4# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-0R020A1 |
ASA4#..LIMD,XLE BEIGE,TRIM4# |
1 | ||
| 55421-0R010C0 |
ASA4#..LE BLACK,TRIM2# |
1 | ||
| 55421-0R020B1 |
ASA4#..LIMD,XLE GRAY,TRIM1# |
1 | ||
| 55421-0R020C1 |
ASA44..XLE..CND BLACK,TRIM2# |
1 | ||
| 55421-0R010B0 |
ASA4#..LE GRAY,TRIM1# |
1 | ||
| 55421-0R020C1 |
ASA44..XLE..CND BLACK,TRIM20 |
1 | ||
| 55421-0R010A0 |
ASA4#..LE BEIGE,TRIM4# |
1 | ||
| 55421-0R020C3 |
ASA44..XLE..CND ANNIVERSARY PACKAGE(*STRG STITCH-RED),BLACK/RED,TRIM20 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0R010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0R010 |
ASA4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0R010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-0R010 |
ASA4# |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-0R010C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55510-0R010C0 |
ASA4#..LE..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-0R010C0 |
ASA4#..LE AUDIO-*DA & 6SPEAKER & *BT & USB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-0R010C0 |
ASA4#..LE..CND AUDIO-*DA & 6SPEAKER & *BT & USB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-0R010C0 |
ASA4#..LE..CND AUDIO-*DA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-0R010C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-0R010C0 |
ASA4#..LE AUDIO-*DA & 6SPEAKER & *BT & USB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55530-0R010C0 |
ASA4#..LE..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-0R010C0 |
ASA4#..LE..CND AUDIO-*DA,BLACK,TRIM1#,2#,4# |
1 | ||
| 55535-0R010C0 |
ASA4#..LE..CND AUDIO-*DA & 6SPEAKER & *BT & USB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52070C0 |
ASA4#..LE,XLE ANTI-THEFT SYSTEM-WITH(*IM & SECURITY(ACCESSORIES)),BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52070C0 |
ASA4#..(LE,XLE)..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)),BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52070C0 |
ASA4#..LE,XLE ANTI-THEFT SYSTEM-WITH(*IM & SECURITY(ACCESSORIES)),BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52070C0 |
ASA4#..(LE,XLE)..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)),BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52070C0 |
ASA4#..LE,XLE ANTI-THEFT SYSTEM-WITH(*IM & SECURITY(ACCESSORIES)),BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-52070C0 |
ASA4#..(LE,XLE)..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)),BLACK,TRIM1#,2#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASA4# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0R010 |
ASA4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0R010 |
ASA4# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0R010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 67773-07020 | ||||
| 90080-15073 | ||||
| 90080-15074 | ||||
| 90119-A0105 | ||||
| 90159-60303 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 8121 | ||||
