ASA44L-CNTMKK (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

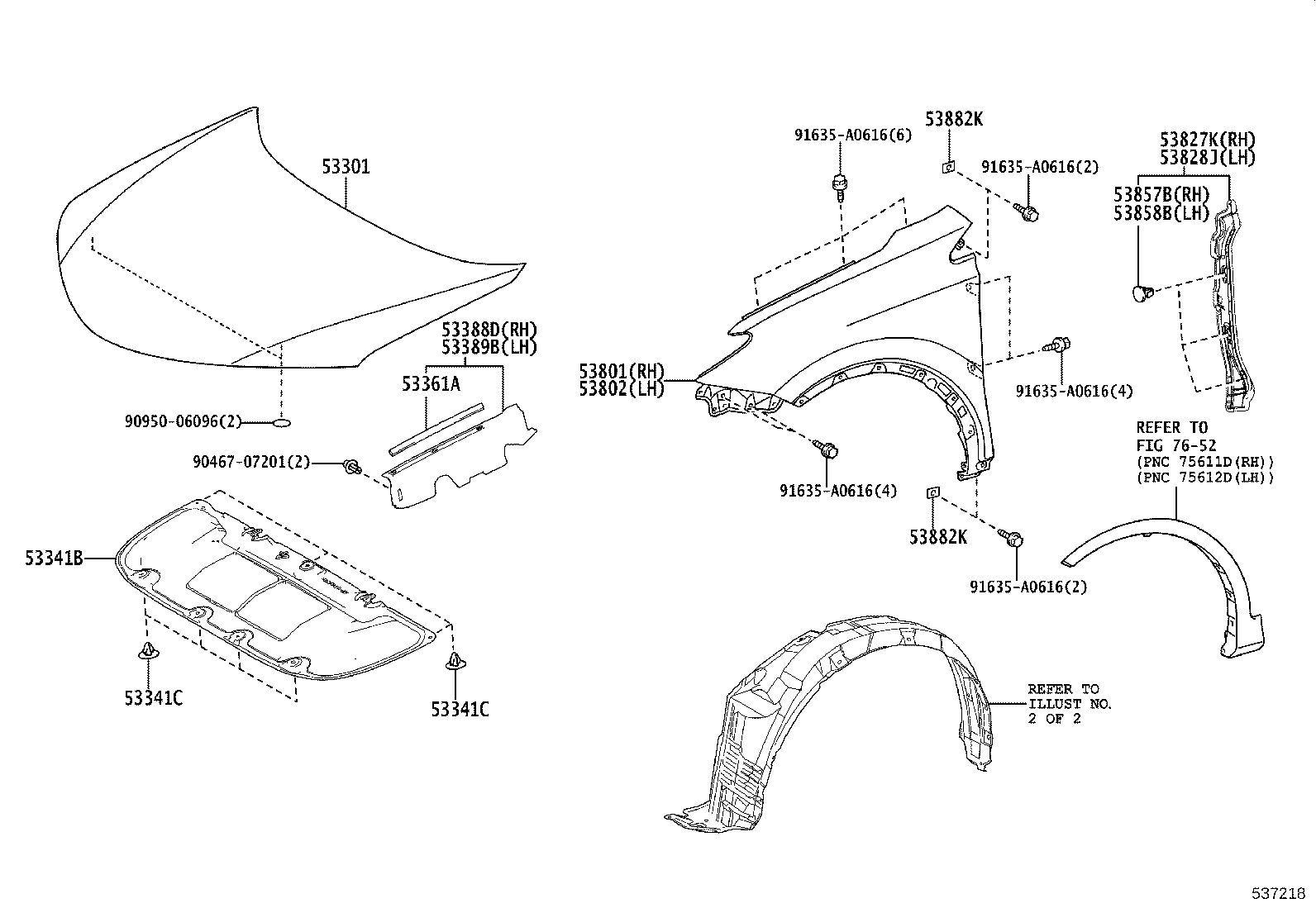

ILLUST NO. 1 OF 2(1301- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53341C 53361A 53388D 53389B 53801 53802 53827K 53828J 53857B 53858B 53882K 53882K 7652 9046707201 9095006096 91635A0616 91635A0616 91635A0616 91635A0616 91635A0616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0R050

ASA4#

 1
53341B - INSULATOR, HOOD
53341-0R030

ASA4#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-A0003

ASA4#

(L)

 7
90467-09050

ASA4#

(J)

 7
53341C - CLIP(FOR HOOD INSULATOR)
90467-A0003

ASA4#

(L)

 7
90467-09050

ASA4#

(J)

 7
53361A - WEATHERSTRIP, HOOD
53361-0R010

ASA4#

 2
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-0R030

ASA4#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-0R030

ASA4#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-0R070

ASA4#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-0R050

ASA4#

 1
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0R030

ASA4#

 1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0R030

ASA4#

 1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

ASA4#

 3
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011

ASA4#

 3
53882K - SEAL, FRONT FENDER
53882-16030

ASA4#

 4
53882K - SEAL, FRONT FENDER
53882-16030

ASA4#

 4
Common parts
90467-07201
90950-06096
91635-A0616
Linked diagrams
7652

ILLUST NO. 2 OF 2(1301- )

Click highlighted areas on diagram

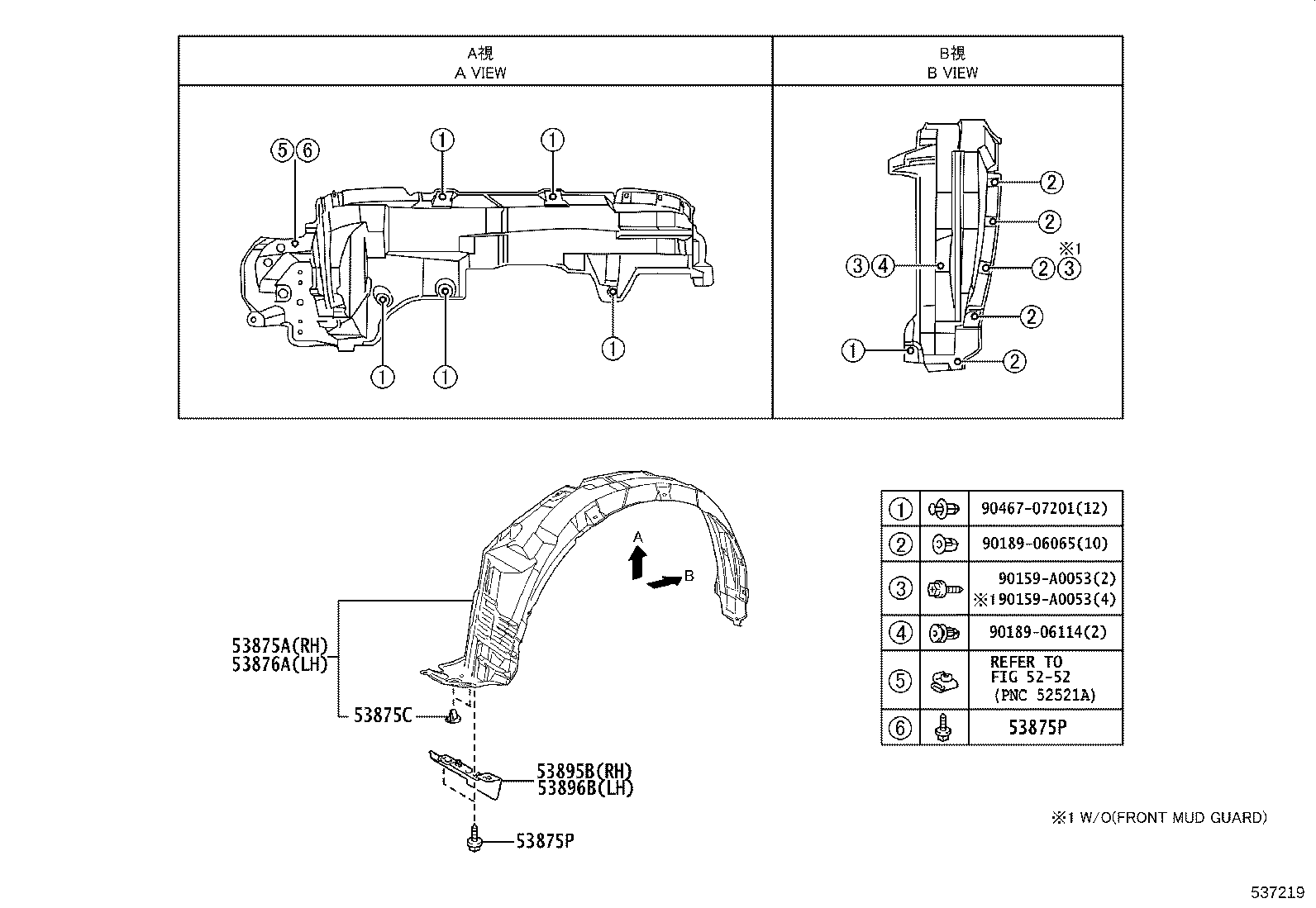

FENDER LINER

diagram 5252 53875A 53875C 53875P 53875P 53876A 53895B 53896B 90159A0053 90159A0053 9018906065 9018906114 9046707201
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-0R060

ASA4#

 1
53875C - CLIP, FRONT FENDER LINER
90467-06192

ASA4#

 2
53875P - SCREW, NO.1
90159-60215

ASA4#

 6
53875P - SCREW, NO.1
90159-60215

ASA4#

 6
53876A - LINER, FRONT FENDER, LH
53876-0R060

ASA4#

 1
53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH
53895-0R030

ASA4#

 1
53895-0R050

ASA4#

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53896-0R030

ASA4#

 1
53896-0R050

ASA4#

 1
Common parts
90159-A0053
90189-06065
90189-06114
90467-07201
Linked diagrams
5252
