ASA44L-CNTMKK (2013)
Toyota Rav4 (Nap)
Production
Jan 2013
-
Nov 2015
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1301-1511)

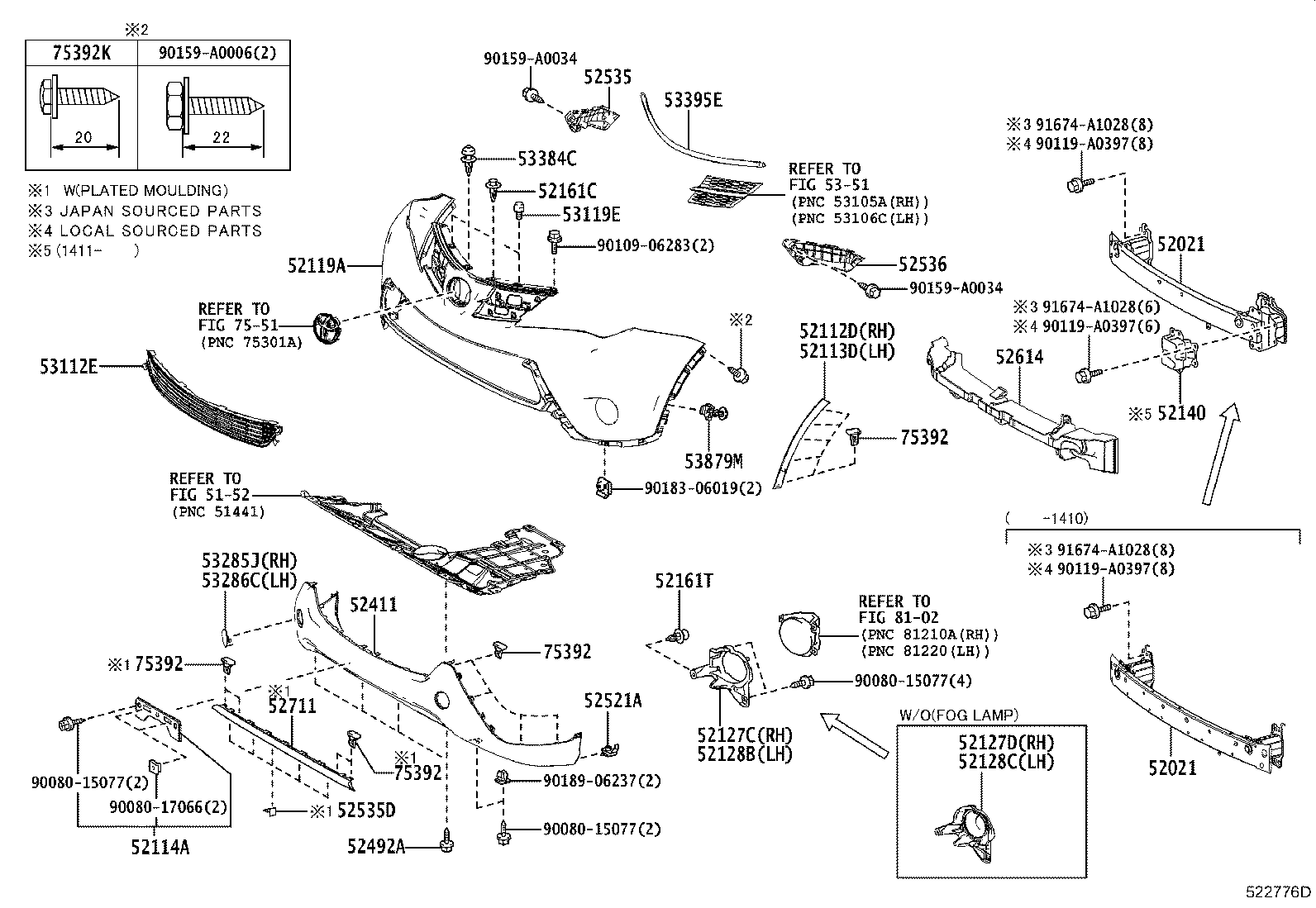

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0R080 |
ASA4# |
1 | ||
| 52021-0R050 |
ASA4# |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0R080 |
ASA4# |
1 | ||
| 52021-0R050 |
ASA4# |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-0R030 |
ASA4# NO PAINT REQ. |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-0R030 |
ASA4# NO PAINT REQ. |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-0R060 |
ASA4# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0R911 |
ASA4# PAINT REQ. |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-0R080 |
ASA4#..LIMD,XLE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0R070 |
ASA4#..LE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0R080 |
ASA4#..LIMD,XLE |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0R070 |
ASA4#..LE |
1 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-0R010 |
ASA4# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ASA4# |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ASA4# |
2 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-0R010 |
ASA4#..LE |
1 | ||
| 52411-0R020 |
ASA4#..LIMD,XLE |
1 | ||
| 52492A - BOLT, BUMPER PAD, NO.3 | ||||
| 90119-A0156 |
ASA4# |
4 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05114 |
ASA4# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0R030 |
ASA4# |
1 | ||
| 52535D - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
ASA4#..LIMD,XLE W(PLATED MOULDING) |
5 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0R030 |
ASA4# |
1 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-0R030 |
ASA4# |
1 | ||
| 52614-0R060 |
ASA4# |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-0R010 |
ASA4#..LIMD,XLE NO PAINT REQ.,W(PLATED MOULDING) |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0R030 |
ASA4# NO PAINT REQ. |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-02050 |
ASA4# |
2 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-0R050 |
ASA4# |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-0R050 |
ASA4# |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-0R010 |
ASA4# |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-0R030 |
ASA4# |
1 | ||
| 53879M - RETAINER, FRONT FENDER LINER | ||||
| 53879-0R010 |
ASA4# |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#..LIMD,XLE W(PLATED MOULDING) |
4 | ||
| 75392-35220 |
ASA4#..LE |
18 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#..LIMD,XLE W(PLATED MOULDING) |
4 | ||
| 75392-35220 |
ASA4#..LE |
18 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#..LIMD,XLE W(PLATED MOULDING) |
4 | ||
| 75392-35220 |
ASA4#..LE |
18 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ASA4#..LIMD,XLE W(PLATED MOULDING) |
4 | ||
| 75392-35220 |
ASA4#..LE |
18 | ||
| 75392K - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-42030 |
ASA4# |
2 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90080-17066 | ||||
| 90109-06283 | ||||
| 90119-A0397 | ||||
| 90159-A0006 | ||||
| 90159-A0034 | ||||
| 90183-06019 | ||||
| 90189-06237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 7551 | ||||
| 8102 | ||||
