ASA44L-CNTGKA (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301-1511)LIMD

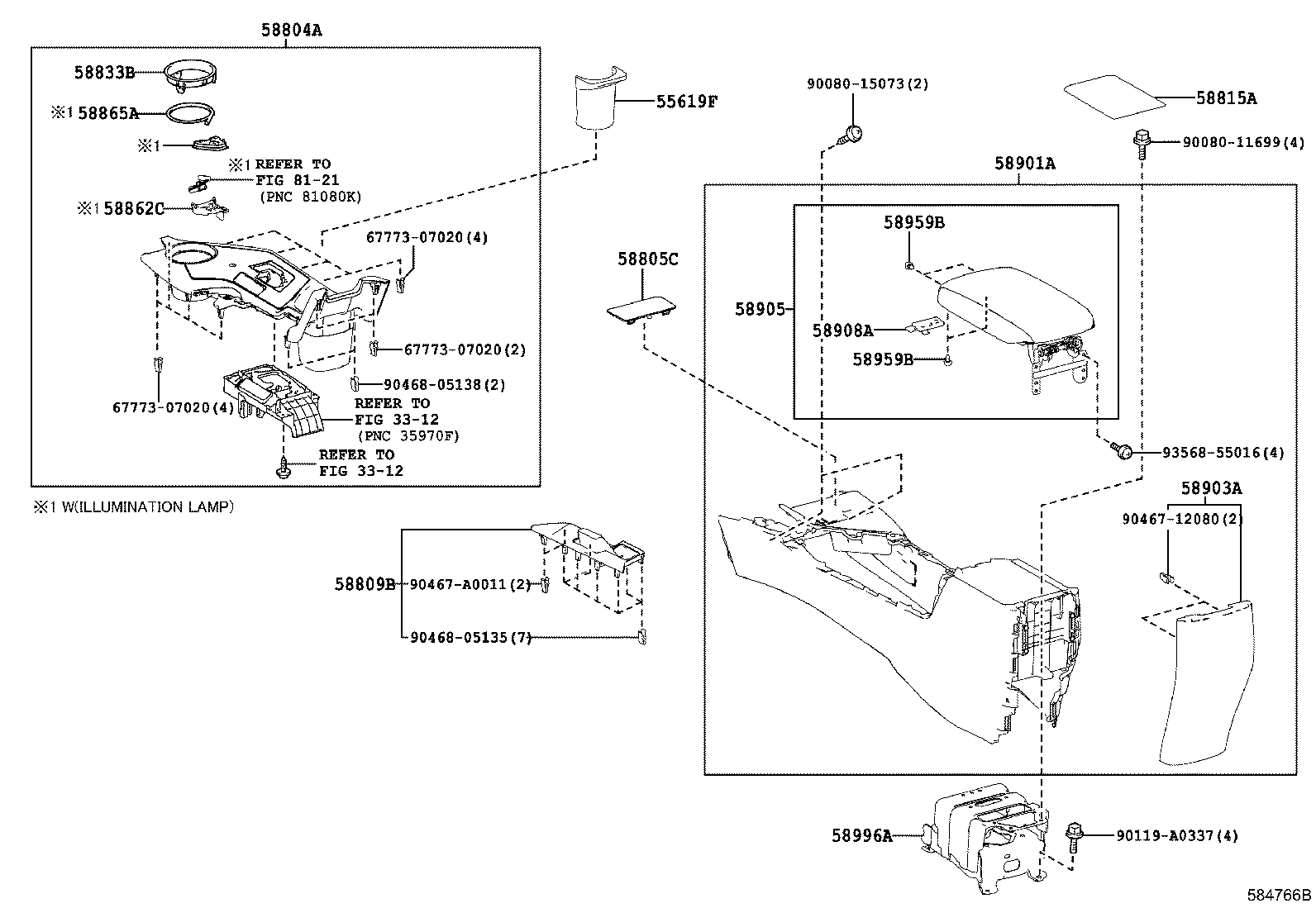

Click highlighted areas on diagram

diagram 3312 3312 55619F 58804A 58805C 58809B 58815A 58833B 58862C 58865A 58901A 58903A 58905 58908A 58959B 58959B 58996A 6777307020 6777307020 6777307020 8121 9008011699 9008015073 90119A0337 9046712080 90467A0011 9046805135 9046805138 9356855016
Part # Description Qty Price
55619F - HOLDER, CONSOLE BOX CUP, NO.2
55619-0R020

ASA4#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-0R030C0

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-0R030C0

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-0R010C1

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58809-0R011C1

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58815A - CARPET, CONSOLE BOX
58815-0R030

ASA4#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-0R060

ASA4#..LIMD;ASA4#..XLE..USA

 1
58862C - SUPPORT, CONSOLE BOX, NO.2
58862-0R010

ASA4#..LIMD;ASA4#..XLE..USA

 1
58865A - LENS, FRONT CONSOLE BOX, NO.1
58865-0R010

ASA4#..LIMD;ASA4#..XLE..USA

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-0R040C0

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-0R020C0

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-0R040C0

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-0R030

ASA4#..LIMD

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-0R010

ASA4#..LIMD

 4
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-0R010

ASA4#..LIMD

 4
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-0R030

ASA4#

 1
Common parts
67773-07020
90080-11699
90080-15073
90119-A0337
90467-12080
90467-A0011
90468-05135
90468-05138
93568-55016
