ASA44L-CNTGKA (2015)

Toyota Rav4 (Nap)

Production Nov 2015 - Nov 2018
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 9(1511- )

Click highlighted areas on diagram

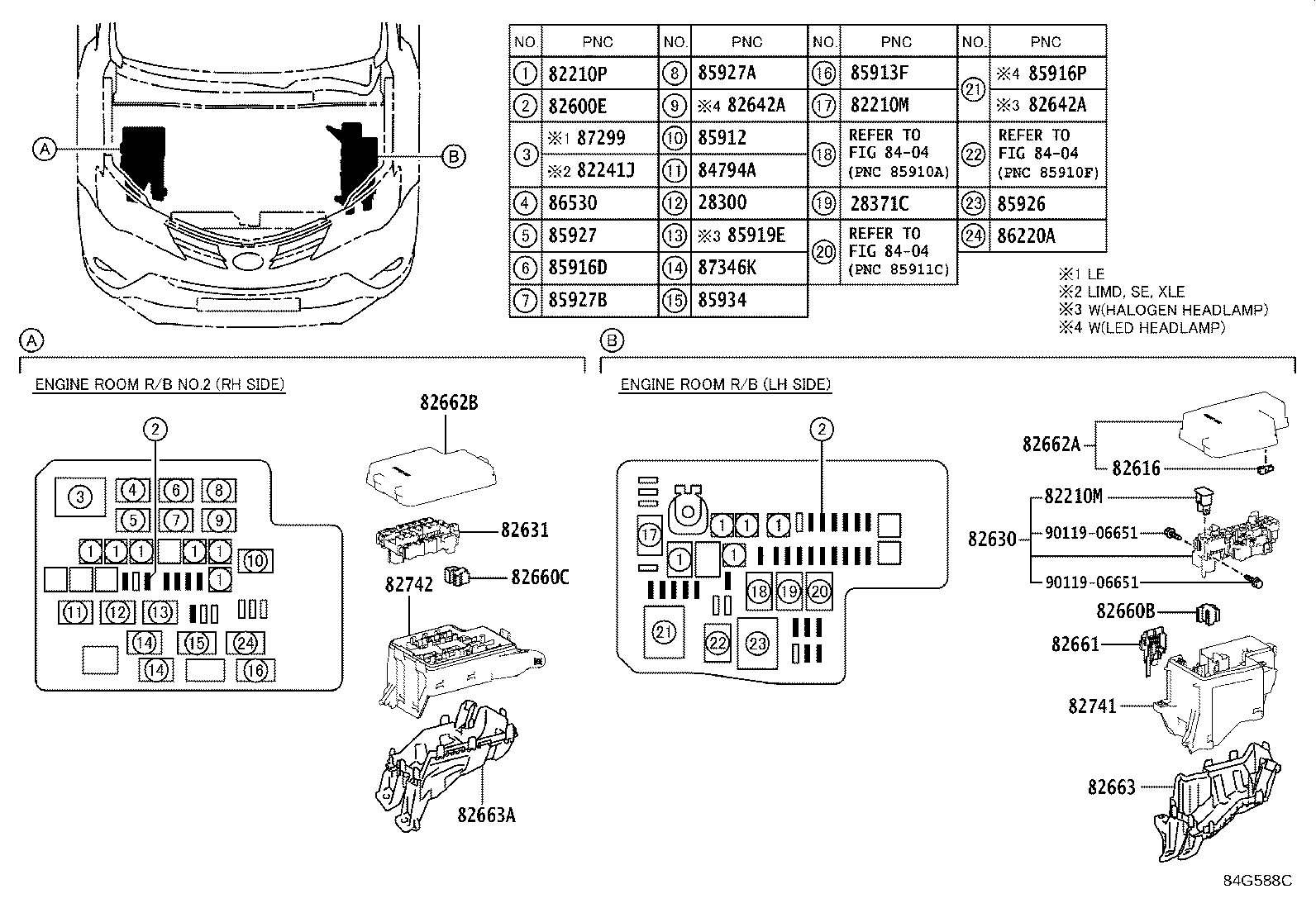

ENGINE ROOM RELAY BLOCK

diagram 28300 28371C 82210M 82210M 82210P 82241J 82600E 82616 82630 82631 82642A 82642A 82660B 82660C 82661 82662A 82662B 82663 82663A 82741 82742 8404 8404 8404 84794A 85912 85913F 85916D 85916P 85919E 85926 85927 85927A 85927B 85934 86220A 86530 87299 87346K 9011906651 9011906651
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-0A010

2ARFE..ASA4#

 1
28300-0A011

2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND

 1
28300-0A010

2ARFE..ASA4#

 1
28371C - RELAY, IGNITION, NO.2
90080-87026

2ARFE..ASA4#

 1
90080-87026

2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND

 1
82210M - FUSIBLE LINK
90982-08286

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

140A,TERM.:MALE,RBR

 1
90982-08274

ASA4#

120A,TERM.:MALE,WHT

 1
82210M - FUSIBLE LINK
90982-08286

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

140A,TERM.:MALE,RBR

 1
90982-08274

ASA4#

120A,TERM.:MALE,WHT

 1
82210P - ENGINE ROOM FUSIBLE LINK
90982-08295

ASA4#

30A,TERM.:FEMALE,PNK

 1
90982-08296

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

50A,TERM.:FEMALE,RED

 1
90982-08305

ASA4#

80A,TERM.:FEMALE,BLK

 1
90982-08295

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

30A,TERM.:FEMALE,PNK

 1
90982-08296

ASA4#

50A,TERM.:FEMALE,RED

 1
90982-08305

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

80A,TERM.:FEMALE,BLK

 1
82241J - PIN, SHORT
82241-42010

ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA

 1
82241-42010

ASA4#..LIMD,XLE

 1
82600E - ENGINE ROOM FUSE
90982-09021

ASA4#

10A,MINI FUSE,RED

 1
90982-09022

ASA4#

15A,MINI FUSE,BLUE

 1
90982-09019

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

5A,MINI FUSE,TAN

 1
90982-09023

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

20A,MINI FUSE,YELLOW

 1
90982-09023

ASA4#

20A,MINI FUSE,YELLOW

 1
90982-09025

ASA4#

30A,MINI FUSE,GRN

 1
90982-09022

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

15A,MINI FUSE,BLUE

 1
90982-09021

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

10A,MINI FUSE,RED

 1
90982-09020

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

7.5A,MINI FUSE,BROWN

 1
90982-09020

ASA4#

7.5A,MINI FUSE,BROWN

 1
90982-09025

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

30A,MINI FUSE,GRN

 1
82616 - PULLER, FUSE
82616-58010

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82616-58010

ASA4#

 1
82630 - HOLDER ASSY, FUSE
82630-42020

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82630-42030

ASA4#

 1
82631 - HOLDER, FUSE
82631-42060

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82642A - RELAY, RUNNING LIGHT
82642-60020

ASA4#..USA

 1
82642-52030

ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE

 1
90080-87026

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED & WITH(*AHB)

 1
90080-87026

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED

 1
82642A - RELAY, RUNNING LIGHT
82642-60020

ASA4#..USA

 1
82642-52030

ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE

 1
90080-87026

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED & WITH(*AHB)

 1
90080-87026

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED

 1
82660B - BLOCK ASSY, RELAY
82660-0H070

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED & WITH(*AHB)

 1
82660-60170

ASA4#..USA

 1
82660-52130

ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE

 1
82660-0H070

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED

 1
82660C - BLOCK ASSY, RELAY
82660-42060

ASA4#

 1
82660-52010

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-42040

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82661-42040

ASA4#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-0R140

ASA4#

 1
82662-0R160

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-0R191

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82662-0R190

ASA4#

 1
82662-0R150

ASA4#

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-42100

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82663-42100

ASA4#

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-42110

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82663-42120

ASA4#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-42020

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82741-42020

ASA4#

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-42031

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
82741-42040

ASA4#

 1
85912 - RELAY, DEFOGGER
90080-87026

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
85913F - RELAY, STEERING HEATER
90080-87026

ASA4#..LIMD..USA

WITH(FOOT LAMP)

 1
85916D - RELAY, FOG LAMP
90080-87026

ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA

 1
90080-87026

ASA4#..LIMD,XLE

 1
85916P - RELAY, HEADLAMP
90080-87024

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED & WITH(*AHB)

 1
90080-87024

ASA4#

 1
90080-87024

ASA44..LIMD;ASA42..LIMD..USA

HEADLAMP-LED

 1
85919E - RELAY, STOP LAMP
90084-98032

ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE

 1
85926 - RELAY, HEADLAMP DIMMER
90080-87024

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
85927 - RELAY, COOLING FAN
90080-87026

ASA4#

(L)

 1
90987-02027

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

(J)

 1
90080-87026

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

(L)

 1
90987-02027

ASA4#

(J)

 1
85927A - RELAY, COOLING FAN, NO.2
90987-04004

ASA4#

(J)

 1
90987-04004

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

(J)

 1
90084-98032

ASA4#

(L)

 1
90084-98032

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

(L)

 1
85927B - RELAY, COOLING FAN, NO.3
90080-87026

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
90080-87026

ASA4#

(L)

 1
90987-02027

ASA4#

(J)

 1
85934 - RELAY, MAGNET-CLUTCH
90080-87026

ASA42;ASA44..LIMD,XLE

 1
86530 - RELAY ASSY, HORN
90080-87026

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 1
90080-87026

ASA4#

 1
87346K - RELAY, PTC HEATER
90080-87026

ASA44;ASA42..USA;ASA42..(LE,XLE)..CND

 2
90080-87026

ASA4#

 2
Common parts
90119-06651
Linked diagrams
8404
