ASA44L-CNTGKA (2015)

Toyota Rav4 (Nap)

Production Nov 2015 - Nov 2018
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

Click highlighted areas on diagram

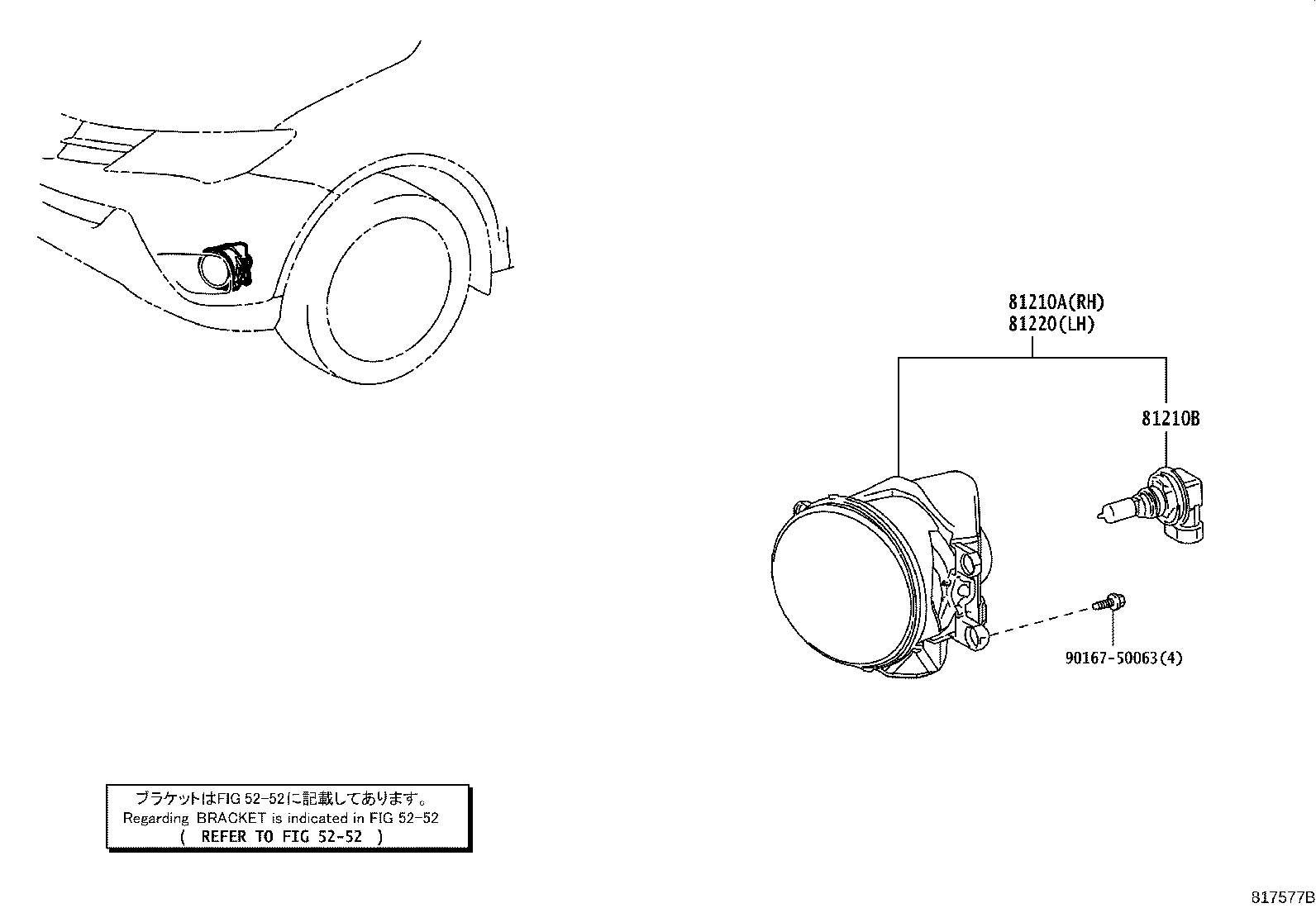

diagram 5252 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0R020

ASA4#..LIMD,XLE

TYPE A:REFER ILLUST.

 1
81210-60180

ASA4#..LIMD,XLE

TYPE B:REFER ILLUST.

 1
81210-02160

ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA

 1
81210B - BULB, FOG LAMP
90981-13090

ASA4#..LIMD,XLE

12V 19W,TYPE B:REFER ILLUST.

 2
90981-13090

ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA

12V 19W

 2
90981-WD017

ASA4#..LIMD,XLE

12V 19W,TYPE A:REFER ILLUST.

 2
81220 - LAMP ASSY, FOG, LH
81220-02160

ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA

 1
81220-60100

ASA4#..LIMD,XLE

TYPE B:REFER ILLUST.

 1
81220-0R020

ASA4#..LIMD,XLE

TYPE A:REFER ILLUST.

 1
Common parts
90167-50063
Linked diagrams
5252
