ASA44L-CNTGKA (2015)
Toyota Rav4 (Nap)
(1511- )LIMD,SE

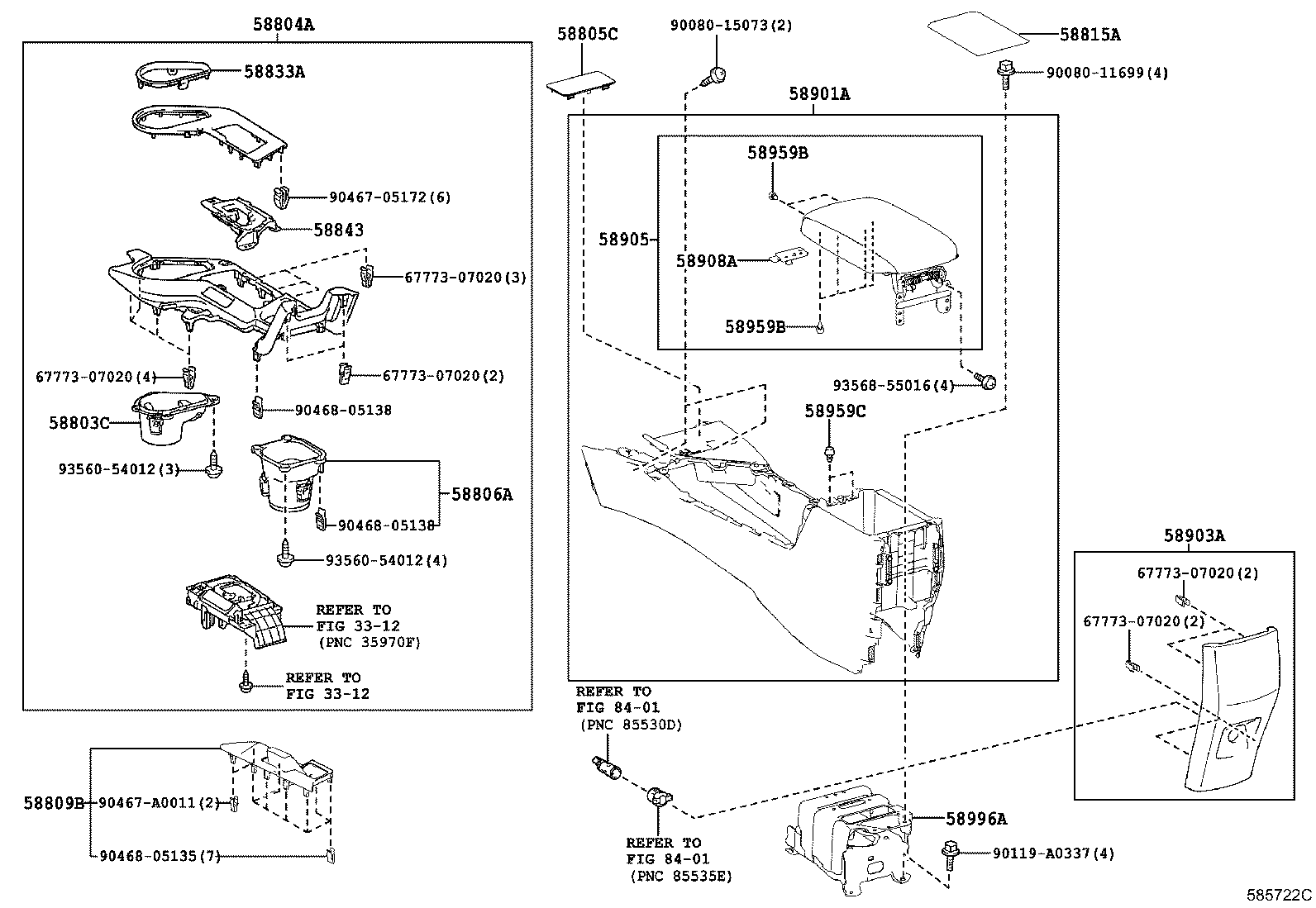

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-0R010C0 |
ASA4#..LIMD WITH(FOOT LAMP),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58803-0R010C0 |
ASA44..LIMD,SE;ASA44..XLE..USA;ASA42..(LIMD,SE,XLE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0R030C0 |
ASA4#..LIMD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58804-0R200B0 |
ASA4#..LIMD WITH(FOOT LAMP),SILVER/SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 58804-0R120B1 |
ASA44..LIMD;ASA42..LIMD..USA SILVER/SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-0R030C0 |
ASA4#..LIMD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58805-0R040C0 |
ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-0R010C0 |
ASA44..LIMD,SE;ASA44..XLE..USA;ASA42..(LIMD,SE,XLE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58806-0R010C0 |
ASA4#..LIMD WITH(FOOT LAMP),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58809B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58809-0R010C1 |
ASA4#..LIMD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58809-0R011C1 |
ASA44..LIMD;ASA44..XLE..USA;ASA42..(LIMD,XLE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-0R030 |
ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
1 | ||
| 58815-0R030 |
ASA4# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-0R080B1 |
ASA44..LIMD;ASA44..XLE..USA;ASA42..(LIMD,XLE)..USA SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 58833-0R080B1 |
ASA4#..LIMD WITH(FOOT LAMP),SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-0R060B1 |
ASA4#..LIMD WITH(FOOT LAMP),SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 58843-0R060B1 |
ASA44..LIMD;ASA44..XLE..USA;ASA42..(LIMD,XLE)..USA SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-0R040C0 |
ASA4#..LIMD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58901-0R100C0 |
ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-0R020C0 |
ASA4#..LIMD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58903-0R050C0 |
ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-0R100C0 |
ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58905-0R040C0 |
ASA4#..LIMD BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-0R030 |
ASA4#..LIMD |
1 | ||
| 58908-0R040 |
ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-0R010 |
ASA4#..LIMD |
4 | ||
| 58959-35010 |
ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA |
6 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-0R010 |
ASA4#..LIMD |
4 | ||
| 58959-35010 |
ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA |
6 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-35010 |
ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
2 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-0R030 |
ASA4# |
1 | ||
| 58996-0R050 |
ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
1 | ||
| Common parts | ||||
| 67773-07020 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90119-A0337 | ||||
| 90467-05172 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
