ASA42L-CNTXKK (2013)
Toyota Rav4 (Nap)

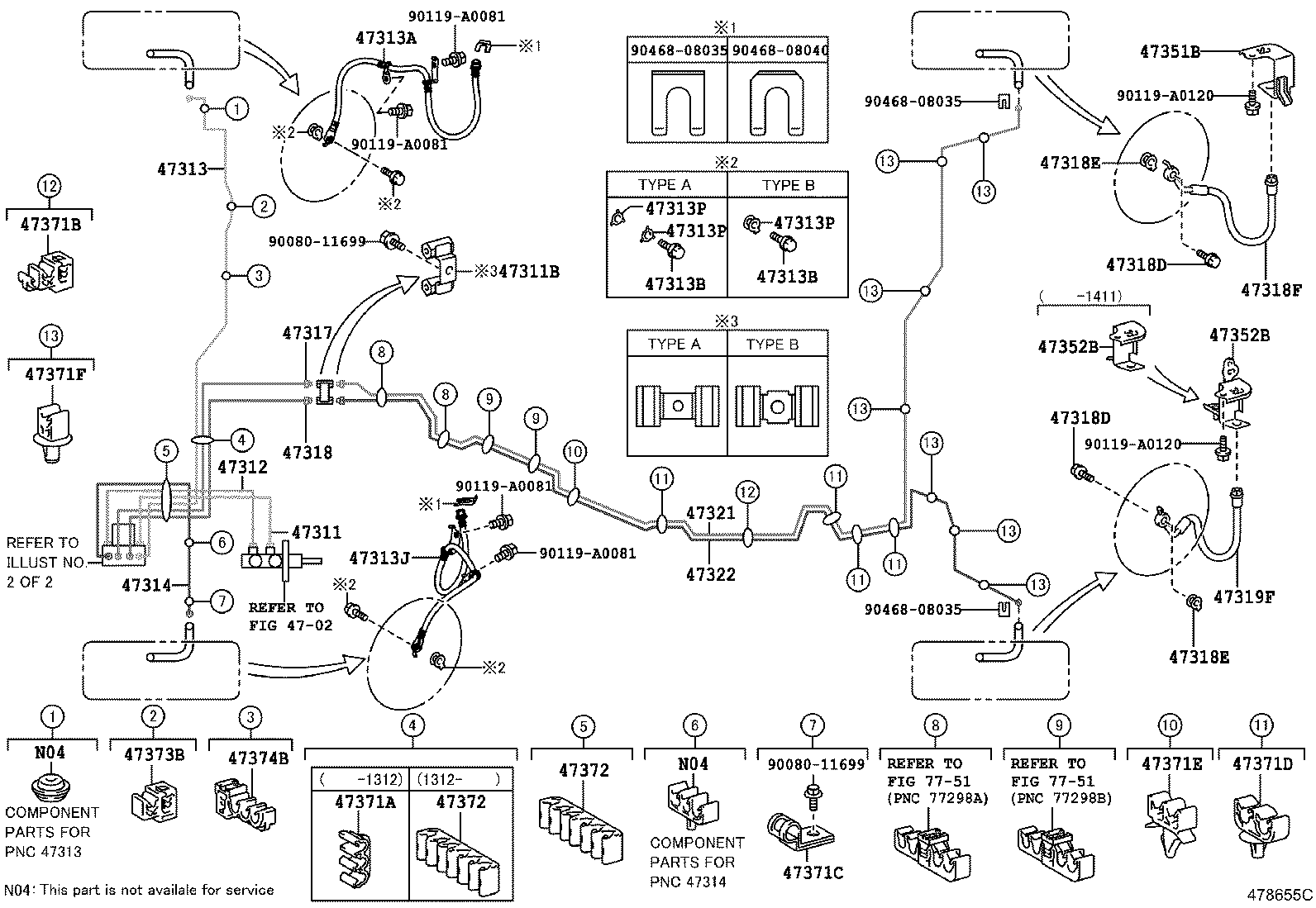

ILLUST NO. 1 OF 2(1301-1511)
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0R010 |
ASA4# |
1 | ||
| 47311-0R060 |
ASA4# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ASA4# TYPE A:REFER ILLUST. |
1 | ||
| 90412-10285 |
ASA4# TYPE B:REFER ILLUST. |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0R050 |
ASA4# |
1 | ||
| 47312-0R010 |
ASA4# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0R010 |
ASA4# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2079 |
ASA4# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ASA4# TYPE B:REFER ILLUST. |
2 | ||
| 90401-10045 |
ASA4# TYPE A:REFER ILLUST. |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ASA4# TYPE B:REFER ILLUST. |
2 | ||
| 90401-10045 |
ASA4# TYPE A:REFER ILLUST. |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2080 |
ASA4# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ASA4# TYPE A:REFER ILLUST. |
4 | ||
| 47389-50020 |
ASA4# TYPE B:REFER ILLUST. |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ASA4# TYPE A:REFER ILLUST. |
4 | ||
| 47389-50020 |
ASA4# TYPE B:REFER ILLUST. |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
ASA4# TYPE A:REFER ILLUST. |
4 | ||
| 47389-50020 |
ASA4# TYPE B:REFER ILLUST. |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0R070 |
ASA4# |
1 | ||
| 47314-0R100 |
ASA4# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0R010 |
ASA4# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0R010 |
ASA4# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ASA4# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ASA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA4# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ASA4# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2081 |
ASA4# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2082 |
ASA4# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0R050 |
ASA4# |
1 | ||
| 47321-0R010 |
ASA4# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0R010 |
ASA4# |
1 | ||
| 47322-0R050 |
ASA4# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-0R010 |
ASA4# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-0R010 |
ASA4# |
1 | ||
| 47352-0R031 |
ASA4# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-0R010 |
ASA4# |
1 | ||
| 47352-0R031 |
ASA4# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ASA4# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ASA4# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ASA4# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ASA4# |
4 | ||
| 90949-01E02 |
ASA4# |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ASA4# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
ASA4# |
7 | ||
| 90949-01E01 |
ASA4# |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ASA4# |
1 | ||
| 90949-01E06 |
ASA4# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ASA4# |
1 | ||
| 90949-01E06 |
ASA4# |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C82 |
ASA4# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D05 |
ASA4# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90119-A0081 | ||||
| 90119-A0120 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

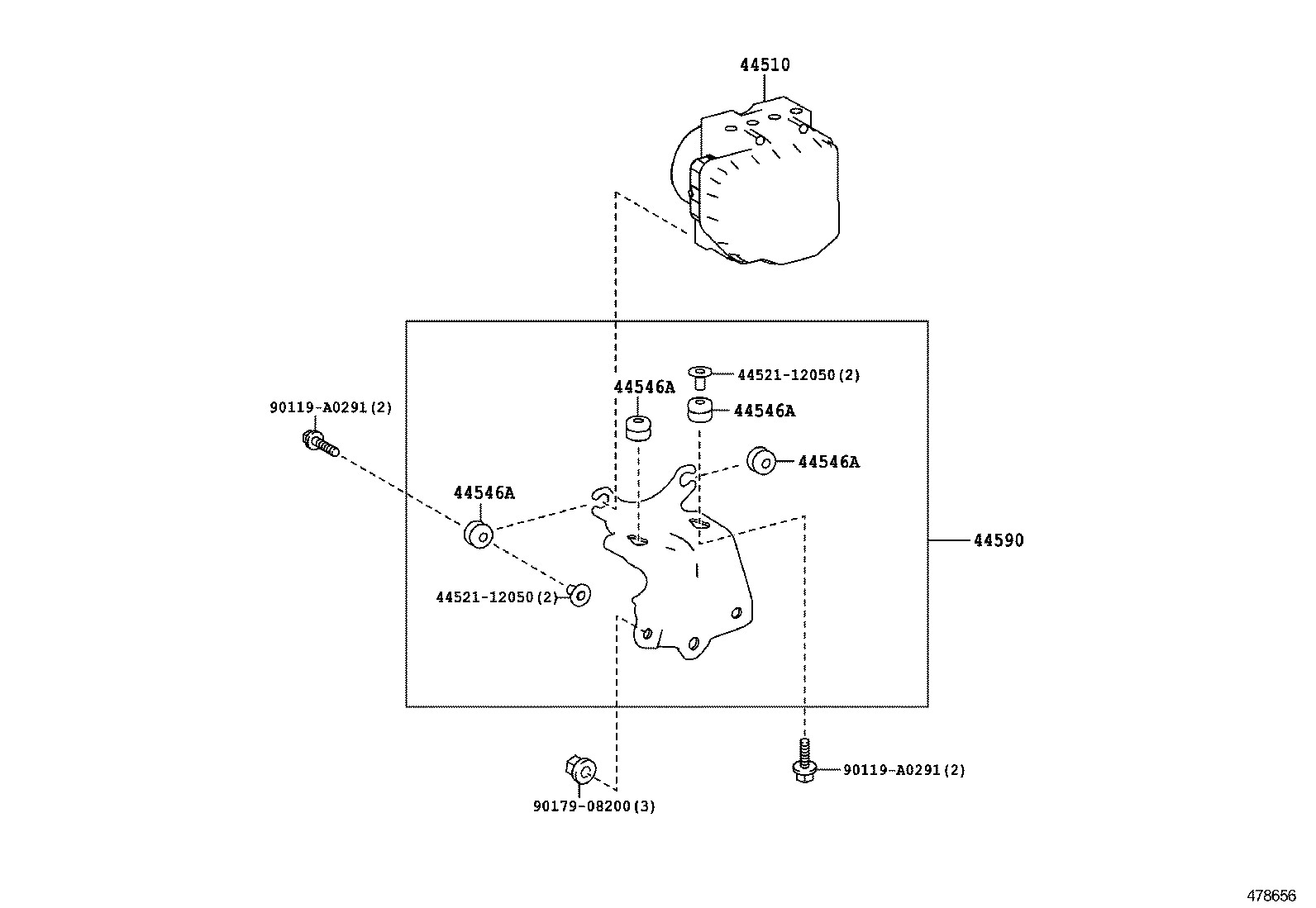

ILLUST NO. 2 OF 2(1301-1511)
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0R151 |
ASA42..LE |
1 | ||
| 44050-0R150 |
ASA42..LE |
1 | ||
| 44050-0R152 |
ASA42..LE |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA4# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA4# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA4# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ASA4# |
4 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0R010 |
ASA4# |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-A0291 | ||||
| 90179-08200 | ||||
