ASA42L-CNTXKA (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301-1511)

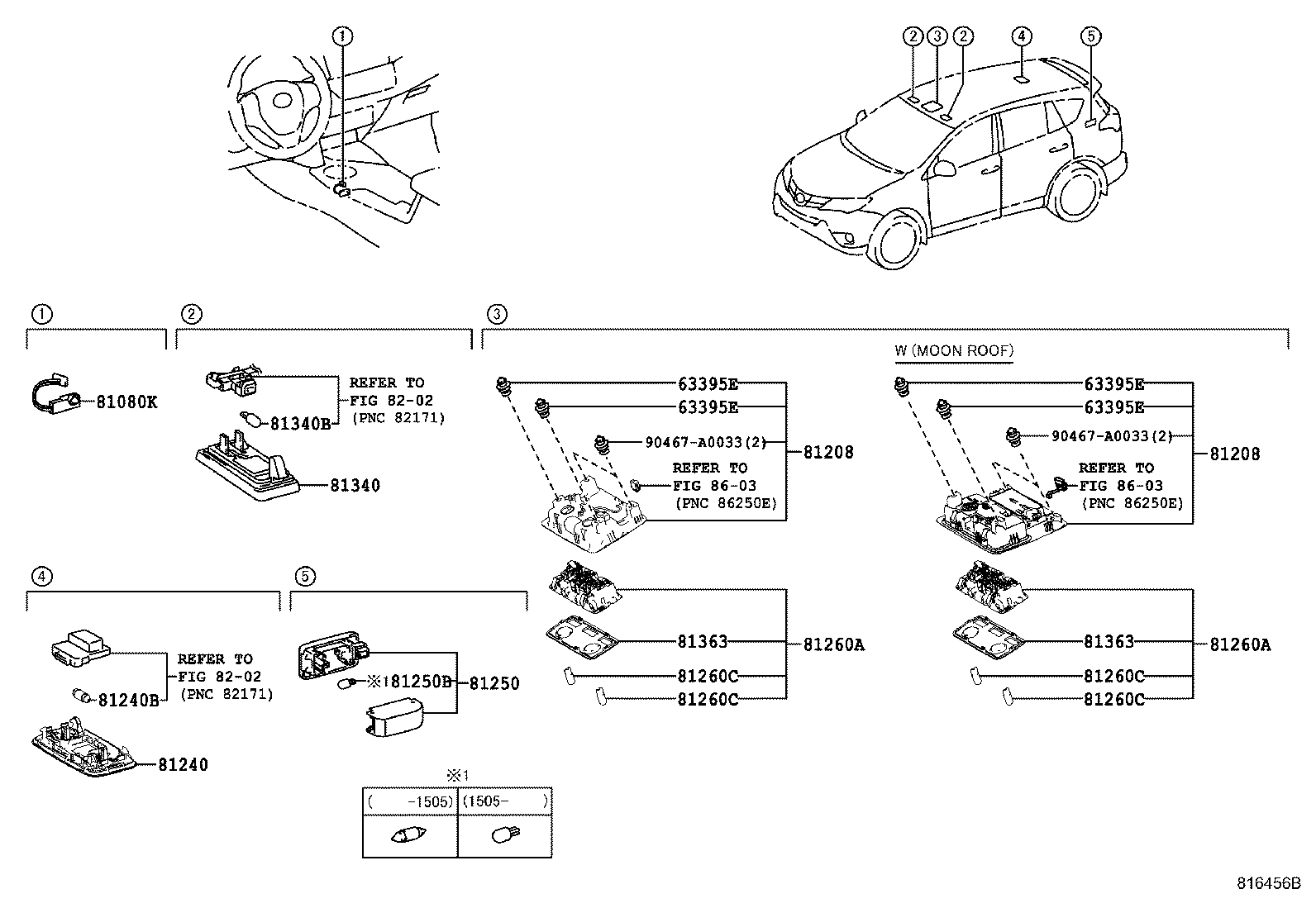

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81080K 81208 81208 81240 81240B 81250 81250B 81260A 81260A 81260C 81260C 81260C 81260C 81340 81340B 81363 81363 8202 8202 8603 8603 90467A0033 90467A0033
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
63395-12150

ASA4#

 2
90467-A0033

ASA4#

 2
63395E - CLIP(FOR MAP LAMP)
63395-12150

ASA4#

 2
90467-A0033

ASA4#

 2
63395E - CLIP(FOR MAP LAMP)
63395-12150

ASA4#

 2
90467-A0033

ASA4#

 2
63395E - CLIP(FOR MAP LAMP)
63395-12150

ASA4#

 2
90467-A0033

ASA4#

 2
81208 - LAMP SUB-ASSY, MAP
81208-0R010B0

ASA4#..LE

LT.GRAY,TRIM1#,2#,4#

 1
81208 - LAMP SUB-ASSY, MAP
81208-0R010B0

ASA4#..LE

LT.GRAY,TRIM1#,2#,4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-35020B0

ASA4#..LE,XLE

LT.GRAY,TRIM1#,2#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ASA4#

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ASA4#

 1
81330-58010

ASA4#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ASA4#

12V 5W

 1
99132-12050

ASA4#

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-52120B0

ASA4#..LE,XLE

LT.GRAY,TRIM1#,2#,4#

 1
81260A - LAMP ASSY, MAP
81260-52120B0

ASA4#..LE,XLE

LT.GRAY,TRIM1#,2#,4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA4#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA4#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA4#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA4#

12V 5W

 2
81340 - LAMP ASSY, VANITY
81340-30110

ASA4#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ASA4#

12V 8W

 2
81363 - LENS, ROOM LAMP, OUTER
81363-52010

ASA4#

 1
81363 - LENS, ROOM LAMP, OUTER
81363-52010

ASA4#

 1
Common parts
90467-A0033
Linked diagrams
8202
8603
