ASA42L-CNTXKA (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )

Click highlighted areas on diagram

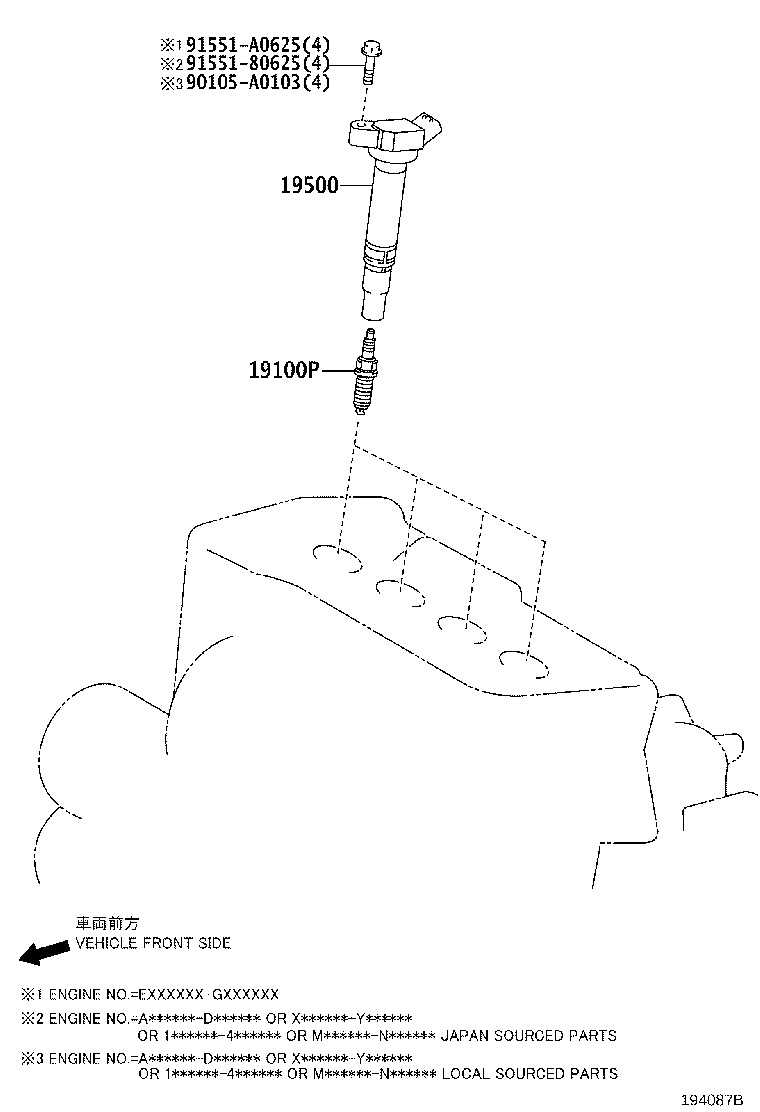

diagram 19100P 19500 90105A0103 9155180625 91551A0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01233

2ARFE..ASA4#

SK16HR11,*265

 4
90919-A1003

2ARFE..ASA4#

SK16HR11,*364 OR *390

 4
19500 - COIL ASSY, IGNITION
90919-02256

2ARFE..ASA4#

*265

 4
90919-A2005

2ARFE..ASA4#

*364 OR *390

 4
Common parts
90105-A0103
91551-80625
91551-A0625
