ASA42L-CNTXKA (2013)
Toyota Rav4 (Nap)

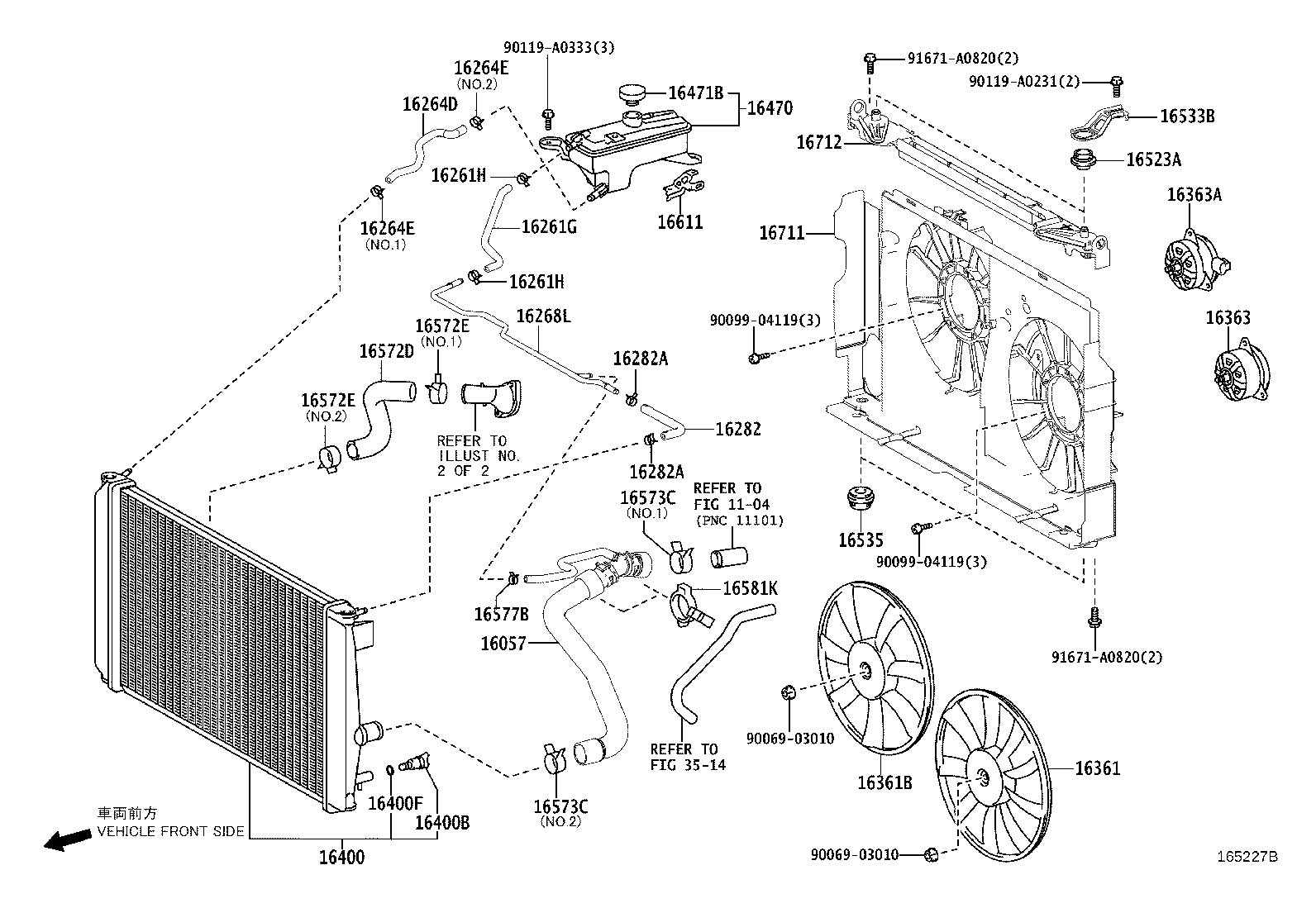

ILLUST NO. 1 OF 2(1301-1511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16057-0V011 |
2ARFE..ASA4# |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-36050 |
2ARFE..ASA4# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2ARFE..ASA4# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2ARFE..ASA4# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36040 |
2ARFE..ASA4# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96134-51700 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
2ARFE..ASA4# NO.1:REFER ILLUST. |
1 | ||
| 96136-41901 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96134-51700 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
2ARFE..ASA4# NO.1:REFER ILLUST. |
1 | ||
| 96136-41901 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-0V100 |
2ARFE..ASA4# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36030 |
2ARFE..ASA4# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ARFE..ASA4# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ARFE..ASA4# |
2 | ||
| 16361 - FAN | ||||
| 16361-0V330 |
2ARFE..ASA4# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0V340 |
2ARFE..ASA4# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-36100 |
2ARFE..ASA4# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-36110 |
2ARFE..ASA4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0V030 |
2ARFE..ASA4# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2ARFE..ASA4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ARFE..ASA4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0V010 |
2ARFE..ASA4# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
2ARFE..ASA4# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
2ARFE..ASA4# |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-26070 |
2ARFE..ASA4# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0V010 |
2ARFE..ASA4# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0V180 |
2ARFE..ASA4# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-A0020 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 90466-A0024 |
2ARFE..ASA4# NO.1:REFER ILLUST. |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-A0020 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 90466-A0024 |
2ARFE..ASA4# NO.1:REFER ILLUST. |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-A0020 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 90466-A0024 |
2ARFE..ASA4# NO.1:REFER ILLUST. |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-A0020 |
2ARFE..ASA4# NO.2:REFER ILLUST. |
1 | ||
| 90466-A0024 |
2ARFE..ASA4# NO.1:REFER ILLUST. |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90467-13128 |
2ARFE..ASA4# |
1 | ||
| 96136-41501 |
2ARFE..ASA4# |
1 | ||
| 16581K - CLAMP, SUB-RADIATOR HOSE, NO.1 | ||||
| 16581-0V020 |
2ARFE..ASA4# |
2 | ||
| 16581-36010 |
2ARFE..ASA4# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-0V010 |
2ARFE..ASA4# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0V210 |
2ARFE..ASA4# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0V020 |
2ARFE..ASA4# |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90099-04119 | ||||
| 90119-A0231 | ||||
| 90119-A0333 | ||||
| 91671-A0820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 3514 | ||||

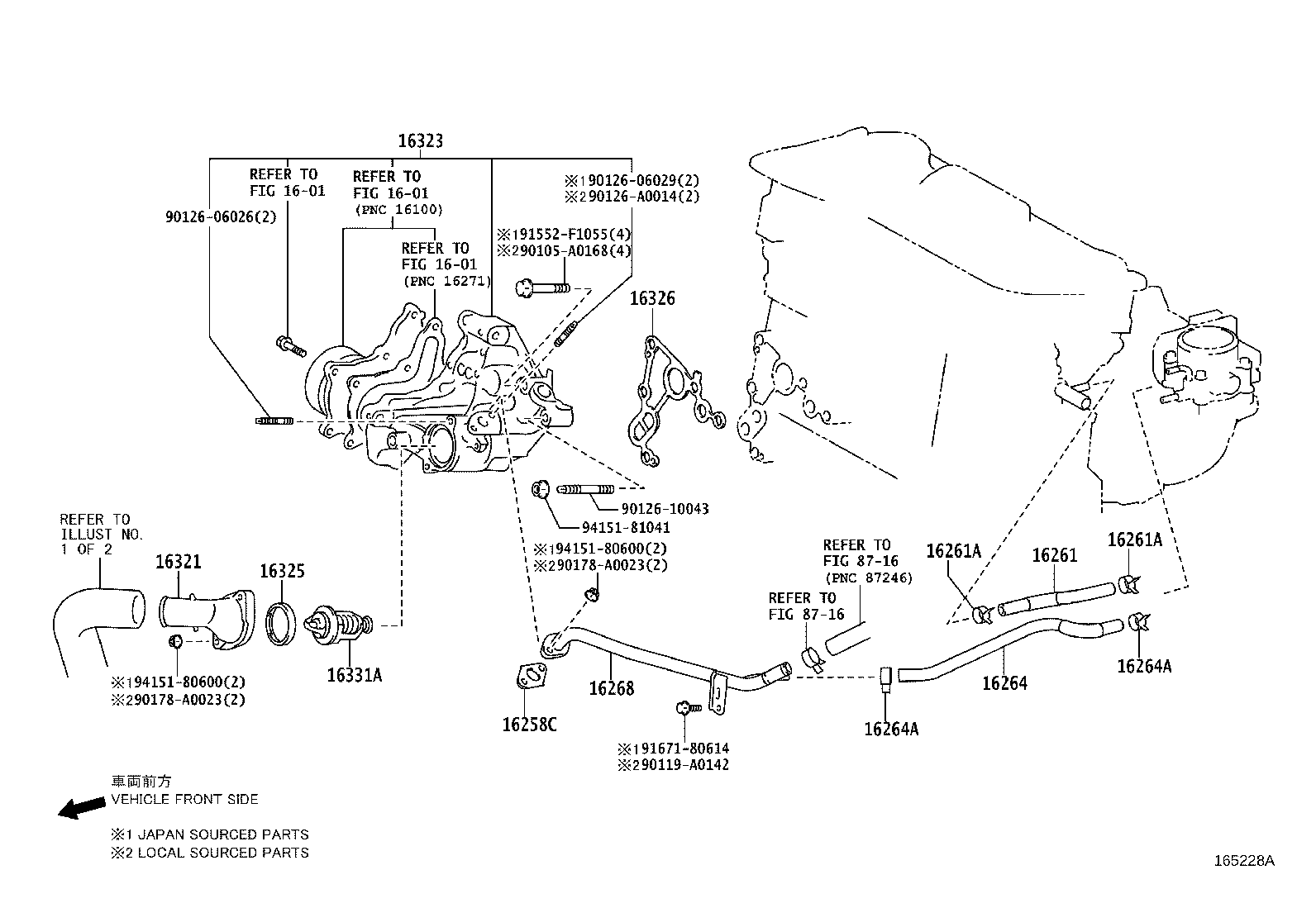

ILLUST NO. 2 OF 2(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0H010 |
2ARFE..ASA4# *364 OR *390 |
1 | ||
| 16258-36010 |
2ARFE..ASA4# *265 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0V020 |
2ARFE..ASA4# *364 OR *390 |
1 | ||
| 16261-36010 |
2ARFE..ASA4# *265 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ARFE..ASA4# *265,(J),*364 OR *390 |
2 | ||
| 90466-A0017 |
2ARFE..ASA4# (L),*364 OR *390 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ARFE..ASA4# *265,(J),*364 OR *390 |
2 | ||
| 90466-A0017 |
2ARFE..ASA4# (L),*364 OR *390 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36010 |
2ARFE..ASA4# *265 |
1 | ||
| 16264-0V020 |
2ARFE..ASA4# *364 OR *390 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-A0017 |
2ARFE..ASA4# (L),*364 OR *390 |
2 | ||
| 96137-41501 |
2ARFE..ASA4# *265,(J),*364 OR *390 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-A0017 |
2ARFE..ASA4# (L),*364 OR *390 |
2 | ||
| 96137-41501 |
2ARFE..ASA4# *265,(J),*364 OR *390 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0V080 |
2ARFE..ASA4# (L),*364 OR *390 |
1 | ||
| 16268-36010 |
2ARFE..ASA4# *265,(J),*364 OR *390 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0V010 |
2ARFE..ASA4# *364 OR *390 |
1 | ||
| 16321-36010 |
2ARFE..ASA4# *265 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-36011 |
2ARFE..ASA4# *265 |
1 | ||
| 16032-0V011 |
2ARFE..ASA4# *364 OR *390 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2ARFE..ASA4# *364 OR *390,*265 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36010 |
2ARFE..ASA4# *364 OR *390,*265 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
2ARFE..ASA4# *WAX 82-95,*265,(J),*364 OR *390 |
1 | ||
| 90916-A3003 |
2ARFE..ASA4# *WAX 82-95,(L),*364 OR *390 |
1 | ||
| Common parts | ||||
| 90105-A0168 | ||||
| 90119-A0142 | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-10043 | ||||
| 90126-A0014 | ||||
| 90178-A0023 | ||||
| 91552-F1055 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-81041 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 8716 | ||||
