Toyota Rav4 (nap) ASA42 ANTENNA - JDM Part Detective

ASA42L-CNTMKK (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015

Engine 2ARFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

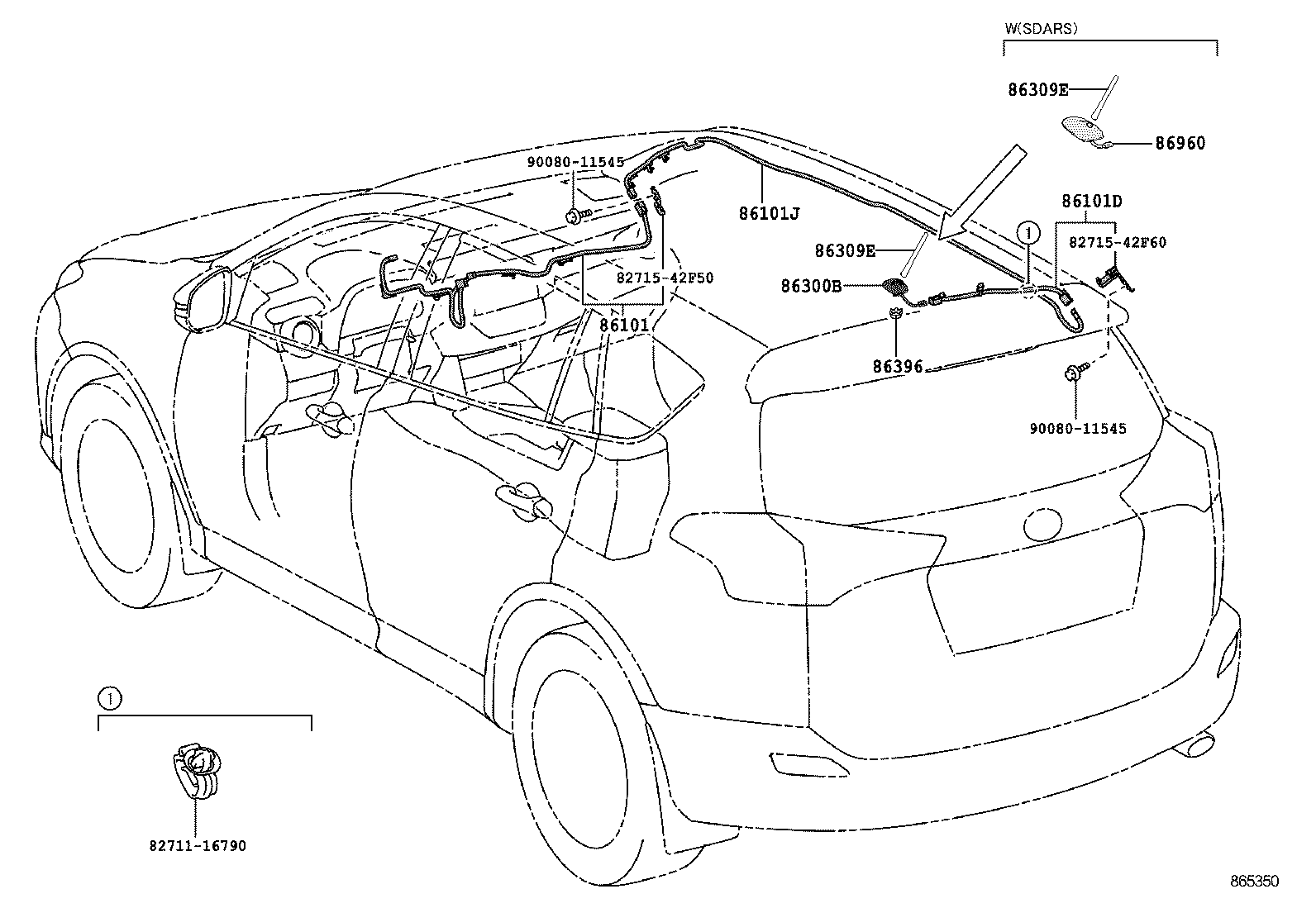

(1301-1504)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86101 - CORD SUB-ASSY, ANTENNA
86101-0R030	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86101-0R172	ASA4#..LIMD,XLE	12/2013 - 07/2014	1
86101-0R171	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86101-0R172	ASA4#..LE..CND AUDIO-*DA	12/2013 - 07/2014	1
86101-0R173	ASA4#..LE..CND AUDIO-*DA	07/2014 - 11/2015	1
86101-0R030	ASA4#..LE	01/2013 - 11/2015	1
86101-0R173	ASA4#..LIMD,XLE	07/2014 - 11/2015	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-0R240	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86101-0R250	ASA4#..LIMD,XLE	12/2013 - 04/2015	1
86101-0R250	ASA4#..LE AUDIO-*DA	12/2013 - 04/2015	1
86101-0R240	ASA4#..LE	01/2013 - 04/2015	1
86101-0R250	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0R210	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86101-0R200	ASA4#..LE	01/2013 - 04/2015	1
86101-0R210	ASA4#..LIMD,XLE	12/2013 - 04/2015	1
86101-0R201	ASA4#..LE	04/2015 - 11/2015	1
86101-0R210	ASA4#..LE..CND AUDIO-*DA	12/2013 - 04/2015	1
86101-0R211	ASA4#..LIMD,XLE	04/2015 - 11/2015	1
86101-0R200	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86101-0R211	ASA4#..LE..CND AUDIO-*DA	04/2015 - 11/2015	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0R010	ASA4#..LE	01/2013 - 04/2015	1
86300-0R011	ASA4#..LE	04/2015 - 11/2015	1
86300-0R010	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0R010	ASA4#..LE	01/2013 - 11/2015	1
86309-02090	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86309-02090	ASA4#..LIMD,XLE	12/2013 - 11/2015	1
86309-0R010	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86309-02090	ASA4#..LE..CND AUDIO-*DA	12/2013 - 11/2015	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0R010	ASA4#..LE	01/2013 - 11/2015	1
86309-02090	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86309-02090	ASA4#..LIMD,XLE	12/2013 - 11/2015	1
86309-0R010	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86309-02090	ASA4#..LE..CND AUDIO-*DA	12/2013 - 11/2015	1
86396 - NUT, ANTENNA
86396-47010	ASA4#	01/2013 - 11/2015	1
86960 - ANTENNA ASSY, SATELLITE RADIO
86960-0R012	ASA4#..LE..CND AUDIO-*DA	04/2015 - 11/2015	1
86960-0R011	ASA4#..LE..CND AUDIO-*DA	12/2013 - 04/2015	1
86960-0R011	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86960-0R011	ASA4#..LIMD,XLE	12/2013 - 04/2015	1
86960-0R012	ASA4#..LIMD,XLE	04/2015 - 11/2015	1
Common parts
82711-16790
82715-42F50
82715-42F60
90080-11545

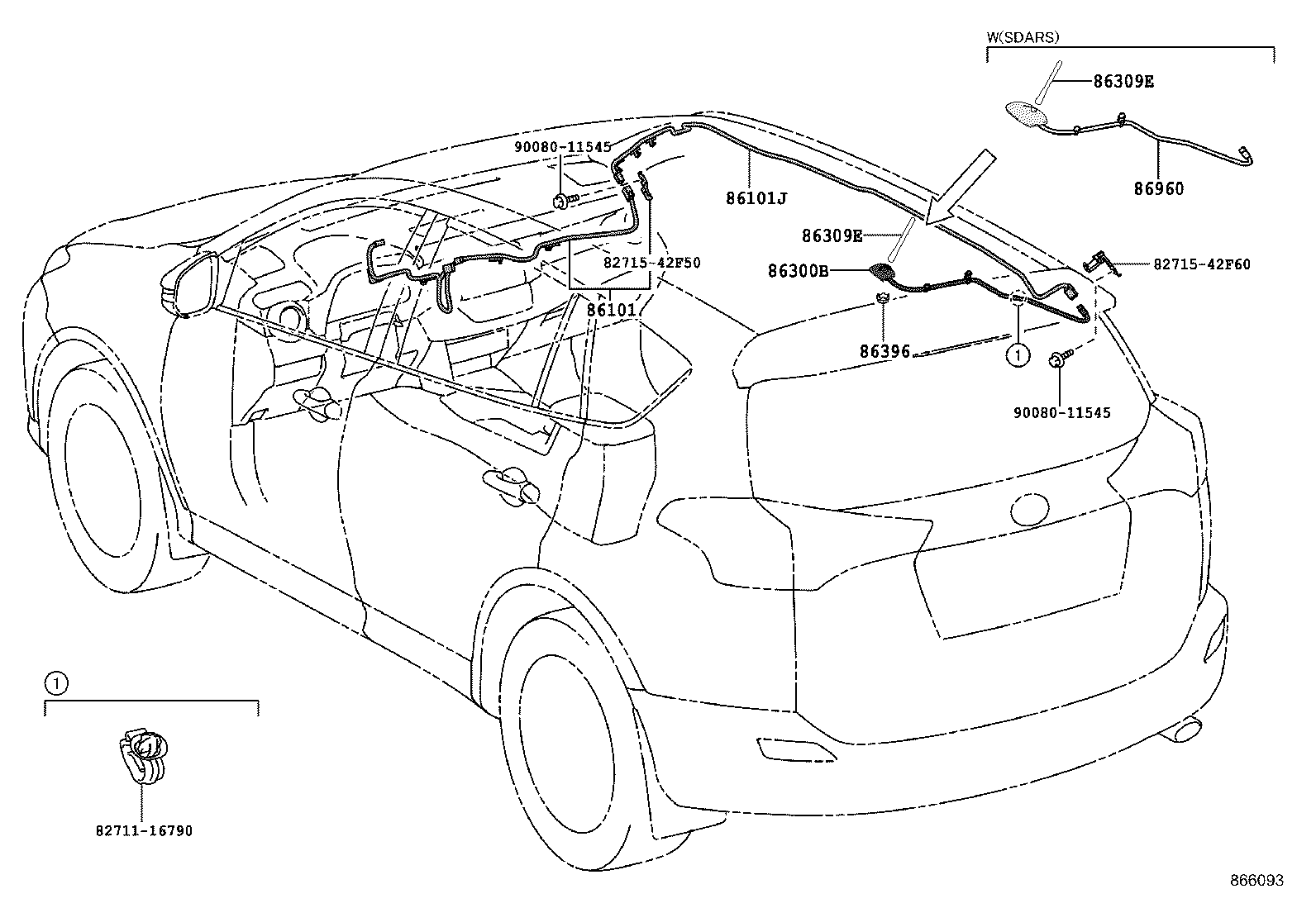

(1504-1511)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86101 - CORD SUB-ASSY, ANTENNA
86101-0R030	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86101-0R172	ASA4#..LIMD,XLE	12/2013 - 07/2014	1
86101-0R171	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86101-0R172	ASA4#..LE..CND AUDIO-*DA	12/2013 - 07/2014	1
86101-0R173	ASA4#..LE..CND AUDIO-*DA	07/2014 - 11/2015	1
86101-0R030	ASA4#..LE	01/2013 - 11/2015	1
86101-0R173	ASA4#..LIMD,XLE	07/2014 - 11/2015	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0R210	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86101-0R200	ASA4#..LE	01/2013 - 04/2015	1
86101-0R210	ASA4#..LIMD,XLE	12/2013 - 04/2015	1
86101-0R201	ASA4#..LE	04/2015 - 11/2015	1
86101-0R210	ASA4#..LE..CND AUDIO-*DA	12/2013 - 04/2015	1
86101-0R211	ASA4#..LIMD,XLE	04/2015 - 11/2015	1
86101-0R200	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86101-0R211	ASA4#..LE..CND AUDIO-*DA	04/2015 - 11/2015	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0R010	ASA4#..LE	01/2013 - 04/2015	1
86300-0R011	ASA4#..LE	04/2015 - 11/2015	1
86300-0R010	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0R010	ASA4#..LE	01/2013 - 11/2015	1
86309-02090	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86309-02090	ASA4#..LIMD,XLE	12/2013 - 11/2015	1
86309-0R010	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86309-02090	ASA4#..LE..CND AUDIO-*DA	12/2013 - 11/2015	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0R010	ASA4#..LE	01/2013 - 11/2015	1
86309-02090	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86309-02090	ASA4#..LIMD,XLE	12/2013 - 11/2015	1
86309-0R010	ASA4#..LIMD,XLE	01/2013 - 12/2013	1
86309-02090	ASA4#..LE..CND AUDIO-*DA	12/2013 - 11/2015	1
86396 - NUT, ANTENNA
86396-47010	ASA4#	01/2013 - 11/2015	1
86960 - ANTENNA ASSY, SATELLITE RADIO
86960-0R012	ASA4#..LE..CND AUDIO-*DA	04/2015 - 11/2015	1
86960-0R011	ASA4#..LE..CND AUDIO-*DA	12/2013 - 04/2015	1
86960-0R011	ASA4#..LIMD,XLE AUDIO-DA & 6SPEAKER & WITH(EXB)	01/2013 - 12/2013	1
86960-0R011	ASA4#..LIMD,XLE	12/2013 - 04/2015	1
86960-0R012	ASA4#..LIMD,XLE	04/2015 - 11/2015	1
Common parts
82711-16790
82715-42F50
82715-42F60
90080-11545
