ASA42L-CNTMKK (2013)
Toyota Rav4 (Nap)
Production
Jan 2013
-
Nov 2015
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1301- )

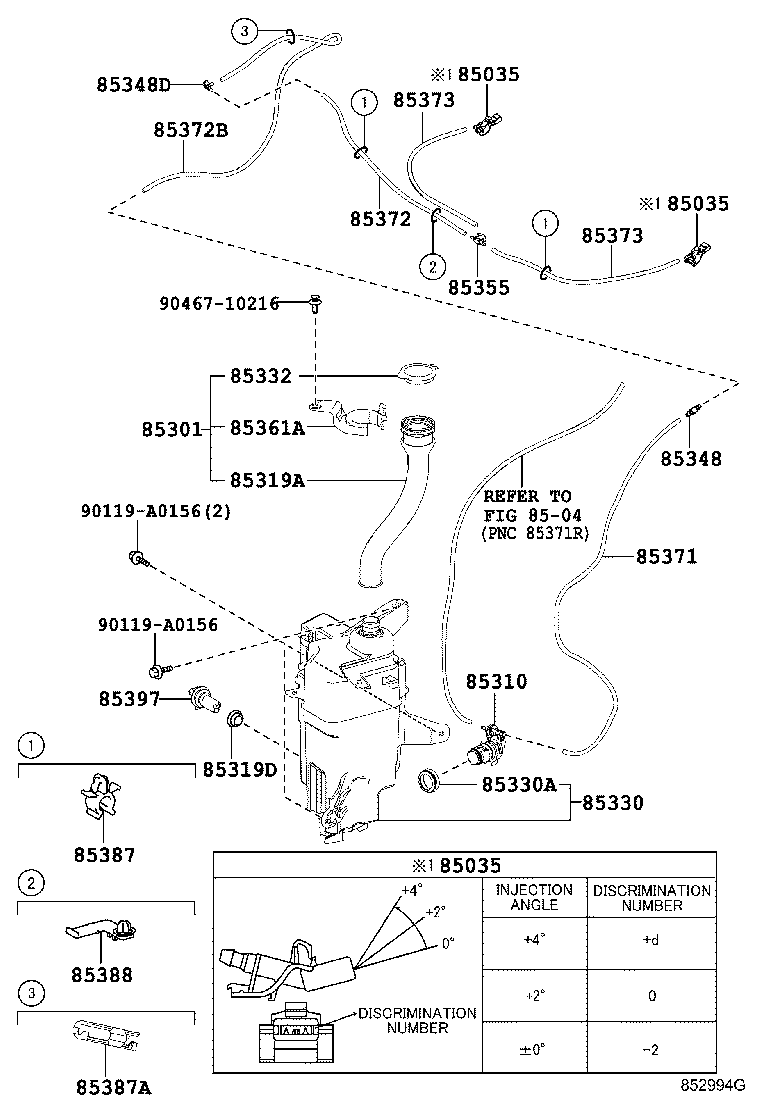

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ASA4# ANGLE 0 |
2 | ||
| 85381-12430 |
ASA4# ANGLE +4 |
2 | ||
| 85381-12420 |
ASA4# ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ASA4# ANGLE 0 |
2 | ||
| 85381-12430 |
ASA4# ANGLE +4 |
2 | ||
| 85381-12420 |
ASA4# ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ASA4# ANGLE 0 |
2 | ||
| 85381-12430 |
ASA4# ANGLE +4 |
2 | ||
| 85381-12420 |
ASA4# ANGLE +2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85316-42350 |
ASA4# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-42010 |
ASA4# |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-42230 |
ASA4# |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-AA020 |
ASA4# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0R030 |
ASA4# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ASA4# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-48060 |
ASA4# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-0E010 |
ASA4# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85375-60290 |
ASA4# |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ASA4# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-42350 |
ASA4# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33049 |
ASA4# L=720 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33173 |
ASA4# L=680 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33180 |
ASA4# L=1020 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33038 |
ASA4# L=440 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33038 |
ASA4# L=440 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 90469-07011 |
ASA4# |
2 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02260 |
ASA4# |
1 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 82711-10500 |
ASA4# |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA040 |
ASA4# |
1 | ||
| Common parts | ||||
| 90119-A0156 | ||||
| 90467-10216 | ||||
| Linked diagrams | ||||
| 8504 | ||||
