ASA42L-CNTMKK (2013)
Toyota Rav4 (Nap)
Production
Jan 2013
-
Nov 2015
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1301-1511)

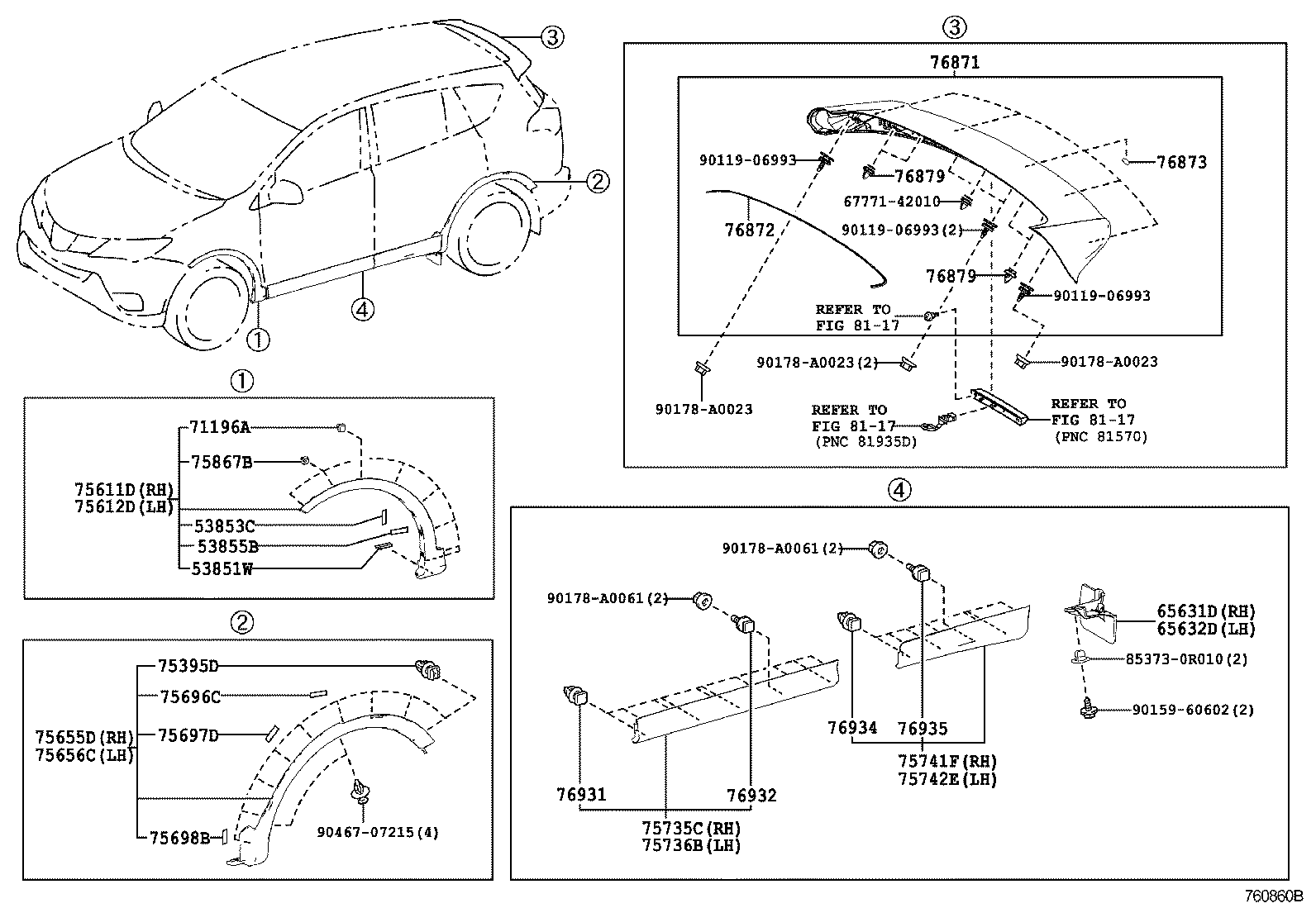

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851W - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0R050 |
ASA4# |
2 | ||
| 53853C - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-0R010 |
ASA4# |
2 | ||
| 53855B - PAD, FRONT WHEEL OPENING EXTENSION, NO.5 | ||||
| 53855-0R010 |
ASA4# |
2 | ||
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-0R030 |
ASA4# |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-0R030 |
ASA4# |
1 | ||
| 71196A - CLIP | ||||
| 76817-68010 |
ASA4# |
2 | ||
| 75395D - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 90467-08225 |
ASA4# |
18 | ||
| 75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH | ||||
| 75601-0R030 |
ASA4# |
1 | ||
| 75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH | ||||
| 75602-0R030 |
ASA4# |
1 | ||
| 75655D - MOULDING, QUARTER, OUTSIDE CENTER RH | ||||
| 75605-0R030 |
ASA4# |
1 | ||
| 75656C - MOULDING, QUARTER, OUTSIDE CENTER LH | ||||
| 75606-0R030 |
ASA4# |
1 | ||
| 75696C - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 75696-0R010 |
ASA4# |
2 | ||
| 75697D - PAD, BODY OUTSIDE MOULDING, NO.2 | ||||
| 75697-0R010 |
ASA4# |
2 | ||
| 75698B - PAD, BODY OUTSIDE MOULDING, NO.3 | ||||
| 75698-0R010 |
ASA4# |
2 | ||
| 75735C - MOULDING, FRONT DOOR OUTSIDE, LOWER RH | ||||
| 75073-0R011 |
ASA4# |
1 | ||
| 75073-0R010 |
ASA4# |
1 | ||
| 75736B - MOULDING, FRONT DOOR, OUTSIDE LOWER LH | ||||
| 75074-0R010 |
ASA4# |
1 | ||
| 75074-0R011 |
ASA4# |
1 | ||
| 75741F - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75077-0R010 |
ASA4# |
1 | ||
| 75077-0R011 |
ASA4# |
1 | ||
| 75742E - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75078-0R011 |
ASA4# |
1 | ||
| 75078-0R010 |
ASA4# |
1 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-68010 |
ASA4# |
14 | ||
| 76871 - SPOILER, REAR | ||||
| 76085-0R902G0 |
ASA4# DK GREEN MC,6V4 |
1 | ||
| 76085-0R902A0 |
ASA4# SUPER WHITE,040 |
1 | ||
| 76085-0R902A1 |
ASA4# WHITE PEARL,070 |
1 | ||
| 76085-0R902B1 |
ASA4# GRAY ME,1G3 |
1 | ||
| 76085-0R902J0 |
ASA4# GRAYISH BLUE MM,8V5 |
1 | ||
| 76085-0R902E1 |
ASA4# ORANGE ME.,4R8 |
1 | ||
| 76085-0R902E0 |
ASA4# BRONZE MM,4T3 |
1 | ||
| 76085-0R902C0 |
ASA4# BLACK,202 |
1 | ||
| 76085-0R902B0 |
ASA4# SILVER ME,1F7 |
1 | ||
| 76085-0R902J1 |
ASA4# DK.BLUE M.M.,8W7 |
1 | ||
| 76085-0R902D0 |
ASA4# RED MM,3R3 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-0R030 |
ASA4# |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-0R030 |
ASA4# |
5 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 75819-68010 |
ASA4# |
4 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 75819-68010 |
ASA4# |
4 | ||
| 76931 - RETAINER, SIDE MUDGUARD, NO.3 | ||||
| 62955-50010 |
ASA4# |
20 | ||
| 90467-A0032 |
ASA4# |
20 | ||
| 76932 - RETAINER, SIDE MUDGUARD, NO.4 | ||||
| 75392-33020 |
ASA4# |
2 | ||
| 76934 - RETAINER, SIDE MUDGUARD, NO.6 | ||||
| 90467-A0032 |
ASA4# |
14 | ||
| 62955-50010 |
ASA4# |
14 | ||
| 76935 - RETAINER, SIDE MUDGUARD, NO.7 | ||||
| 75392-33020 |
ASA4# |
2 | ||
| Common parts | ||||
| 67771-42010 | ||||
| 85373-0R010 | ||||
| 90119-06993 | ||||
| 90159-60602 | ||||
| 90178-A0023 | ||||
| 90178-A0061 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 8117 | ||||
