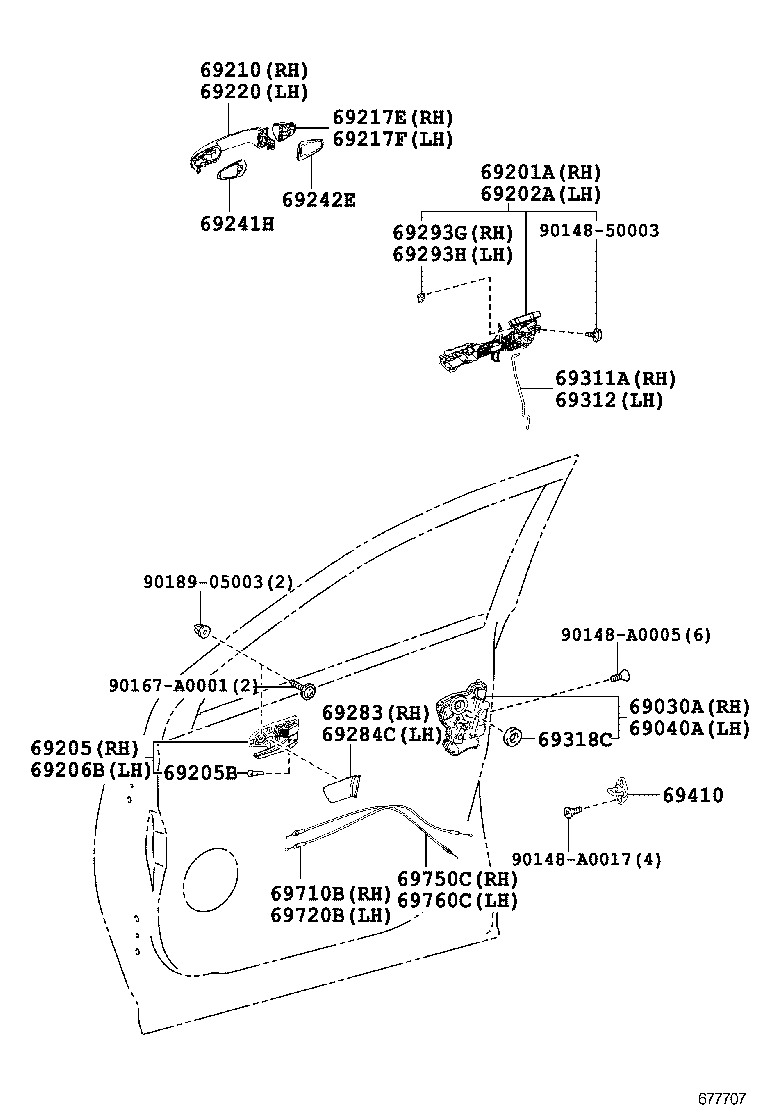

ASA42L-CNTMKK (2013)
Toyota Rav4 (Nap)
(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-0C050 |
ASA4# |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-0C050 |
ASA4# |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0R010 |
ASA4# |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0R010 |
ASA4# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-06160C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 69205-0R030C0 |
ASA4#..LE BLACK,TRIM1#,2#,4# |
1 | ||
| 69205-0R030C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90080-54005 |
ASA4# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-06150C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 69206-0R030C0 |
ASA4#..LE BLACK,TRIM1#,2#,4# |
1 | ||
| 69206-0R030C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-0R020J0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69211-0R020G0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND DK.GREEN MC.,6V4 |
1 | ||
| 69211-0R030 |
ASA4#..LE..CND NO PAINT REQ. |
1 | ||
| 69211-0R020J0 |
ASA4#..LE..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69211-0R020A0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SUPER WHITE 2,040 |
1 | ||
| 69211-0R020E0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BRONZE M.M.,4T3 |
1 | ||
| 69211-0R020A1 |
ASA4#..LE..CND WHITE PEARL CS.,070 |
1 | ||
| 69211-0R020B0 |
ASA4#..LE..CND SILVER ME.,1F7 |
1 | ||
| 69211-0R020C0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BLACK,202 |
1 | ||
| 69211-0R020A1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND WHITE PEARL CS.,070 |
1 | ||
| 69211-0R020B1 |
ASA4#..LE..CND GRAY ME.,1G3 |
1 | ||
| 69211-0R020C0 |
ASA4#..LE..CND BLACK,202 |
1 | ||
| 69211-0R020A0 |
ASA4#..LE..CND SUPER WHITE 2,040 |
1 | ||
| 69211-0R020B1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAY ME.,1G3 |
1 | ||
| 69211-0R020D0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND RED M.M.,3R3 |
1 | ||
| 69211-0R020D0 |
ASA4#..LE..CND RED M.M.,3R3 |
1 | ||
| 69211-0R020E0 |
ASA4#..LE..CND BRONZE M.M.,4T3 |
1 | ||
| 69211-0R020E1 |
ASA4# ORANGE ME.,4R8 |
1 | ||
| 69211-0R020B0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SILVER ME.,1F7 |
1 | ||
| 69211-0R020J1 |
ASA4# DK.BLUE M.M.,8W7 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-0R070 |
ASA4#..LE..CND BLACK MATERIAL |
1 | ||
| 69217-0R060J0 |
ASA4#..LE..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69217-0R060G0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND DK.GREEN MC.,6V4 |
1 | ||
| 69217-0R060J0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69217-0R060D0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND RED M.M.,3R3 |
1 | ||
| 69217-0R060B0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SILVER ME.,1F7 |
1 | ||
| 69217-0R060A0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SUPER WHITE 2,040 |
1 | ||
| 69217-0R060B0 |
ASA4#..LE..CND SILVER ME.,1F7 |
1 | ||
| 69217-0R060E0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BRONZE M.M.,4T3 |
1 | ||
| 69217-0R060E0 |
ASA4#..LE..CND BRONZE M.M.,4T3 |
1 | ||
| 69217-0R060A0 |
ASA4#..LE..CND SUPER WHITE 2,040 |
1 | ||
| 69217-0R060B1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAY ME.,1G3 |
1 | ||
| 69217-0R060D0 |
ASA4#..LE..CND RED M.M.,3R3 |
1 | ||
| 69217-0R060A1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND WHITE PEARL CS.,070 |
1 | ||
| 69217-0R060A1 |
ASA4#..LE..CND WHITE PEARL CS.,070 |
1 | ||
| 69217-0R060B1 |
ASA4#..LE..CND GRAY ME.,1G3 |
1 | ||
| 69217-0R060E1 |
ASA4# ORANGE ME.,4R8 |
1 | ||
| 69217-0R060C0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BLACK,202 |
1 | ||
| 69217-0R060J1 |
ASA4# DK.BLUE M.M.,8W7 |
1 | ||
| 69217-0R060C0 |
ASA4#..LE..CND BLACK,202 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-0R040J0 |
ASA4#..LE..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69217-0R040J0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69217-0R040G0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND DK.GREEN MC.,6V4 |
1 | ||
| 69217-0R040A0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SUPER WHITE 2,040 |
1 | ||
| 69217-0R040A1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND WHITE PEARL CS.,070 |
1 | ||
| 69217-0R050 |
ASA4#..LE..CND BLACK MATERIAL |
1 | ||
| 69217-0R040A1 |
ASA4#..LE..CND WHITE PEARL CS.,070 |
1 | ||
| 69217-0R040D0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND RED M.M.,3R3 |
1 | ||
| 69217-0R040C0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BLACK,202 |
1 | ||
| 69217-0R040B0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SILVER ME.,1F7 |
1 | ||
| 69217-0R040B1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAY ME.,1G3 |
1 | ||
| 69217-0R040C0 |
ASA4#..LE..CND BLACK,202 |
1 | ||
| 69217-0R040B1 |
ASA4#..LE..CND GRAY ME.,1G3 |
1 | ||
| 69217-0R040E0 |
ASA4#..LE..CND BRONZE M.M.,4T3 |
1 | ||
| 69217-0R040D0 |
ASA4#..LE..CND RED M.M.,3R3 |
1 | ||
| 69217-0R040J1 |
ASA4# DK.BLUE M.M.,8W7 |
1 | ||
| 69217-0R040B0 |
ASA4#..LE..CND SILVER ME.,1F7 |
1 | ||
| 69217-0R040A0 |
ASA4#..LE..CND SUPER WHITE 2,040 |
1 | ||
| 69217-0R040E0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BRONZE M.M.,4T3 |
1 | ||
| 69217-0R040E1 |
ASA4# ORANGE ME.,4R8 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-0R020G0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND DK.GREEN MC.,6V4 |
1 | ||
| 69211-0R030 |
ASA4#..LE..CND NO PAINT REQ. |
1 | ||
| 69211-0R020J0 |
ASA4#..LE..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69211-0R020J0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAYISH BLUE M.M.,8V5 |
1 | ||
| 69211-0R020A1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND WHITE PEARL CS.,070 |
1 | ||
| 69211-0R020B1 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND GRAY ME.,1G3 |
1 | ||
| 69211-0R020E0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BRONZE M.M.,4T3 |
1 | ||
| 69211-0R020A0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SUPER WHITE 2,040 |
1 | ||
| 69211-0R020A1 |
ASA4#..LE..CND WHITE PEARL CS.,070 |
1 | ||
| 69211-0R020B0 |
ASA4#..LE..CND SILVER ME.,1F7 |
1 | ||
| 69211-0R020B0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND SILVER ME.,1F7 |
1 | ||
| 69211-0R020B1 |
ASA4#..LE..CND GRAY ME.,1G3 |
1 | ||
| 69211-0R020D0 |
ASA4#..LE..CND RED M.M.,3R3 |
1 | ||
| 69211-0R020C0 |
ASA4#..LE..CND BLACK,202 |
1 | ||
| 69211-0R020D0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND RED M.M.,3R3 |
1 | ||
| 69211-0R020E1 |
ASA4# ORANGE ME.,4R8 |
1 | ||
| 69211-0R020A0 |
ASA4#..LE..CND SUPER WHITE 2,040 |
1 | ||
| 69211-0R020E0 |
ASA4#..LE..CND BRONZE M.M.,4T3 |
1 | ||
| 69211-0R020J1 |
ASA4# DK.BLUE M.M.,8W7 |
1 | ||
| 69211-0R020C0 |
ASA4#..USA;ASA4#..(LIMD,XLE)..CND BLACK,202 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0R010 |
ASA4# |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0R011 |
ASA4# |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-08010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-08010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ASA4# |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ASA4# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0R030 |
ASA4# |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0R030 |
ASA4# |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-AA010 |
ASA4# |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-02030 |
ASA4# |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0R030 |
ASA4# |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0R030 |
ASA4# |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0R030 |
ASA4# |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-0R030 |
ASA4# |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-A0005 | ||||
| 90148-A0017 | ||||
| 90167-A0001 | ||||
| 90189-05003 | ||||
