ASA42L-CNTMKK (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )

Click highlighted areas on diagram

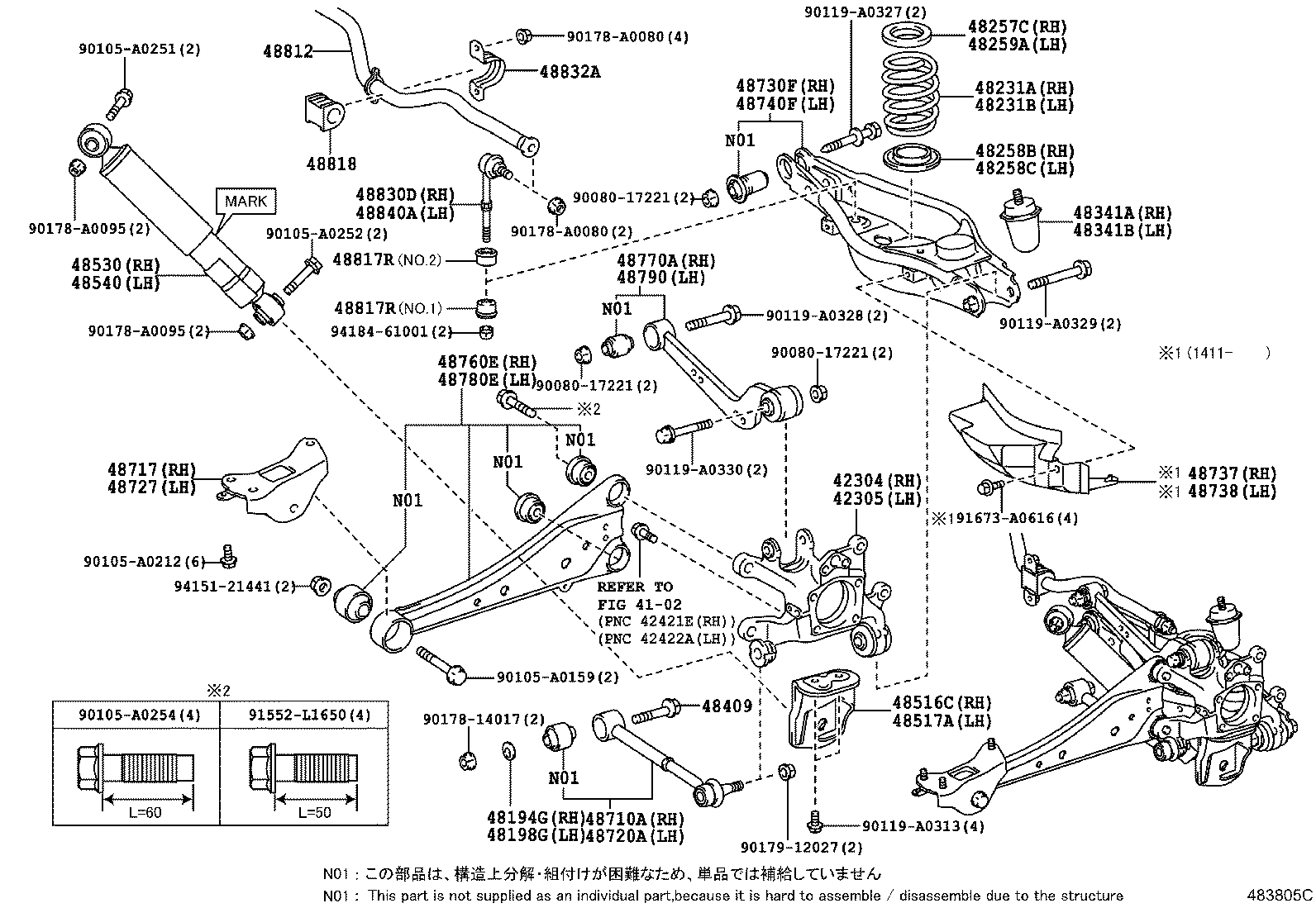

diagram 4102 42304 42305 48194G 48198G 48231A 48231B 48257C 48258B 48258C 48259A 48341A 48341B 48409 48516C 48517A 48530 48540 48710A 48717 48720A 48727 48730F 48737 48738 48740F 48760E 48770A 48780E 48790 48812 48817R 48817R 48818 48830D 48832A 48840A 9008017221 9008017221 9008017221 90105A0159 90105A0212 90105A0251 90105A0252 90105A0254 90119A0313 90119A0327 90119A0328 90119A0329 90119A0330 9017814017 90178A0080 90178A0080 90178A0095 90178A0095 9017912027 91552L1650 91673A0616 9415121441 9418461001
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-0R020

ASA4#

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-0R020

ASA4#

 1
48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH
48198-42010

ASA4#

 1
48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH
48198-42010

ASA4#

 1
48231A - SPRING, COIL, REAR RH
48231-0R080

ASA42

 1
48231B - SPRING, COIL, REAR LH
48231-0R080

ASA42

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-42040

ASA4#

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-42020

ASA4#

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-42020

ASA4#

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-42040

ASA4#

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-0R010

ASA4#

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-0R010

ASA4#

 1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-42030

ASA4#

 2
48516C - BRACKET, REAR SHOCK ABSORBER, NO.1 RH
48505-42010

ASA4#

 1
48517A - BRACKET, REAR SHOCK ABSORBER, NO.1 LH
48506-42010

ASA4#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-0R150

ASA4#

MARK 48531-0R150

 1
48531-0R051

ASA4#

MARK 48531-0R051

 1
48531-0R050

ASA4#

MARK 48531-0R050

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-0R050

ASA4#

MARK 48531-0R050

 1
48531-0R051

ASA4#

MARK 48531-0R051

 1
48531-0R150

ASA4#

MARK 48531-0R150

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-0R030

ASA4#

 1
48717 - BRACKET, REAR SUSPENSION ARM, RH
48717-0R010

ASA4#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-0R030

ASA4#

 1
48727 - BRACKET, REAR SUSPENSION ARM, LH
48727-0R010

ASA4#

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-42050

ASA4#

 1
48730-0R040

ASA4#

 1
48730-0R020

ASA4#

 1
48730-0R030

ASA4#

 1
48737 - COVER, REAR SUSPENSION ARM, RH
48737-42021

ASA4#

 1
48738 - COVER, REAR SUSPENSION ARM, LH
48738-42021

ASA4#

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-0R040

ASA4#

 1
48740-0R020

ASA4#

 1
48740-0R030

ASA4#

 1
48740-42020

ASA4#

 1
48760E - ARM ASSY, TRAILING, REAR RH
48760-48110

ASA4#

 1
48760-42030

ASA4#

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-42040

ASA4#

 1
48780E - ARM ASSY, TRAILING, REAR LH
48780-42030

ASA4#

 1
48780-48110

ASA4#

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-42020

ASA4#

 1
48812 - BAR, STABILIZER, REAR
48812-0R030

ASA4#

 1
48817R - CUSHION, STABILIZER(FOR REAR)
48817-0R013

ASA4#

NO.1

 2
48817-0R042

ASA4#

NO.2

 2
48817-0R043

ASA4#

NO.2

 2
48817-0R012

ASA4#

NO.1

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-0R013

ASA4#

NO.1

 2
48817-0R042

ASA4#

NO.2

 2
48817-0R043

ASA4#

NO.2

 2
48817-0R012

ASA4#

NO.1

 2
48818 - BUSH, STABILIZER, REAR
48818-0R030

ASA4#

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-0R010

ASA4#

 1
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-0R010

ASA4#

 2
48840A - LINK ASSY, REAR STABILIZER, LH
48830-0R010

ASA4#

 1
Common parts
90080-17221
90105-A0159
90105-A0212
90105-A0251
90105-A0252
90105-A0254
90119-A0313
90119-A0327
90119-A0328
90119-A0329
90119-A0330
90178-14017
90178-A0080
90178-A0095
90179-12027
91552-L1650
91673-A0616
94151-21441
94184-61001
Linked diagrams
4102
