ASA42L-CNTMKA (2013)
Toyota Rav4 (Nap)

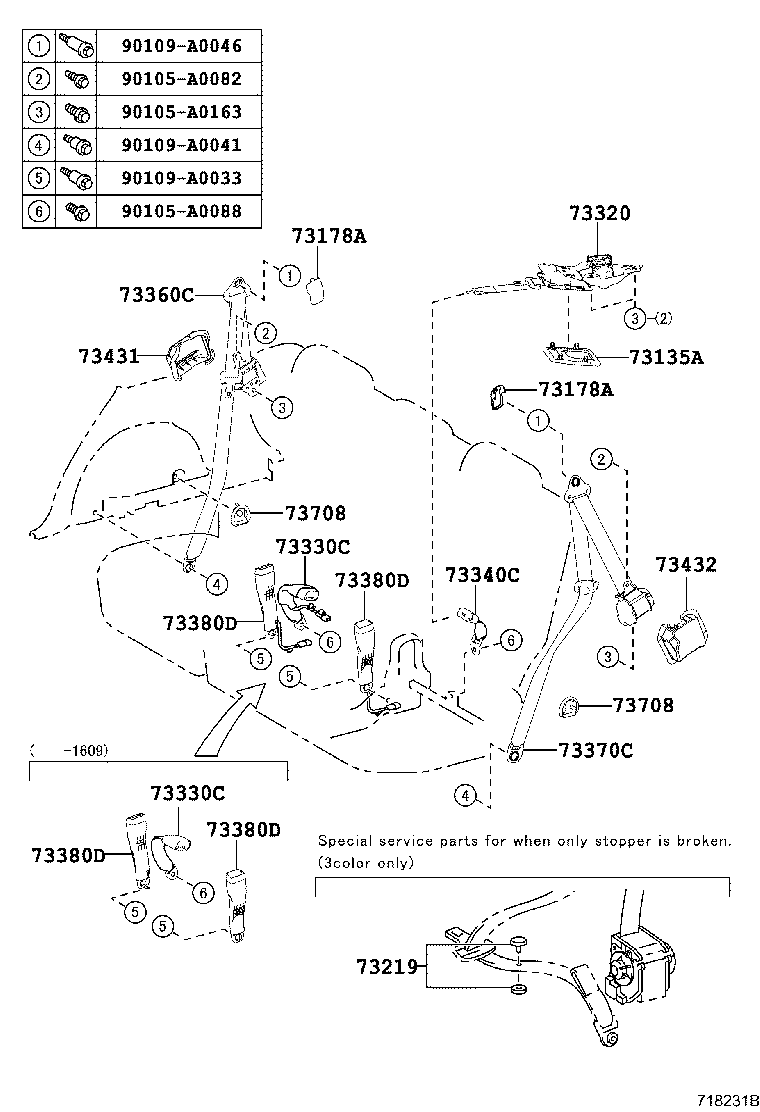

ILLUST NO. 2 OF 2(1301- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73137-42010B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0R010B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0R010B0 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
ASA4# BEIGE |
1 | ||
| 73219-02020 |
ASA4# GRAY |
1 | ||
| 73219-02010 |
ASA4# BLACK |
1 | ||
| 73320 - BELT ASSY, REAR SEAT 3 POINT TYPE, LH | ||||
| 73320-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-0R040C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-0R040C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0R040C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-0R040C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73431 - COVER, REAR SEAT BELT RETRACTOR, RH | ||||
| 73431-0R010 |
ASA4# |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73432-0R010 |
ASA4# |
1 | ||
| 73708 - BRACKET SET, TETHER ANCHOR | ||||
| 73708-0R010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73708 - BRACKET SET, TETHER ANCHOR | ||||
| 73708-0R010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| Common parts | ||||
| 90105-A0082 | ||||
| 90105-A0088 | ||||
| 90105-A0163 | ||||
| 90109-A0033 | ||||
| 90109-A0041 | ||||
| 90109-A0046 | ||||

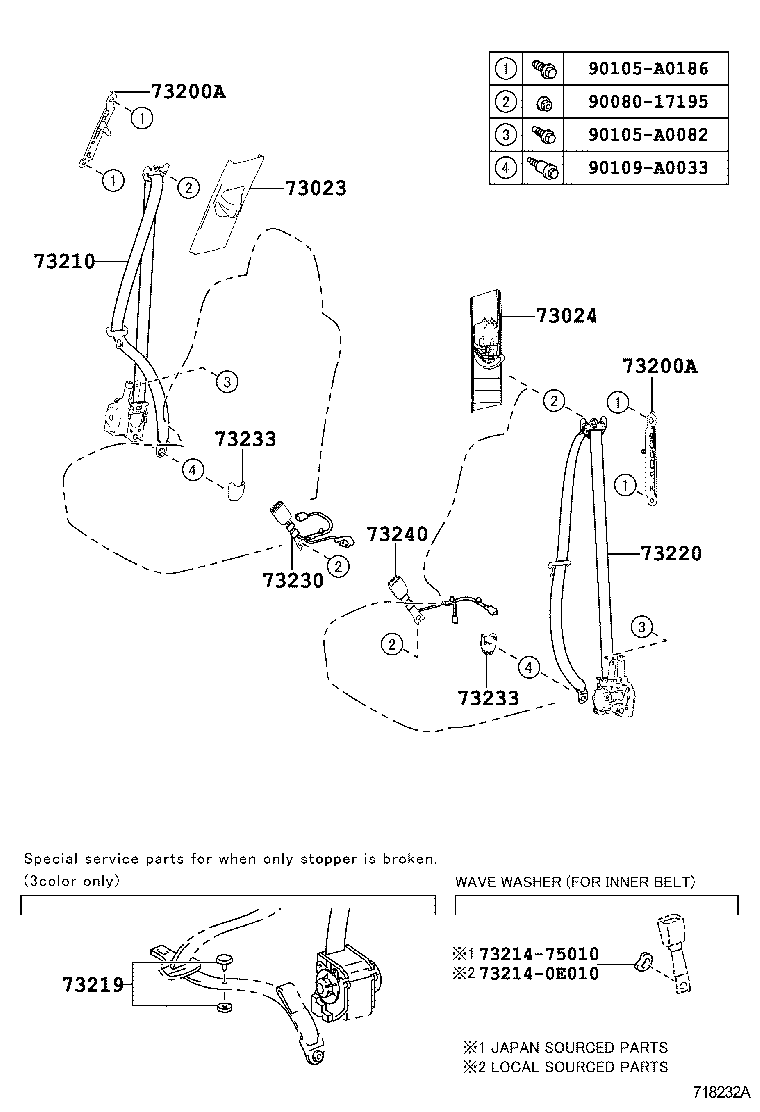

ILLUST NO. 1 OF 2(1301- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-06070B1 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-06070B1 |
ASA4#..LE,XLE LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-06040 |
ASA4# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-06040 |
ASA4# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0R030C0 |
ASA42..(LE,XLE)..USA SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM1#,2#,4# |
1 | ||
| 73210-0R031C0 |
ASA4#..XLE..USA SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK/LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 73210-0R040C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73210-0R031C0 |
ASA4#..LE..USA SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73210-0R041C0 |
ASA4#..LE BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73210-0R041C0 |
ASA4#..XLE BLACK/LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
ASA4# BEIGE |
1 | ||
| 73219-02020 |
ASA4# GRAY |
1 | ||
| 73219-02010 |
ASA4# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0R031C0 |
ASA4#..XLE BLACK/LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 73220-0R030C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73220-0R031C0 |
ASA4#..LE BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0R080C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73230-0R081C0 |
ASA4#..LE BLACK,TRIM1#,2# |
1 | ||
| 73230-0R081C0 |
ASA4#..XLE BLACK,TRIM1#,2#,4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0R070C0 |
ASA4#..LE,XLE BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 73214-0E010 | ||||
| 73214-75010 | ||||
| 90080-17195 | ||||
| 90105-A0082 | ||||
| 90105-A0186 | ||||
| 90109-A0033 | ||||
