ASA42L-CNTMKA (2013)
Toyota Rav4 (Nap)
(1301- )
WITH(SMART ENTRY)

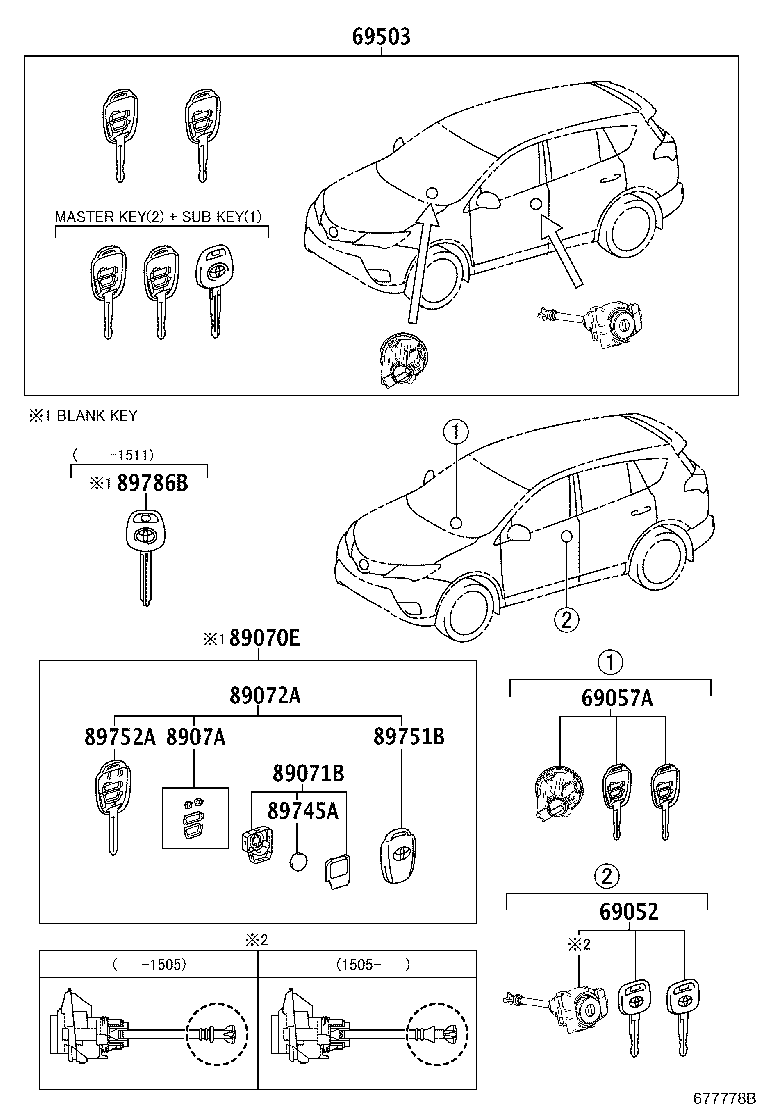

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0R050 |
ASA4# |
1 | ||
(1301- )
WITHOUT(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0R050 |
ASA4# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0R050 |
ASA42..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 69057-0R050 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
1 | ||
| 69057-0R040 |
ASA4#..LE,XLE |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0R060 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
1 | ||
| 69005-0R080 |
ASA42..LE,XLE;ASA44..(LE,XLE)..CND KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 69005-0R050 |
ASA4#..LE,XLE |
1 | ||
| 69005-0R090 |
ASA42..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-0R130 |
ASA42..(LE,XLE)..USA MEXICO SPEC |
1 | ||
| 89070-0R100 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052 |
1 | ||
| 89070-0R120 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052 |
1 | ||
| 89070-0R120 |
ASA4#..(LE,XLE)..USA REFER TO PNC 69052 |
1 | ||
| 89070-0R120 |
ASA4#..(LE,XLE)..USA MEXICO SPEC,REFER TO PNC 69052 |
1 | ||
| 89070-0R101 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052 |
1 | ||
| 89070-0R221 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052 |
1 | ||
| 89070-0R220 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052 |
1 | ||
| 89070-0R121 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052 |
1 | ||
| 89070-0R121 |
ASA4#..(LE,XLE)..USA MEXICO SPEC,REFER TO PNC 69052 |
1 | ||
| 89070-0R121 |
ASA4#..(LE,XLE)..USA REFER TO PNC 69052 |
1 | ||
| 89070-0R230 |
ASA4#..(LE,XLE)..USA MEXICO SPEC,REFER TO PNC 69052 |
1 | ||
| 89070-0R231 |
ASA4#..(LE,XLE)..USA MEXICO SPEC,REFER TO PNC 69052 |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-0R050 |
ASA42..(LE,XLE)..USA MEXICO SPEC |
2 | ||
| 89071-0R050 |
ASA42..(LE,XLE)..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89071-0R040 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
2 | ||
| 89071-0R040 |
ASA42..(LE,XLE)..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89071-0R020 |
ASA4#..XLE..USA PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(TWO OPERATION & POWERBACK DOOR) |
2 | ||
| 89071-0R020 |
ASA42..XLE..USA PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(TWO OPERATION & POWERBACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89071-0R020 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
2 | ||
| 89071-0R040 |
ASA4#..(LE,XLE)..USA MEXICO SPEC |
2 | ||
| 89071-0R040 |
ASA42..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89071-0R080 |
ASA42..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89071-0R090 |
ASA42..(LE,XLE)..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89071-0R090 |
ASA4#..(LE,XLE)..USA MEXICO SPEC |
2 | ||
| 89071-0R040 |
ASA4#..(LE,XLE)..USA |
2 | ||
| 89071-0R080 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
2 | ||
| 89071-0R020 |
ASA42..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-0R130 |
ASA42..(LE,XLE)..USA MEXICO SPEC,BLANK KEY |
1 | ||
| 89072-0R120 |
ASA4#..(LE,XLE)..USA BLANK KEY |
1 | ||
| 89072-0R100 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89072-0R120 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89072-0R100 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89072-0R120 |
ASA4#..XLE..USA MEXICO SPEC,BLANK KEY |
1 | ||
| 89072-0R121 |
ASA4#..XLE..USA MEXICO SPEC,BLANK KEY |
1 | ||
| 89072-0R121 |
ASA4#..LE,XLE BLANK KEY |
1 | ||
| 89072-0R101 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89072-0R101 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89072-0R121 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52020 |
ASA4#..LE,XLE |
2 | ||
| 8907A-52020 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
2 | ||
| 8907A-42010 |
ASA42..XLE..USA PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(TWO OPERATION & POWERBACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 8907A-42010 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
2 | ||
| 8907A-42010 |
ASA42..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 8907A-42010 |
ASA4#..XLE..USA PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(TWO OPERATION & POWERBACK DOOR) |
2 | ||
| 8907A-52020 |
ASA4#..XLE..USA MEXICO SPEC |
2 | ||
| 8907A-42010 |
ASA42..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 8907A-42010 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
2 | ||
| 8907A-52020 |
ASA42..XLE..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 8907A-52020 |
ASA42..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0R010 |
ASA4#..USA |
1 | ||
| 89745-0R010 |
ASA4#..USA MEXICO SPEC |
1 | ||
| 89745-0R010 |
ASA42..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 89745-0R010 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
1 | ||
| 89745-48030 |
ASA42..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 89745-0R010 |
ASA42..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 89745-48030 |
ASA42..USA MEXICO SPEC |
1 | ||
| 89745-48030 |
ASA42..XLE..USA CR2016,MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 89745-48030 |
ASA4#..XLE..USA CR2016,MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR) |
1 | ||
| 89751B - COVER, TRANSMITTER HOUSING | ||||
| 89751-0R050 |
ASA42..USA MEXICO SPEC |
2 | ||
| 89751-42090 |
ASA4#..USA |
2 | ||
| 89751-0R050 |
ASA42..USA MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-0R050 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89752-0R050 |
ASA4#..LE,XLE BLANK KEY |
1 | ||
| 89752-0R040 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89752-0R051 |
ASA4#..LE,XLE BLANK KEY |
1 | ||
| 89752-0R051 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89752-0R051 |
ASA4#..XLE..USA MEXICO SPEC,BLANK KEY |
1 | ||
| 89752-0R041 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89752-0R041 |
ASA4#..XLE..USA POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89752-0R050 |
ASA4#..XLE..USA MEXICO SPEC,BLANK KEY |
1 | ||
| 89752-0R040 |
ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-0R020 |
ASA42;ASA44..CND BLANK KEY,KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
| 89786-0R021 |
ASA42;ASA44..CND BLANK KEY,KEY PLATE-MASTER KEY(2) + SUB KEY(1) |
1 | ||
