ASA42L-CNTGKK (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

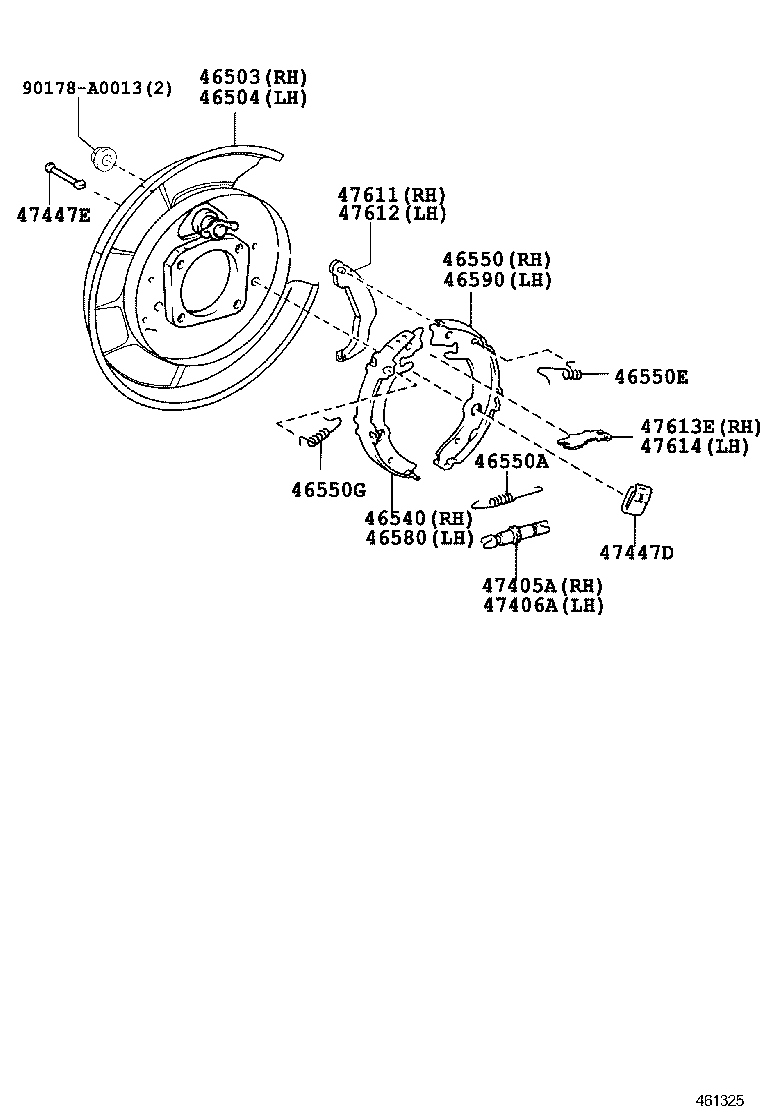

ILLUST NO. 2 OF 2(1301- )

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550E 46550G 46580 46590 47405A 47406A 47447D 47447E 47611 47612 47613E 47614 90178A0013
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-0R010

ASA4#

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-0R010

ASA4#

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-42010

ASA4#

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46540-42010

ASA4#

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90016-AY125

ASA4#

 2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90016-AY124

ASA4#

RH

 1
90016-AY126

ASA4#

LH

 1
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90016-AY123

ASA4#

 2
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-42010

ASA4#

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46540-42010

ASA4#

 1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
46605-0R010

ASA4#

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
46606-0R010

ASA4#

 1
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47446-02090

ASA4#

 4
47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447-11010

ASA4#

 4
47611 - LEVER, PARKING BRAKE SHOE, RH
46601-42040

ASA4#

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
46602-42040

ASA4#

 1
47613E - STRUT, PARKING BRAKE SHOE, RH
46612-02090

ASA4#

 1
47614 - STRUT, PARKING BRAKE SHOE, LH
46622-02090

ASA4#

 1
Common parts
90178-A0013

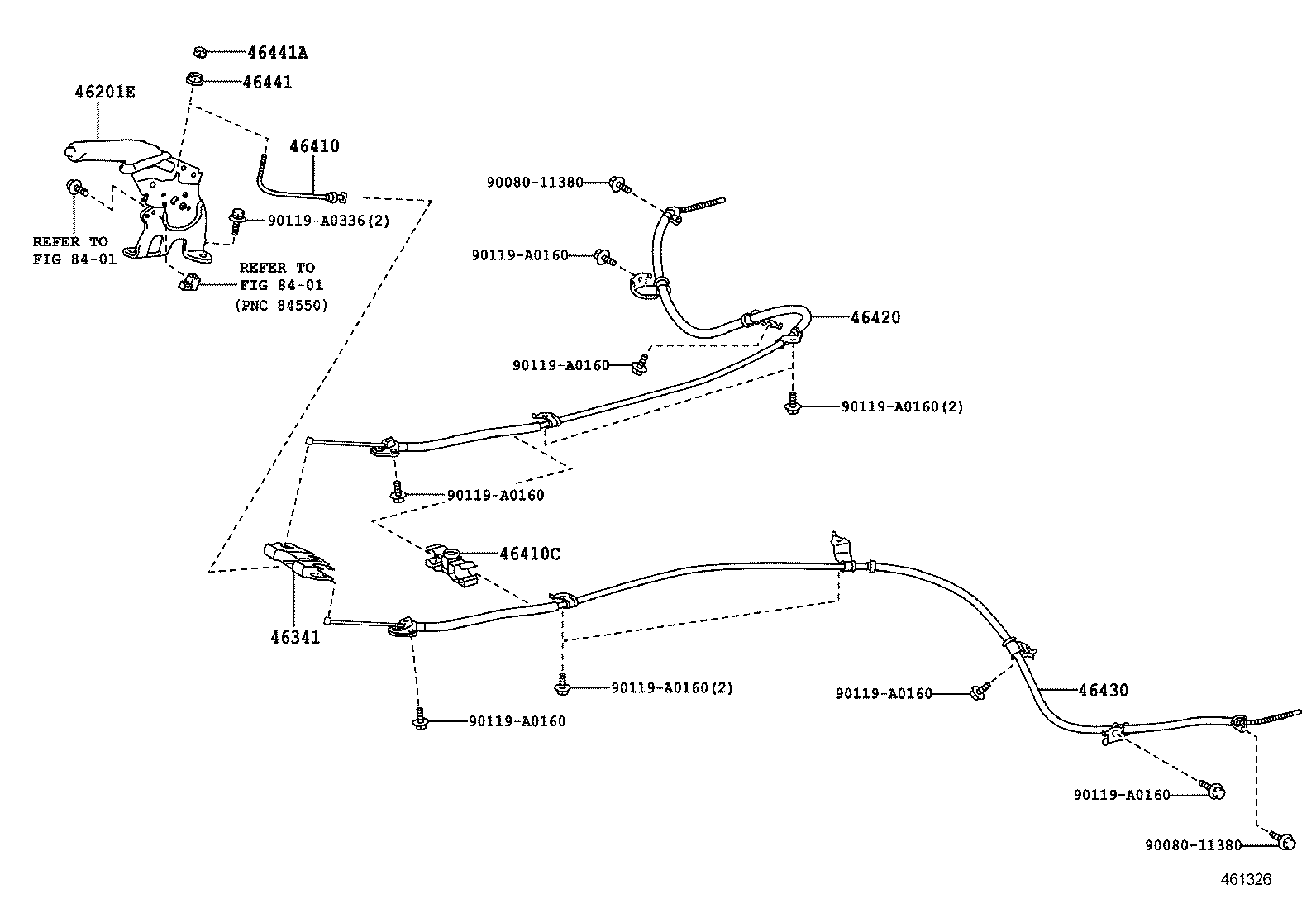

ILLUST NO. 1 OF 2(1301- )

Click highlighted areas on diagram

diagram 46201E 46341 46410 46410C 46420 46430 46441 46441A 8401 8401 9008011380 9008011380 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0336
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0R050C0

ASA4#..LIMD

BLACK,TRIM1#,2#,3#,4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-0R010

ASA4#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-0R010

ASA4#

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0R010

ASA4#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0R013

ASA4#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0R013

ASA4#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

ASA4#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90178-A0073

ASA4#

 1
Common parts
90080-11380
90119-A0160
90119-A0336
Linked diagrams
8401
