ASA42L-CNTGKA (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )

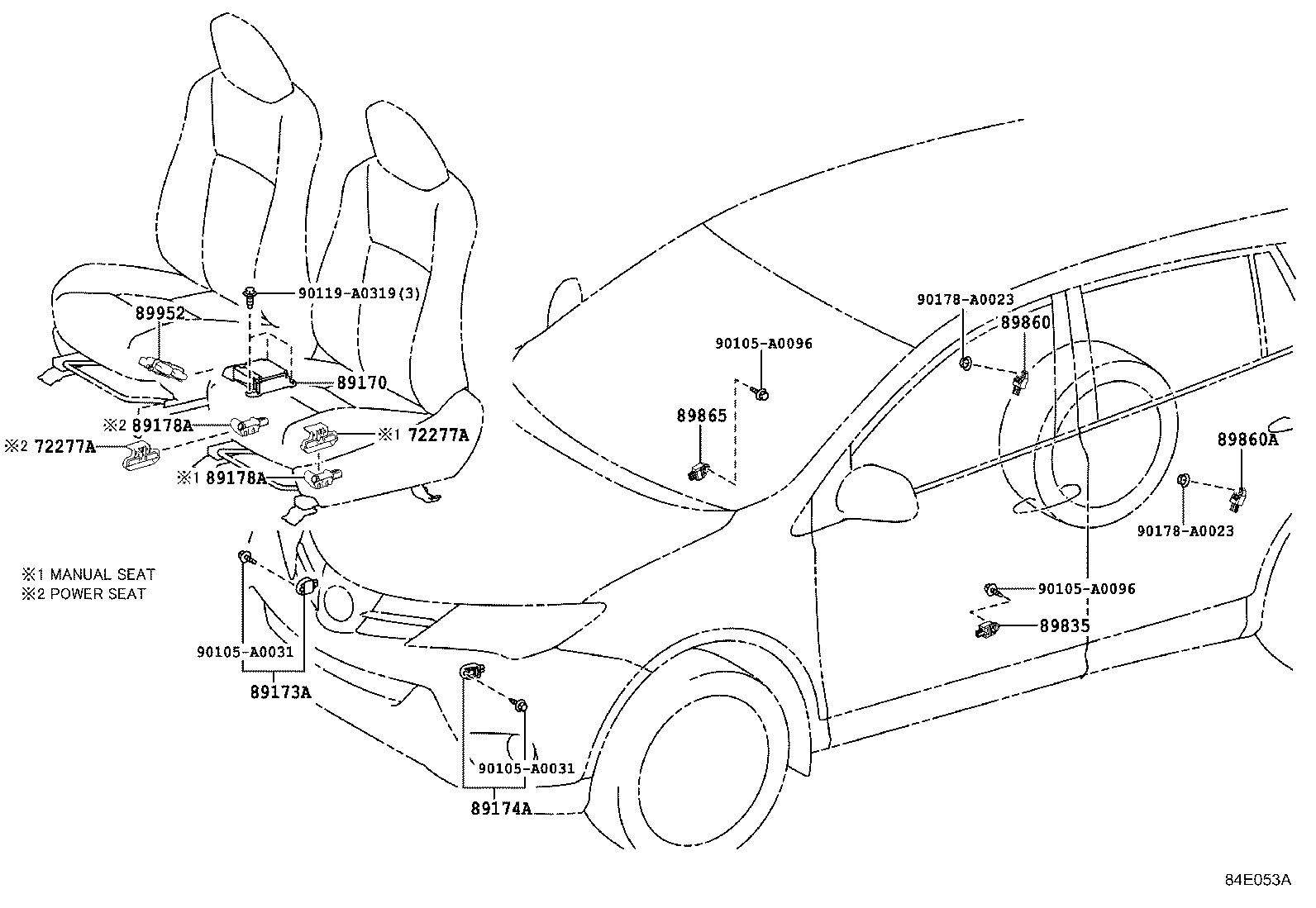

Click highlighted areas on diagram

diagram 72277A 72277A 89170 89173A 89174A 89178A 89178A 89835 89860 89860A 89865 89952 90105A0031 90105A0031 90105A0096 90105A0096 90119A0319 90178A0023 90178A0023
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-08010

ASA4#

 1
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-08010

ASA4#

 1
89170 - SENSOR ASSY, AIR BAG
89170-0R070

ASA4#

 1
89170-0R130

ASA42..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

 1
89170-0R130

ASA4#..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-*DA

 1
89170-0R190

ASA4#

 1
89170-0R130

ASA4#..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN

 1
89170-0R060

ASA42..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

 1
89170-0R130

ASA4#..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN & JBL

 1
89170-0R140

ASA4#

 1
89170-0R180

ASA4#..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN & JBL

 1
89170-0R180

ASA4#..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-*DA

 1
89170-0R180

ASA4#..LIMD..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09885

ASA4#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09885

ASA4#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASA4#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASA4#

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-0R080

ASA4#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0R100

ASA4#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0R100

ASA4#

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-0R080

ASA4#

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-0R020

ASA4#

 1
89952-0R010

ASA4#

 1
Common parts
90105-A0031
90105-A0096
90119-A0319
90178-A0023
