ASA42L-CNTGKA (2013)

Toyota Rav4 (Nap)

Production Jan 2013 - Nov 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )

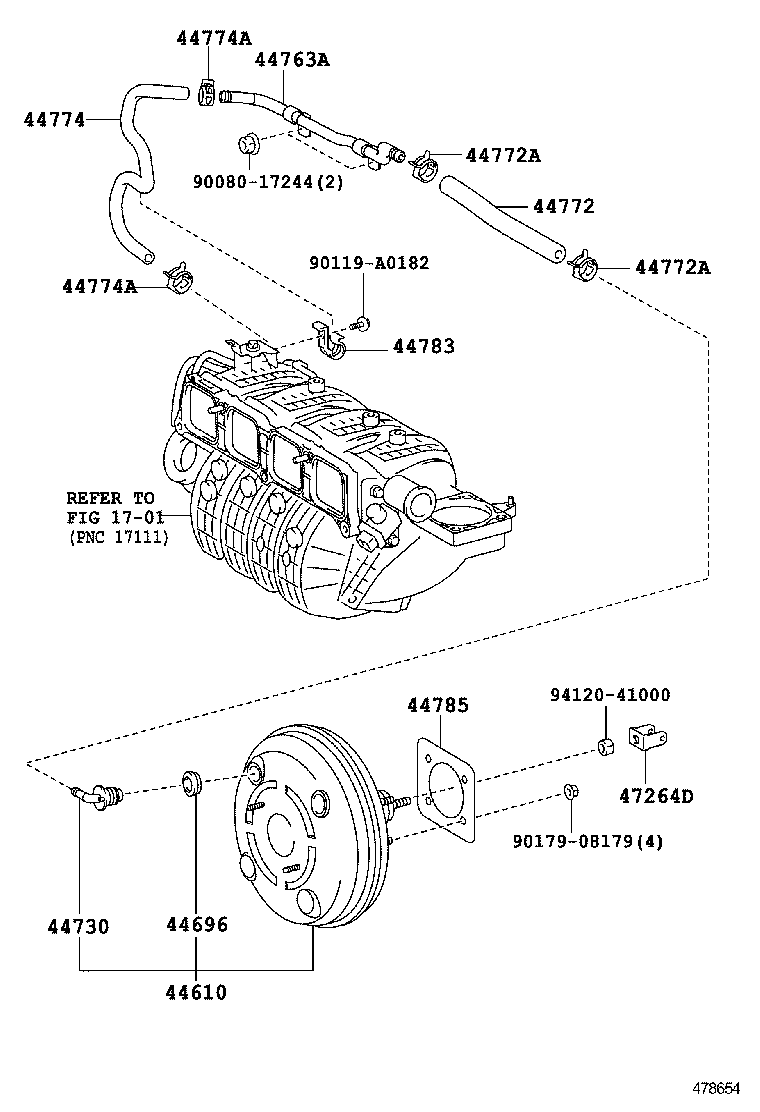

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44783 44785 47264D 9008017244 90119A0182 9017908179 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0R060

ASA4#..LIMD,XLE

 1
44696 - GROMMET, CHECK VALVE
90080-48071

ASA4#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ASA4#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0R010

ASA4#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0R010

ASA4#

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ASA4#

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ASA4#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0R010

ASA4#

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ASA4#

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ASA4#

 2
44783 - CLAMP, VACUUM HOSE
44783-42030

ASA4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-02060

ASA4#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0R010

ASA4#

 1
Common parts
90080-17244
90119-A0182
90179-08179
94120-41000
Linked diagrams
1701
