Toyota Rav4 (nap) ASA33 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
RAV4 (NAP)
ASA33L-CNPXKK (2008)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013

Engine 2ARFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

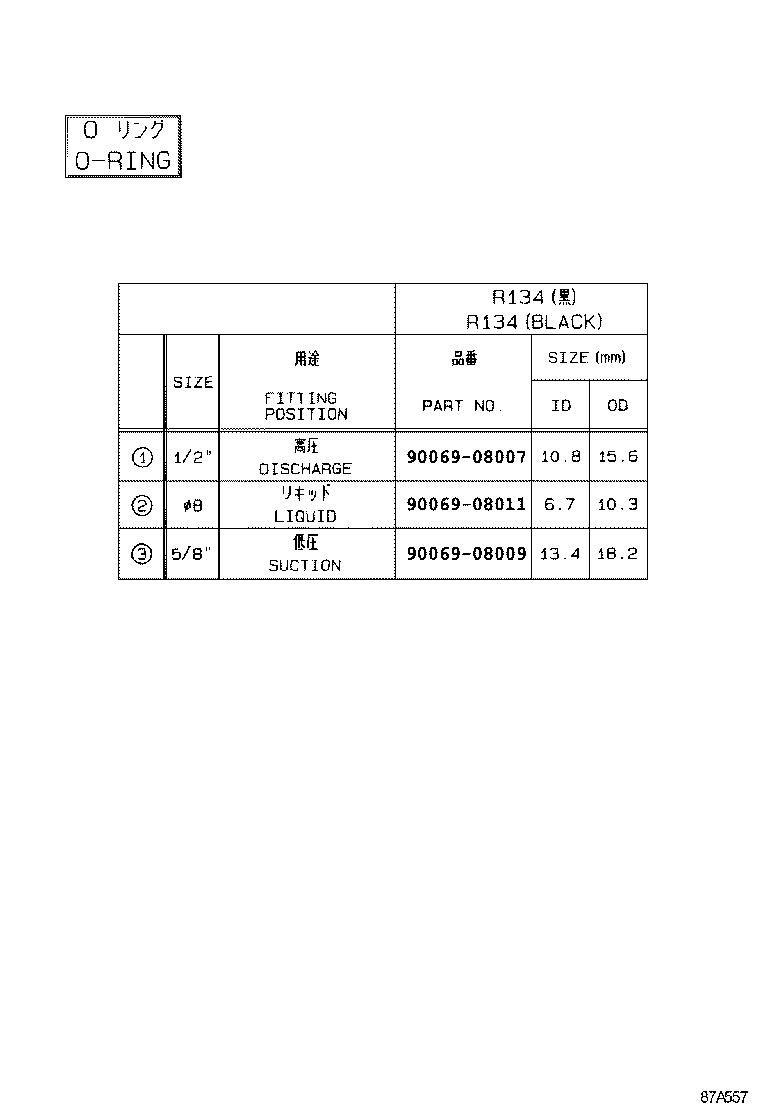

ILLUST NO. 2 OF 2(0811- )NAP

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90069-08007
90069-08009
90069-08011

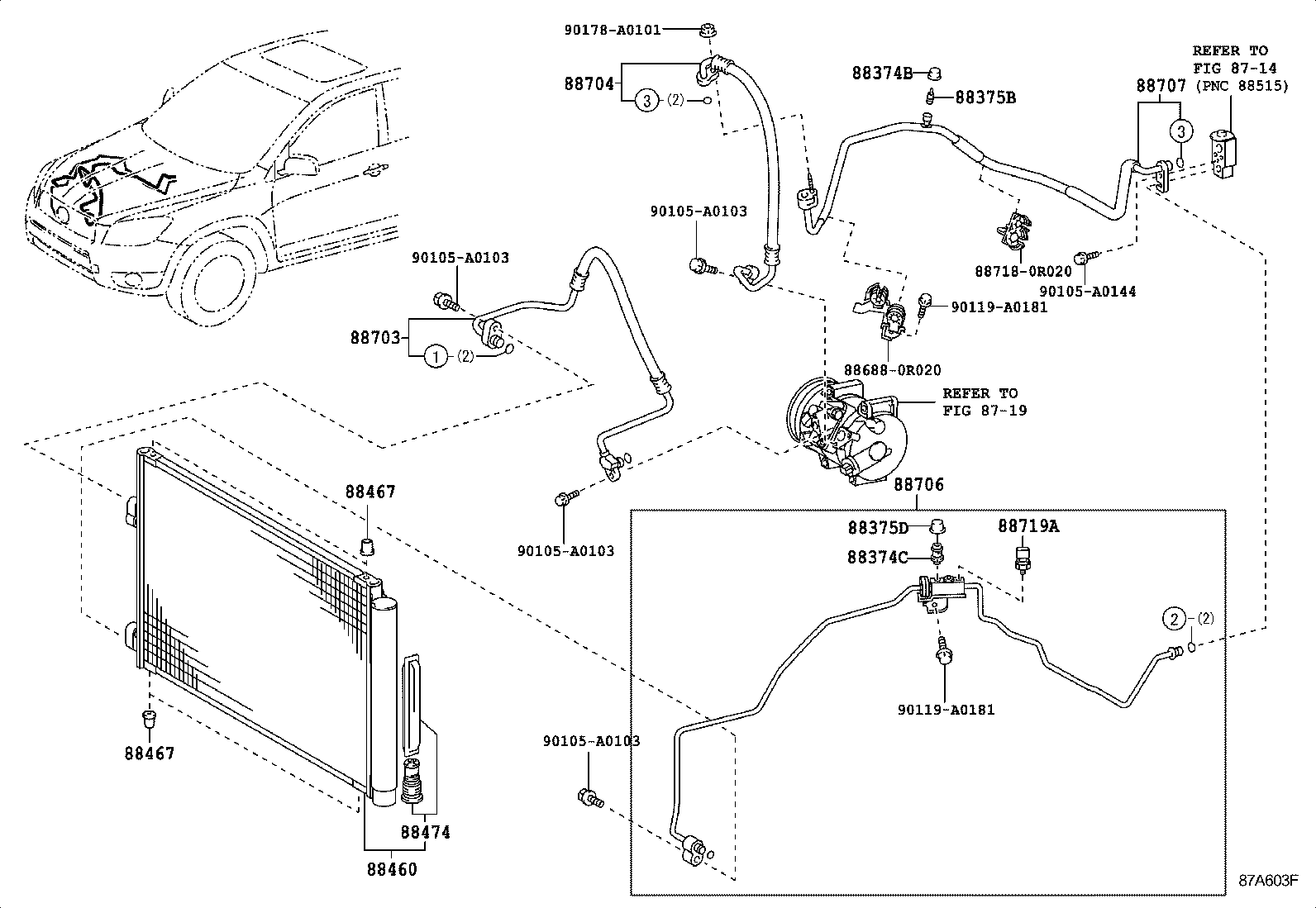

ILLUST NO. 1 OF 2(0811-1104)ASA3#..NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-0R010	ASA3#,GSA3#..NAP	11/2008 - 04/2011	1
88460-0R011	ASA3#,GSA3#..NAP	04/2011 - 01/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ASA3#,GSA3#..NAP	11/2008 - 01/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ASA3#,GSA3#..NAP	11/2008 - 01/2013	4
88474 - DRYER, COOLER
88474-17010	ASA3#,GSA3#..NAP	11/2008 - 04/2011	1
88474-08010	ASA3#,GSA3#..NAP NO.2	04/2011 - 12/2999	1
88474-08030	ASA3#,GSA3#..NAP NO.1	04/2011 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0R030	ASA3#..NAP	11/2008 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0R030	ASA3#..NAP	11/2008 - 12/2999	1
88706 - PIPE SUB-ASSY, LIQUID
88706-0R020	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0R020	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
Common parts
88688-0R020
88718-0R020
90105-A0103
90105-A0144
90119-A0181
90178-A0101
Linked diagrams
8714
8719

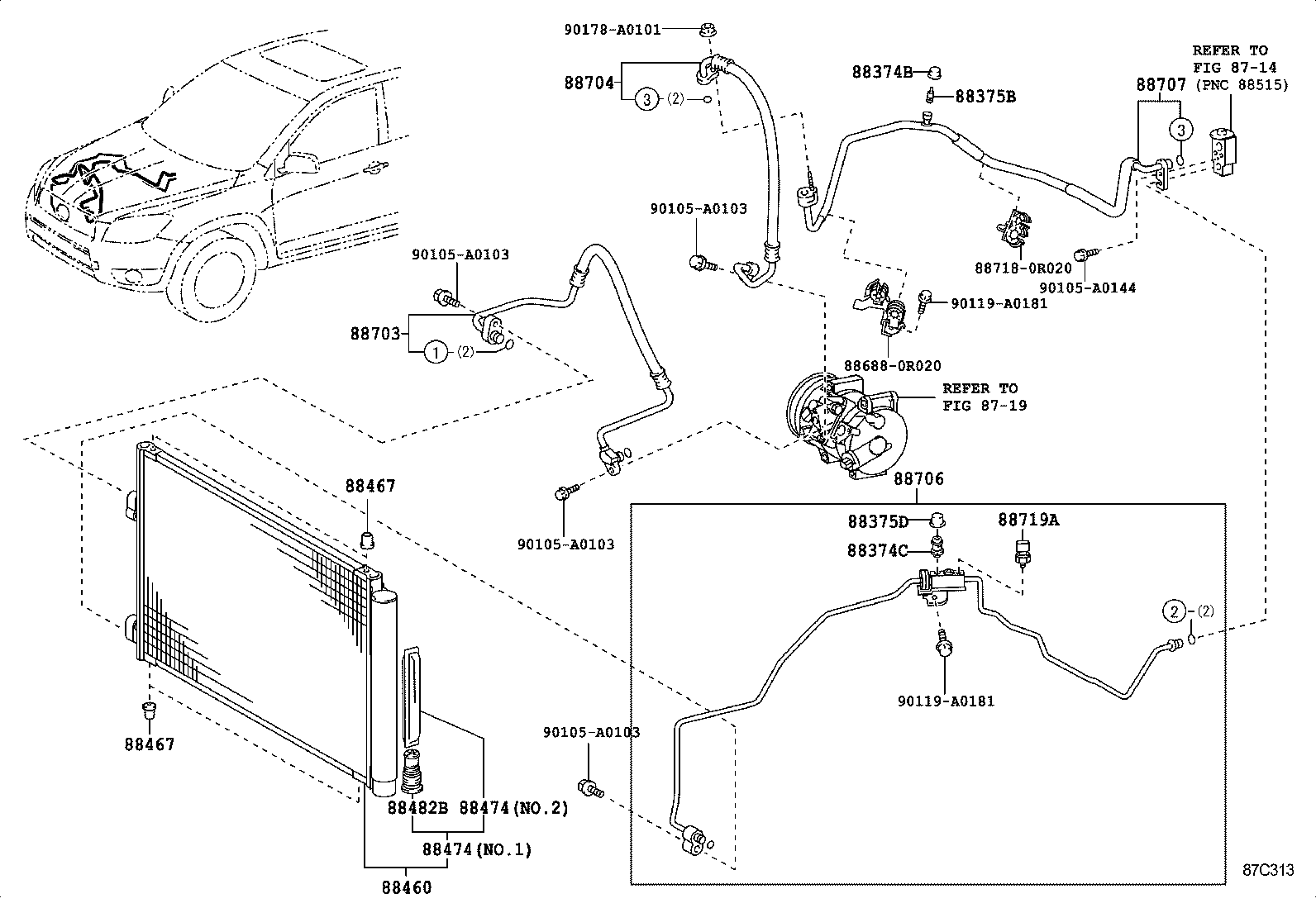

ILLUST NO. 1 OF 2(1104- )ASA3#..NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-0R010	ASA3#,GSA3#..NAP	11/2008 - 04/2011	1
88460-0R011	ASA3#,GSA3#..NAP	04/2011 - 01/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ASA3#,GSA3#..NAP	11/2008 - 01/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ASA3#,GSA3#..NAP	11/2008 - 01/2013	4
88474 - DRYER, COOLER
88474-17010	ASA3#,GSA3#..NAP	11/2008 - 04/2011	1
88474-08010	ASA3#,GSA3#..NAP NO.2	04/2011 - 12/2999	1
88474-08030	ASA3#,GSA3#..NAP NO.1	04/2011 - 12/2999	1
88474 - DRYER, COOLER
88474-17010	ASA3#,GSA3#..NAP	11/2008 - 04/2011	1
88474-08010	ASA3#,GSA3#..NAP NO.2	04/2011 - 12/2999	1
88474-08030	ASA3#,GSA3#..NAP NO.1	04/2011 - 12/2999	1
88482B - CAP, COOLER NO.1
88482-08010	ASA3#,GSA3#..NAP	04/2011 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0R030	ASA3#..NAP	11/2008 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0R030	ASA3#..NAP	11/2008 - 12/2999	1
88706 - PIPE SUB-ASSY, LIQUID
88706-0R020	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0R020	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	ASA3#,GSA3#..NAP	11/2008 - 12/2999	1
Common parts
88688-0R020
88718-0R020
90105-A0103
90105-A0144
90119-A0181
90178-A0101
Linked diagrams
8714
8719
