ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

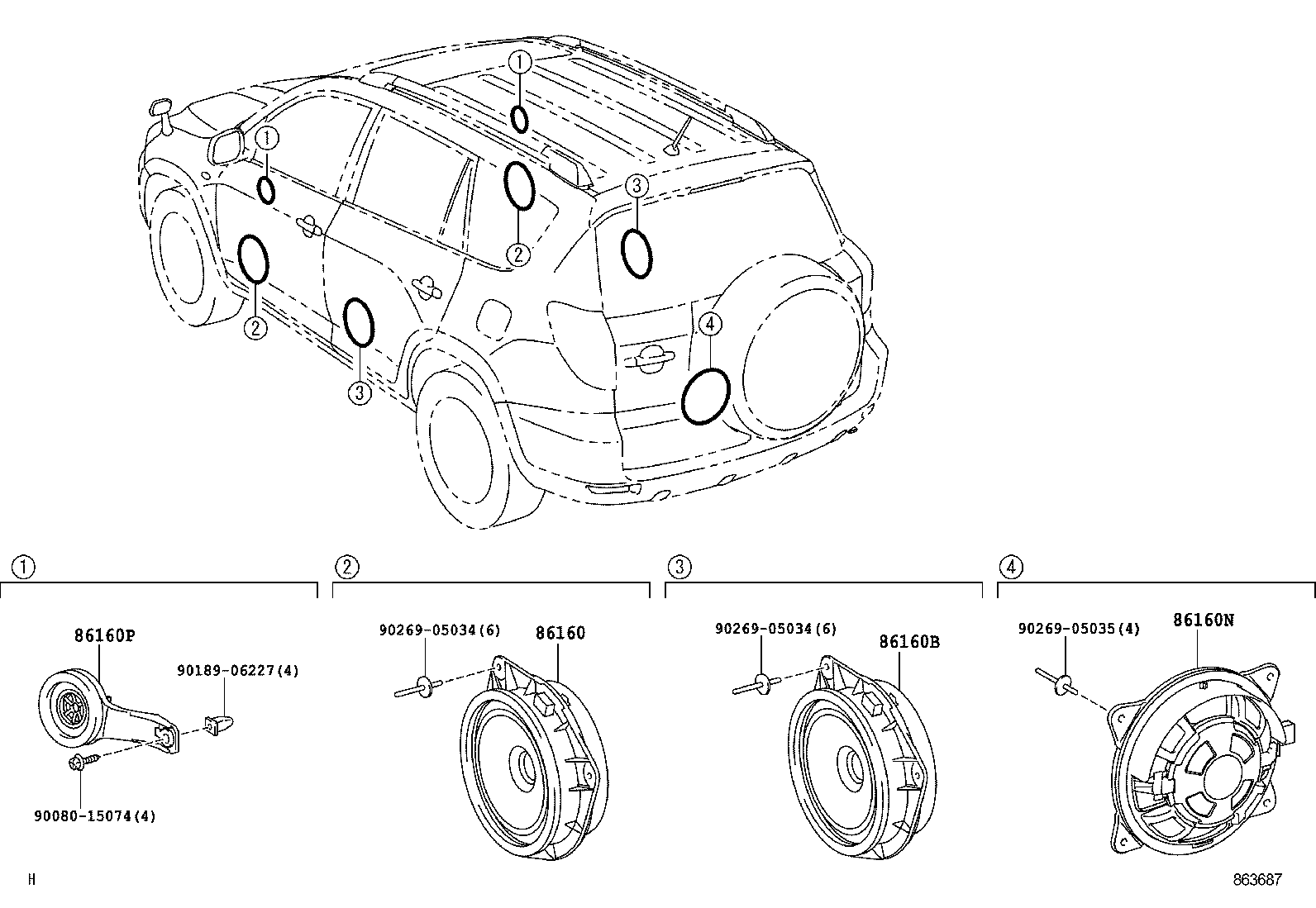

Click highlighted areas on diagram

diagram 86160 86160B 86160N 86160P 9008015074 9018906227 9026905034 9026905034 9026905035
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-AC290

ASA3#,GSA3#..NAP

 2
86160-0R090

ASA3#,GSA3#..NAP

 2
86160B - SPEAKER ASSY, REAR
86160-0R090

ASA3#,GSA3#..NAP

 2
86160-AC290

ASA3#,GSA3#..NAP

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0R020

ASA3#,GSA3#..NAP

RH

 1
86160-0R030

ASA3#,GSA3#..NAP

LH

 1
Common parts
90080-15074
90189-06227
90269-05034
90269-05035
