ASA33L-CNPXKK (2008)
Toyota Rav4 (Nap)

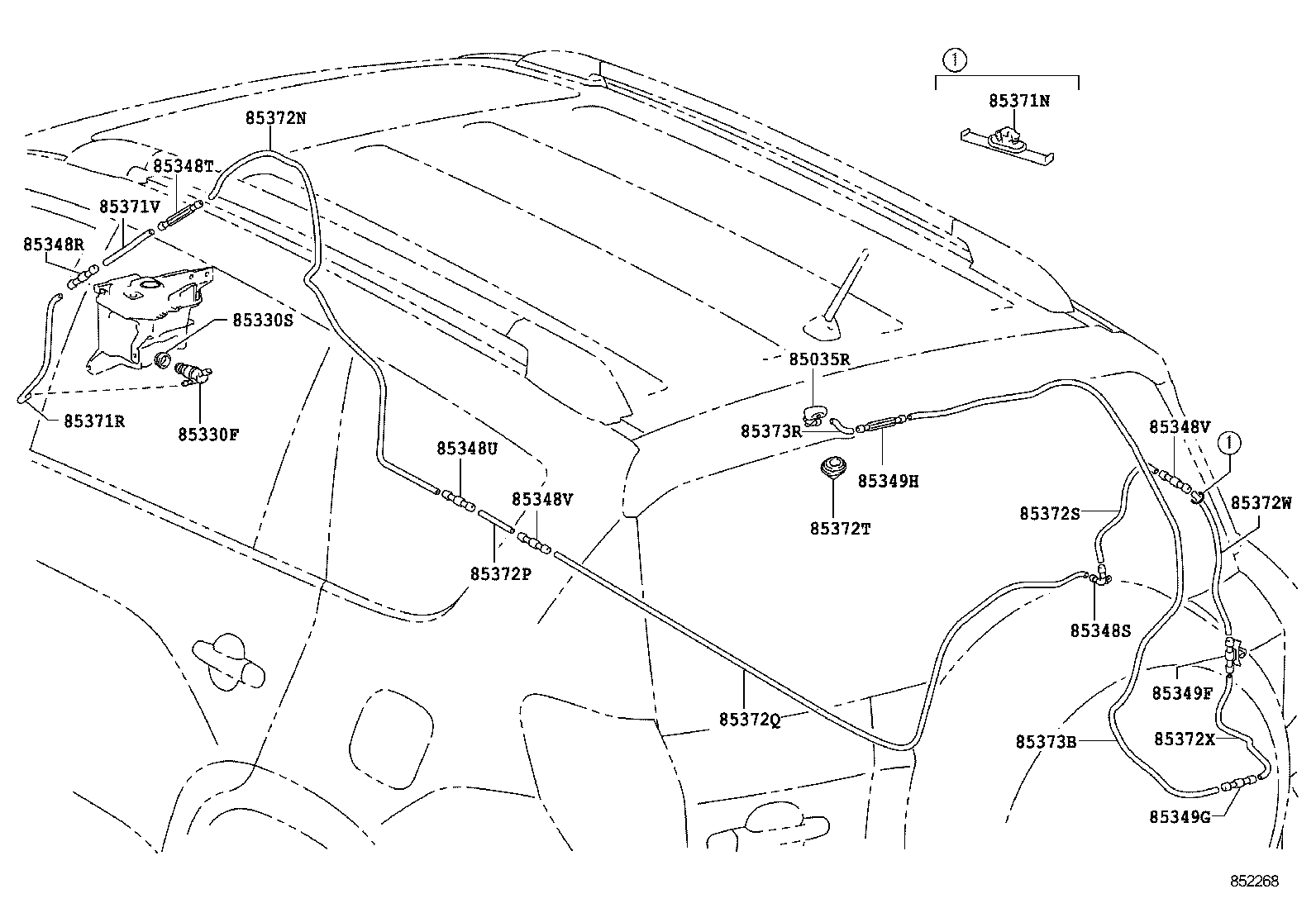

(0811-1104)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-42010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-42040 |
ASA3#,GSA3#..NAP |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-60290 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-32150 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85376-0R020 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
2 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
2 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85376-0R020 |
ASA3#,GSA3#..NAP |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-32150 |
ASA3#,GSA3#..NAP |
1 | ||
| 85371N - CLAMP, REAR WASHER HOSE | ||||
| 82711-3F290 |
ASA3#,GSA3#..NAP |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-59071 |
ASA3#,GSA3#..NAP L=90 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90068-33019 |
ASA3#,GSA3#..NAP L=40 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-59102 |
ASA3#,GSA3#..NAP L=3360 |
1 | ||
| 90068-59069 |
ASA3#,GSA3#..NAP L=1190 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59101 |
ASA3#,GSA3#..NAP L=910 |
1 | ||
| 90068-33019 |
ASA3#,GSA3#..NAP L=40 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-59068 |
ASA3#,GSA3#..NAP L=2110 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90068-33011 |
ASA3#,GSA3#..NAP *H,L=350 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
ASA3#,GSA3#..NAP |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90068-59067 |
ASA3#,GSA3#..NAP L=550 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90068-33053 |
ASA3#,GSA3#..NAP L=450 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90068-59070 |
ASA3#,GSA3#..NAP L=1460 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33029 |
ASA3#,GSA3#..NAP L=90 |
1 | ||

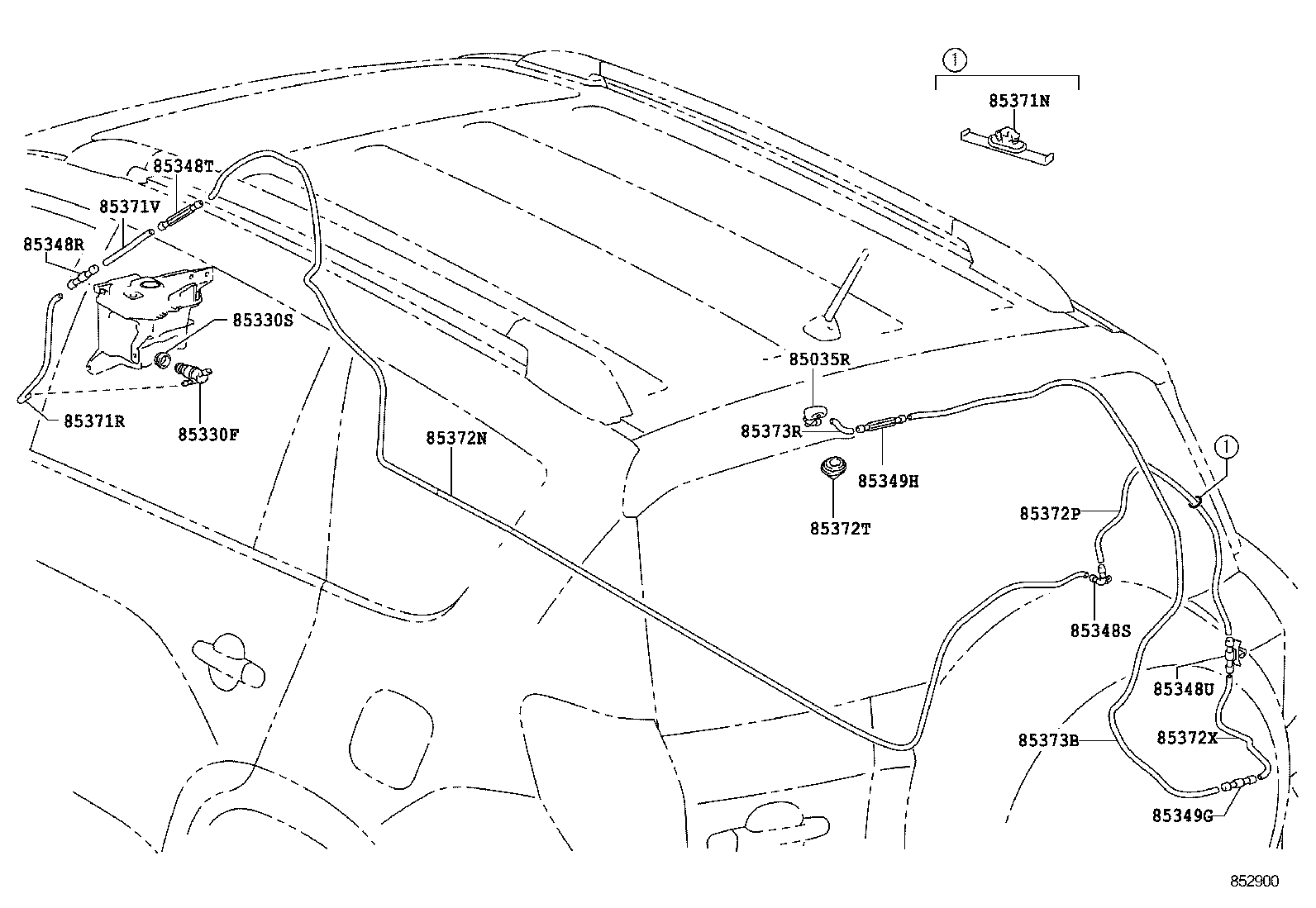

(1104- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-42010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-42040 |
ASA3#,GSA3#..NAP |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-60290 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-32150 |
ASA3#,GSA3#..NAP |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85376-0R020 |
ASA3#,GSA3#..NAP |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-0E010 |
ASA3#,GSA3#..NAP |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-32150 |
ASA3#,GSA3#..NAP |
1 | ||
| 85371N - CLAMP, REAR WASHER HOSE | ||||
| 82711-3F290 |
ASA3#,GSA3#..NAP |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-59071 |
ASA3#,GSA3#..NAP L=90 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90068-33019 |
ASA3#,GSA3#..NAP L=40 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-59102 |
ASA3#,GSA3#..NAP L=3360 |
1 | ||
| 90068-59069 |
ASA3#,GSA3#..NAP L=1190 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59101 |
ASA3#,GSA3#..NAP L=910 |
1 | ||
| 90068-33019 |
ASA3#,GSA3#..NAP L=40 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
ASA3#,GSA3#..NAP |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90068-33053 |
ASA3#,GSA3#..NAP L=450 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90068-59070 |
ASA3#,GSA3#..NAP L=1460 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33029 |
ASA3#,GSA3#..NAP L=90 |
1 | ||
