ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

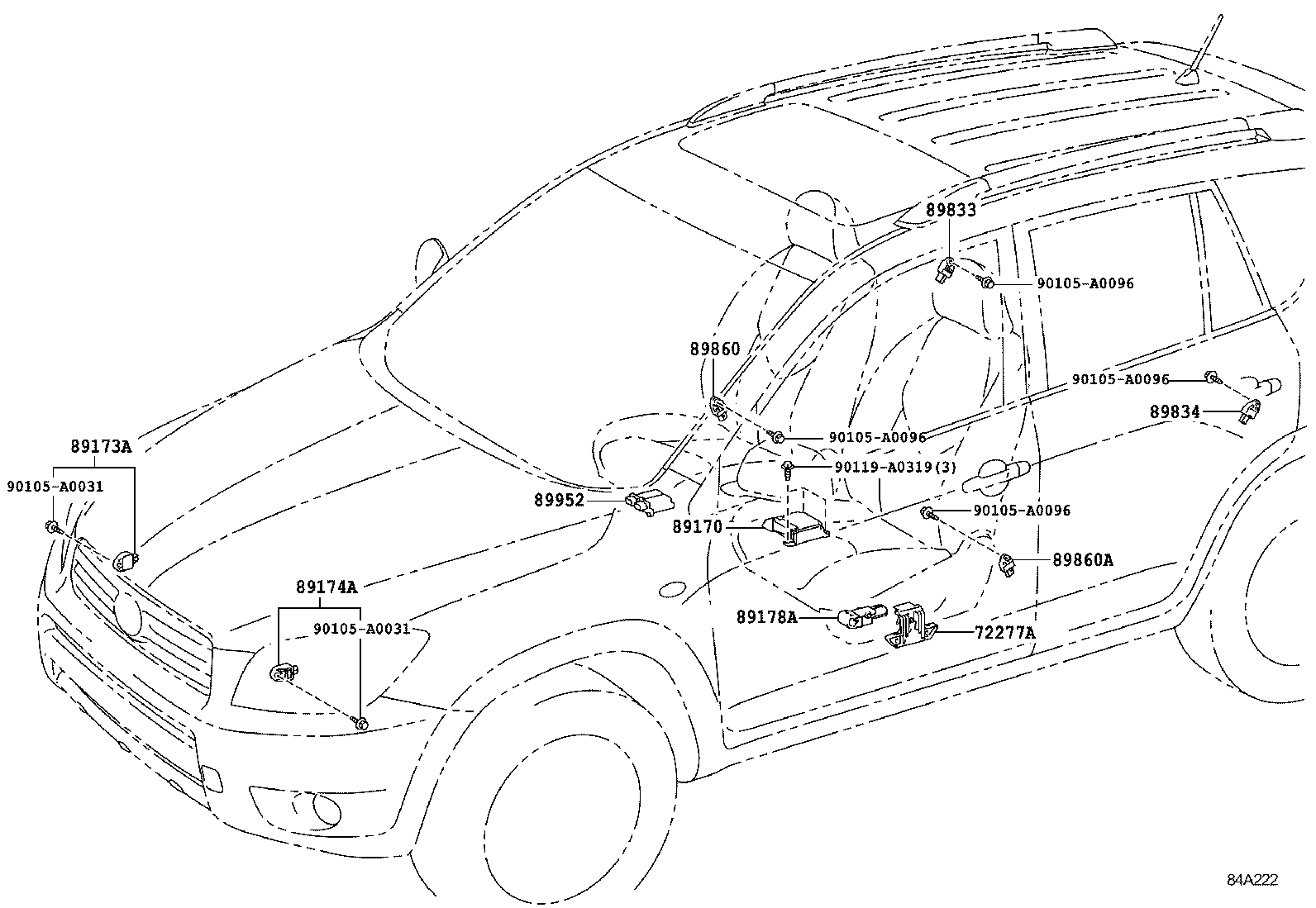

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89833 89834 89860 89860A 89952 90105A0031 90105A0031 90105A0096 90105A0096 90105A0096 90105A0096 90119A0319
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33010

ASA3#,GSA3#..NAP

 1
89170 - SENSOR ASSY, AIR BAG
89170-0R010

ASA3#,GSA3#..NAP..CND

 1
89170-0R021

ASA3#,GSA3#..NAP

 1
89170-0R020

ASA3#,GSA3#..NAP..CND

 1
89170-0R020

ASA3#,GSA3#..NAP..CND

SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)

 1
89170-0R022

ASA3#,GSA3#..NAP

 1
89170-0R120

ASA3#,GSA3#..NAP

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09540

ASA3#,GSA3#..NAP

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09540

ASA3#,GSA3#..NAP

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06030

ASA3#,GSA3#..NAP

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-0R020

ASA3#,GSA3#..NAP..CND

SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)

 1
89831-0R020

ASA3#,GSA3#..NAP..CND

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-0R020

ASA3#,GSA3#..NAP..CND

SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)

 1
89831-0R020

ASA3#,GSA3#..NAP..CND

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0R010

ASA3#,GSA3#..NAP..CND

SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)

 1
89831-0R010

ASA3#,GSA3#..NAP..CND

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0R010

ASA3#,GSA3#..NAP..CND

 1
89831-0R010

ASA3#,GSA3#..NAP..CND

SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

ASA3#,GSA3#..NAP

 1
Common parts
90105-A0031
90105-A0096
90119-A0319
