ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0811- )NAP

Click highlighted areas on diagram

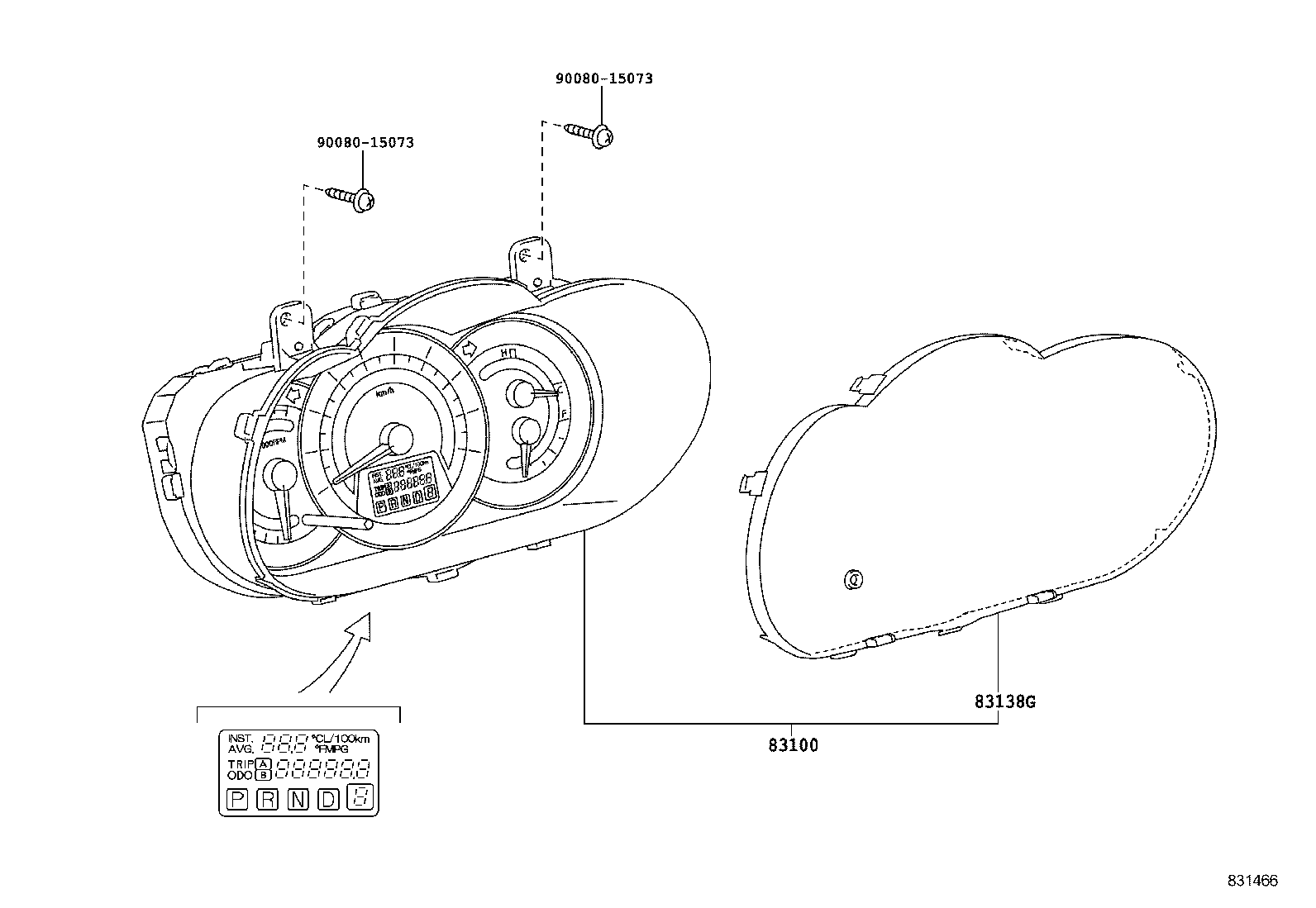

COMBINATION METER

diagram 83100 83138G 9008015073 9008015073
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-0R090

ASA33..NAP..CND

 1
83800-0R091

ASA33..NAP..CND

 1
83138G - GLASS, COMBINATION METER
83852-0R010

ASA3#,GSA3#..NAP

 1
Common parts
90080-15073

ILLUST NO. 2 OF 2(0811- )NAP..SPO,STD

Click highlighted areas on diagram

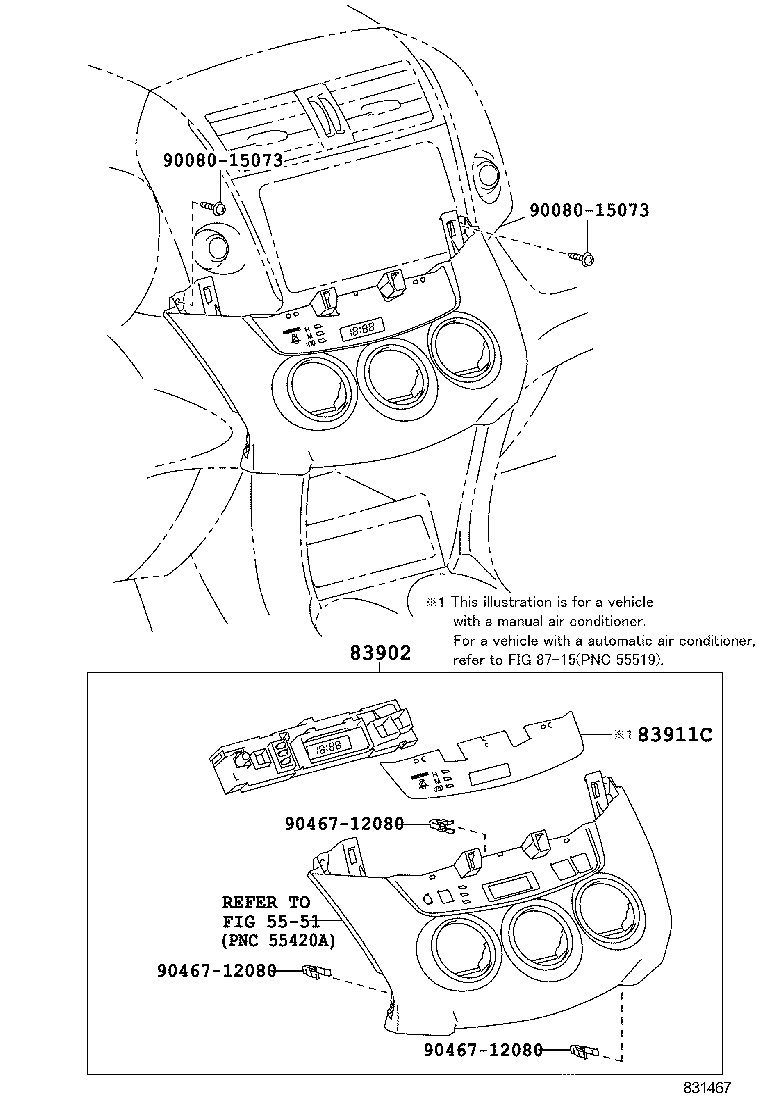

CLOCK

diagram 5551 83902 83911C 9008015073 9008015073 9046712080 9046712080 9046712080
Part # Description Qty Price
83902 - CLOCK SUB-ASSY
83920-0R010B0

ASA3#,GSA3#..NAP..STD

GRAY,TRIM1#,4#

 1
83920-0R011B0

ASA3#,GSA3#..NAP..STD

GRAY,TRIM1#,4#

 1
83911C - ORNAMENT, CLOCK
83911-0R010

ASA3#,GSA3#..NAP..(SPO,STD)

 1
Common parts
90080-15073
90467-12080
Linked diagrams
5551
