ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

Click highlighted areas on diagram

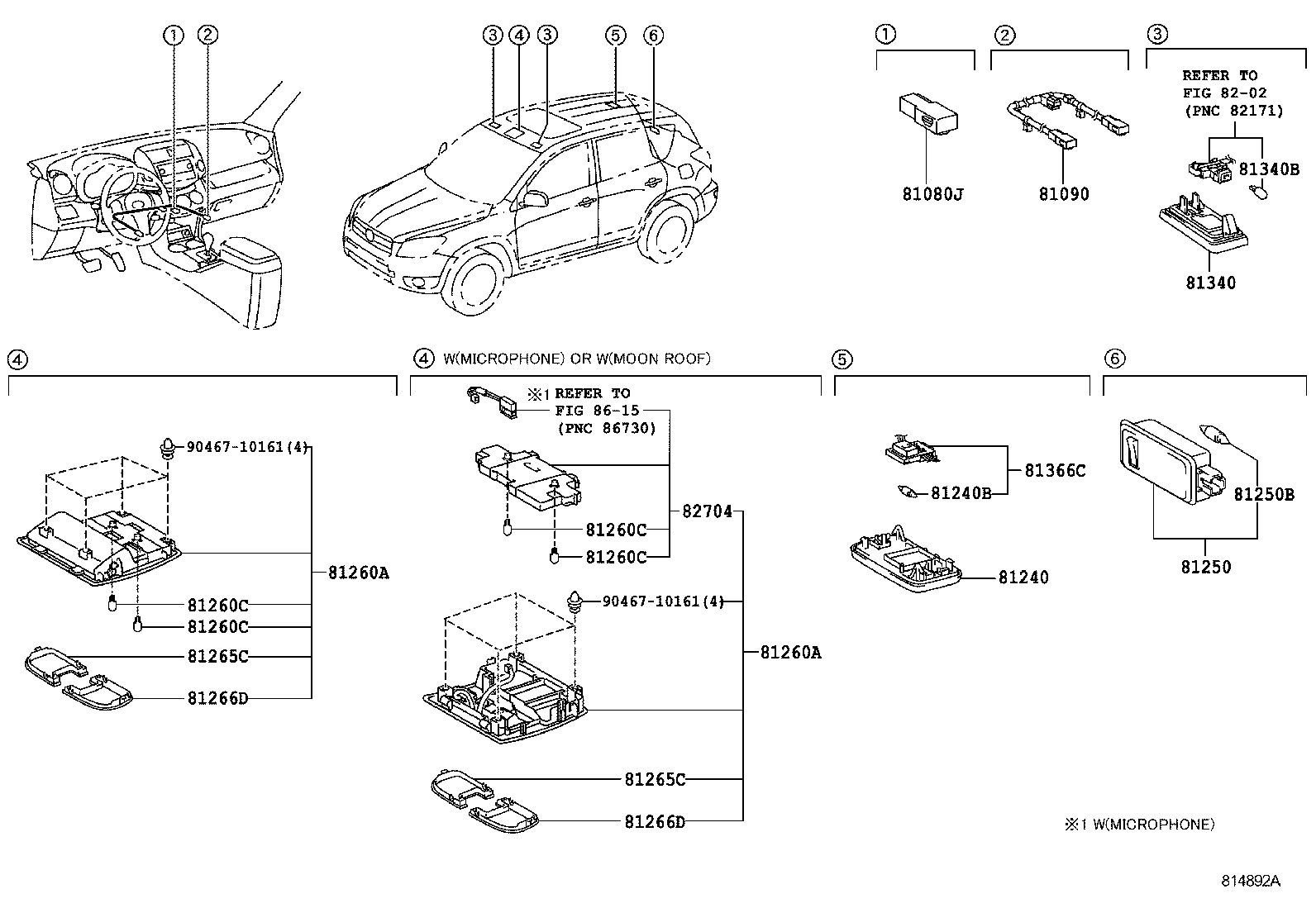

diagram 81080J 81090 81240 81240B 81250 81250B 81260A 81260A 81260C 81260C 81260C 81260C 81265C 81265C 81266D 81266D 81340 81340B 81366C 8202 82704 8615 9046710161 9046710161
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-42010

ASA3#,GSA3#..NAP

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-02090B1

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 1
81240-02090E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ASA3#,GSA3#..NAP

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ASA3#,GSA3#..NAP

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ASA3#,GSA3#..NAP

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-42110E0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,SAND BEIGE,TRIM4#

 1
81260-42110B0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,GRAY,TRIM1#

 1
81260-42011B1

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 1
81260-42061B0

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 1
81260-42011E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
81260-42061E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
81260-42140B0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,GRAY,TRIM1#

 1
81260-42140E0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,SAND BEIGE,TRIM4#

 1
81260A - LAMP ASSY, MAP
81260-42110E0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,SAND BEIGE,TRIM4#

 1
81260-42110B0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,GRAY,TRIM1#

 1
81260-42011B1

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 1
81260-42061B0

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 1
81260-42011E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
81260-42061E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
81260-42140B0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,GRAY,TRIM1#

 1
81260-42140E0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,SAND BEIGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

ASA3#,GSA3#..NAP

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ASA3#,GSA3#..NAP

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ASA3#,GSA3#..NAP

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ASA3#,GSA3#..NAP

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-42020

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE

 1
81265-42010

ASA3#,GSA3#..NAP

 1
81265-42020

ASA3#,GSA3#..NAP

 1
81265C - LENS, MAP LAMP, NO.1
81265-42020

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE

 1
81265-42010

ASA3#,GSA3#..NAP

 1
81265-42020

ASA3#,GSA3#..NAP

 1
81266D - LENS, MAP LAMP, NO.2
81266-42010

ASA3#,GSA3#..NAP

 1
81266-42020

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE

 1
81266-42020

ASA3#,GSA3#..NAP

 1
81266D - LENS, MAP LAMP, NO.2
81266-42010

ASA3#,GSA3#..NAP

 1
81266-42020

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE

 1
81266-42020

ASA3#,GSA3#..NAP

 1
81340 - LAMP ASSY, VANITY
81340-30100E2

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 2
81340-30110

ASA3#,GSA3#..NAP

 2
81340-30100B1

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ASA3#,GSA3#..NAP

12V 8W

 2
81366C - BASE, ROOM LAMP SWITCH
81366-02010

ASA3#,GSA3#..NAP

 1
82704 - BLOCK, OVERHEAD JUNCTION
82704-42090B0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,GRAY,TRIM1#

 1
82704-42100E0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,SAND BEIGE,TRIM4#

 1
82704-42100B0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,GRAY,TRIM1#

 1
82704-42040E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
82704-42040B0

ASA3#,GSA3#..NAP

GRAY,TRIM1#

 1
82704-42090E0

ASA3#,GSA3#..NAP..STD

US BASE PLUS PACKAGE,SAND BEIGE,TRIM4#

 1
