ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

Click highlighted areas on diagram

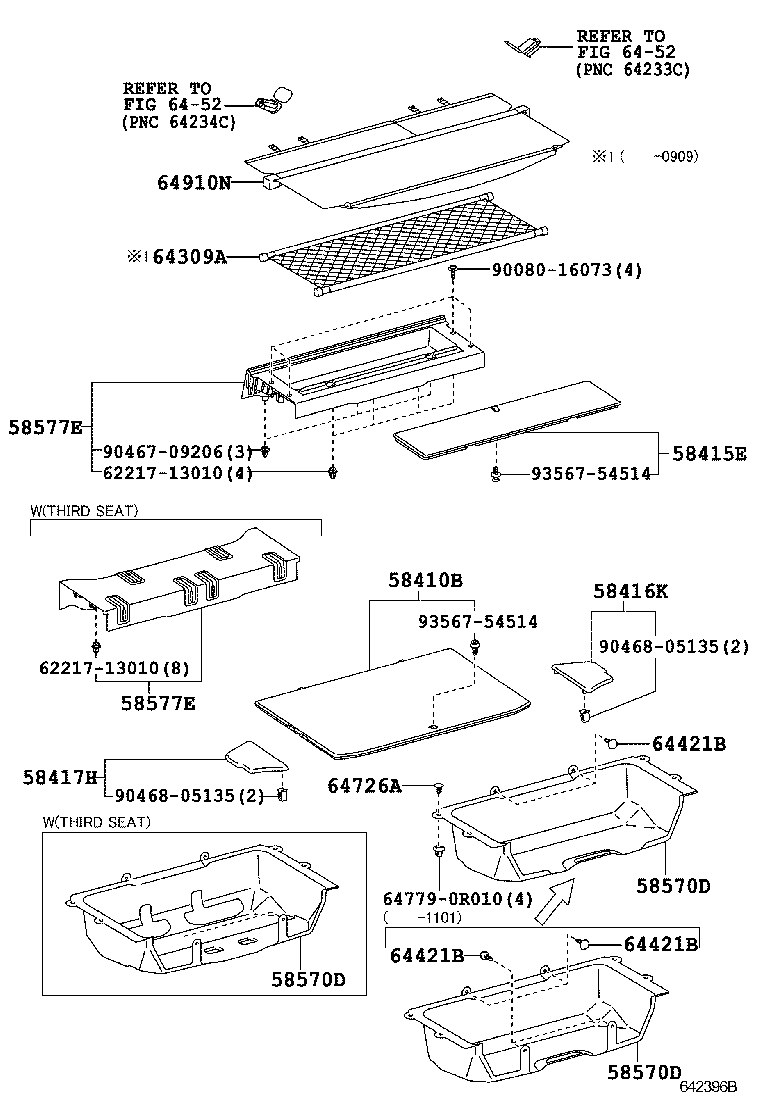

diagram 58410B 58415E 58416K 58417H 58570D 58570D 58570D 58577E 58577E 6221713010 6221713010 64309A 64421B 64421B 64421B 6452 6452 64726A 647790R010 64910N 9008016073 9046709206 9046805135 9046805135 9356754514 9356754514
Part # Description Qty Price
58410B - BOARD ASSY, DECK
58410-0R010E3

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58410-0R010B5

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58410-0R010B7

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58415E - BOARD, REAR FLOOR, NO.1
58415-0R010B7

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58415-0R010B5

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58415-0R010E3

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58416K - BOARD, REAR FLOOR, NO.2
58416-0R010B0

ASA3#,GSA3#..NAP..(LIMD,STD)

DK.GRAY,TRIM1#,4#

 1
58417H - BOARD, REAR FLOOR, NO.3
58417-0R010B0

ASA3#,GSA3#..NAP..(LIMD,STD)

DK.GRAY,TRIM1#,4#

 1
58570D - CARPET ASSY, REAR FLOOR
58571-0R020E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58571-0R010

ASA3#,GSA3#..NAP

 1
58571-0R020B1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
58570D - CARPET ASSY, REAR FLOOR
58571-0R020E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58571-0R010

ASA3#,GSA3#..NAP

 1
58571-0R020B1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
58570D - CARPET ASSY, REAR FLOOR
58571-0R020E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58571-0R010

ASA3#,GSA3#..NAP

 1
58571-0R020B1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
58577-0R010B3

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58577-0R020E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58577-0R010E2

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58577-0R020B1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
58577-0R010B3

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58577-0R020E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58577-0R010E2

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58577-0R020B1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
64421B - CLIP(FOR LUGGAGE COMPARTMENT TRAY)
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 2
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 4
64421B - CLIP(FOR LUGGAGE COMPARTMENT TRAY)
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 2
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 4
64421B - CLIP(FOR LUGGAGE COMPARTMENT TRAY)
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 2
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 4
64726A - CLIP, LUGGAGE TRIM, REAR
64726-26010B1

ASA3#,GSA3#..NAP

DK.GRAY

 4
64910N - COVER ASSY, TONNEAU
64910-0R010B0

ASA3#,GSA3#..NAP..STD

PACKAGE TRAY TRIM & TONEAU COVER-TONEAU COVER ONLY,DK.GRAY,TRIM1#,4#

 1
Common parts
62217-13010
64779-0R010
90080-16073
90467-09206
90468-05135
93567-54514
Linked diagrams
6452
