ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

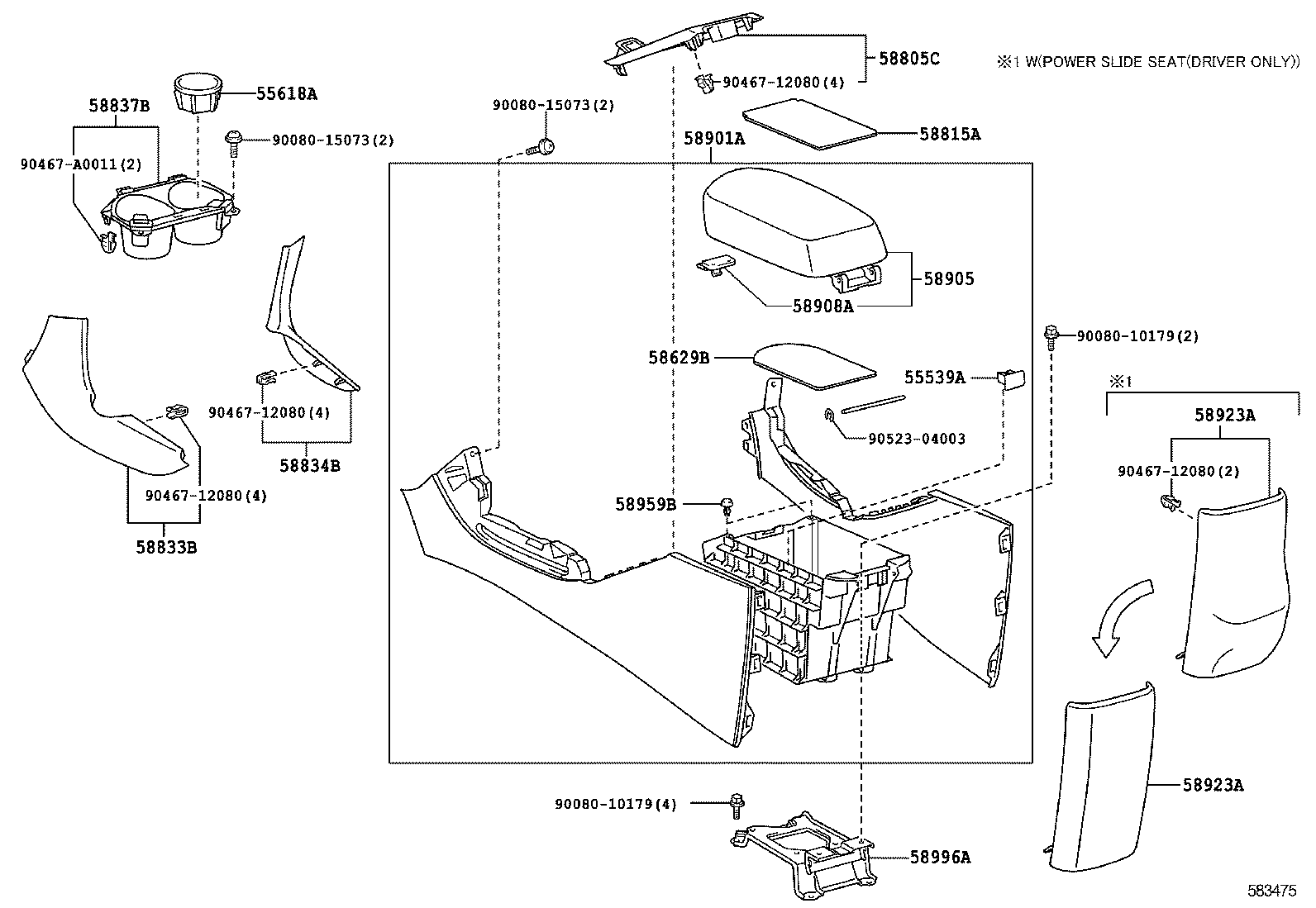

Click highlighted areas on diagram

diagram 55539A 55618A 58629B 58805C 58815A 58833B 58834B 58837B 58901A 58905 58908A 58923A 58923A 58959B 58996A 9008010179 9008010179 9008015073 9008015073 9046712080 9046712080 9046712080 9046712080 90467A0011 9052304003
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-02130B0

ASA3#,GSA3#..NAP

DK.GRAY

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-0R011

ASA3#,GSA3#..NAP

 1
55618-0R010

ASA3#,GSA3#..NAP

 1
58629B - MAT, CENTER CONSOLE
58629-0R010

ASA3#,GSA3#..NAP

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-0R010B1

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58805-0R011E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58805-0R010E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58805-0R011B1

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-0R010

ASA3#,GSA3#..NAP

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-0R010B0

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#,4#

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-0R010B0

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#,4#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-0R010B0

ASA3#,GSA3#..NAP..(LIMD,STD)

DK.GRAY,TRIM1#,4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-0R010B5

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58901-0R010E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-0R010E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58905-0R010B3

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12080

ASA3#,GSA3#..NAP

 1
58908-32021

ASA3#,GSA3#..NAP

 1
58923A - PANEL, CONSOLE REAR END
58923-0R010B1

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58923-0R010E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58923A - PANEL, CONSOLE REAR END
58923-0R010B1

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58923-0R010E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-0R010

ASA3#,GSA3#..NAP

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-0R010

ASA3#,GSA3#..NAP

 1
Common parts
90080-10179
90080-15073
90467-12080
90467-A0011
90523-04003
