ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

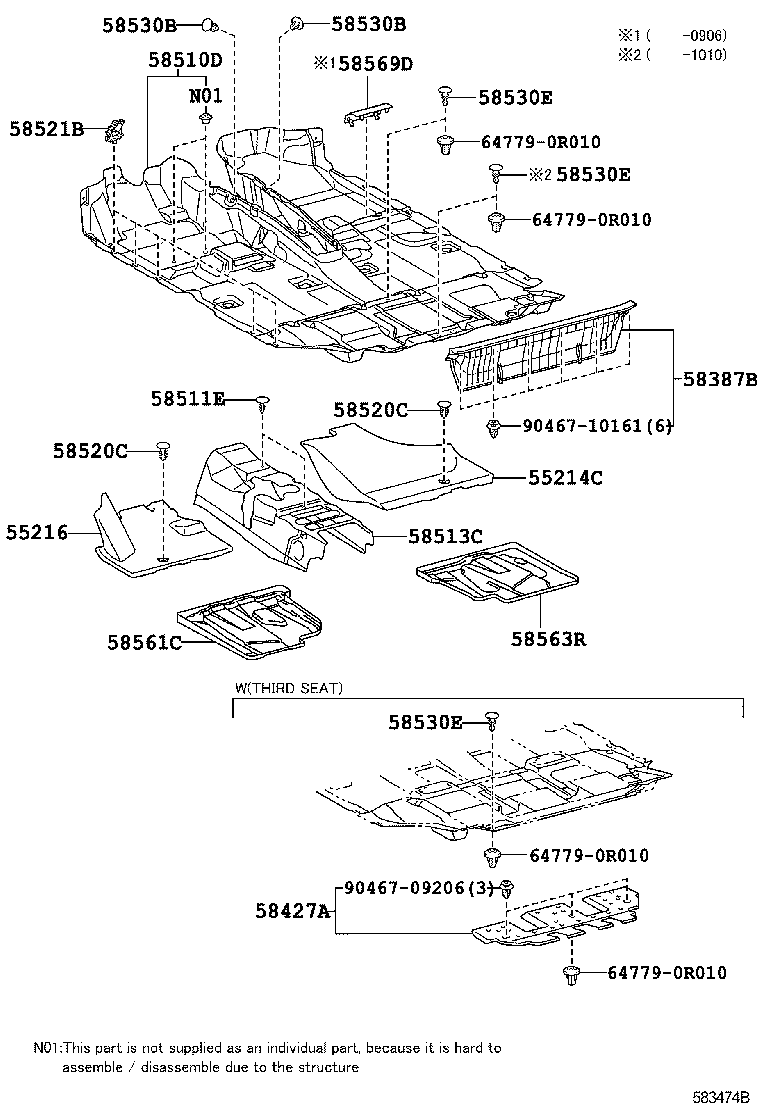

Click highlighted areas on diagram

diagram 55214C 55216 58387B 58427A 58510D 58511E 58513C 58520C 58520C 58521B 58530B 58530B 58530E 58530E 58530E 58561C 58563R 58569D 647790R010 647790R010 647790R010 647790R010 9046709206 9046710161
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0R010

ASA3#,GSA3#..NAP

 1
55216 - PAD, DASH PANEL INSULATOR, NO.4
55216-0R010

ASA3#,GSA3#..NAP

 1
58387B - PLATE, REAR FLOOR FINISH
58387-0R010B0

ASA3#,GSA3#..NAP..(LIMD,STD)

DK.GRAY,TRIM1#,4#

 1
58387-0R020B0

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,DK.GRAY,TRIM1#,4#

 1
58427A - SPACER, REAR FLOOR BOARD
58427-42010

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0R020B2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
58510-0R010E2

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58510-0R011E2

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58510-0R021E2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58510-0R021B2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
58510-0R020E2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
58510-0R011B3

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58510-0R010B3

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-05164C0

ASA3#,GSA3#..NAP

BLACK

 2
58513C - MAT, FLOOR, FRONT CENTER
58513-0R010

ASA3#,GSA3#..NAP

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
63399-0R010

ASA3#,GSA3#..NAP

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
63399-0R010

ASA3#,GSA3#..NAP

 2
58521B - HOOK, FLOOR CARPET
58521-0R010

ASA3#,GSA3#..NAP

 10
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09050

ASA3#,GSA3#..NAP

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09050

ASA3#,GSA3#..NAP

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 2
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 2
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 2
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 2
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 2
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,GRAY,TRIM1#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

 1
64726-26010E1

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 2
64726-26010B2

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0R010

ASA3#,GSA3#..NAP

 1
58563R - SILENCER, FRONT FLOOR, NO.3
58563-0R010

ASA3#,GSA3#..NAP

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-0R010E0

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
58569-0R010B1

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
Common parts
64779-0R010
90467-09206
90467-10161
