ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NAP

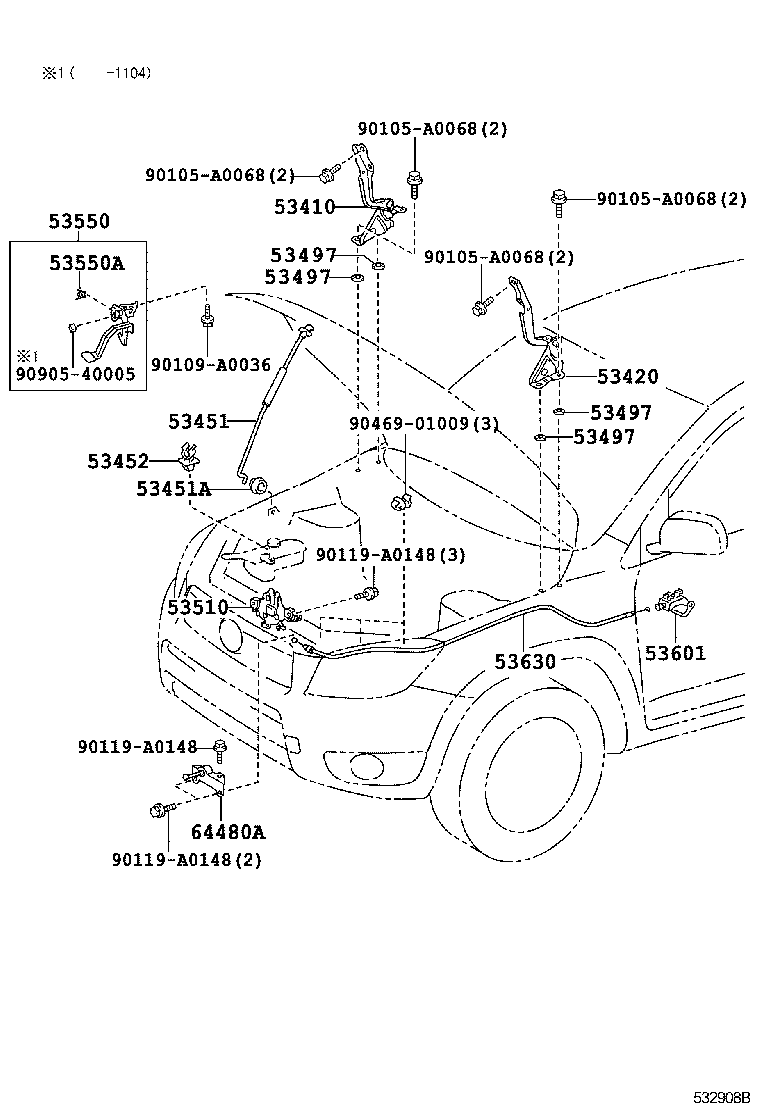

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53497 53497 53510 53550 53550A 53601 53630 64480A 90105A0068 90105A0068 90105A0068 90105A0068 90109A0036 90119A0148 90119A0148 90119A0148 9046901009 9090540005
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0R030

ASA3#,GSA3#..NAP

 1
53420 - HINGE ASSY, HOOD, LH
53420-0R030

ASA3#,GSA3#..NAP

 1
53451 - ROD, HOOD SUPPORT
53440-0R010

ASA3#,GSA3#..NAP

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
53454-0R010

ASA3#,GSA3#..NAP

 1
53452 - HOLDER, HOOD STAY
53452-0R010

ASA3#,GSA3#..NAP

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ASA3#,GSA3#..NAP

T=0.5

 4
53497-20070

ASA3#,GSA3#..NAP

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ASA3#,GSA3#..NAP

T=0.5

 4
53497-20070

ASA3#,GSA3#..NAP

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ASA3#,GSA3#..NAP

T=0.5

 4
53497-20070

ASA3#,GSA3#..NAP

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ASA3#,GSA3#..NAP

T=0.5

 4
53497-20070

ASA3#,GSA3#..NAP

T=2.0

 4
53510 - LOCK ASSY, HOOD
53510-42090

ASA3#,GSA3#..NAP

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-42020

ASA3#,GSA3#..NAP

 1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90508-18120

ASA3#,GSA3#..NAP

 1
90508-18102

ASA3#,GSA3#..NAP

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02020B3

ASA3#,GSA3#..NAP..(LIMD,STD)

GRAY,TRIM1#

 1
53601-02020E3

ASA3#,GSA3#..NAP..(LIMD,STD)

SAND BEIGE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0R010

ASA3#,GSA3#..NAP

 1
64480A - STRIKER ASSY, ENGINE HOOD LOCK
64480-42010

ASA3#,GSA3#..NAP

 1
Common parts
90105-A0068
90109-A0036
90119-A0148
90469-01009
90905-40005
