ASA33L-CNPXKK (2008)
Toyota Rav4 (Nap)

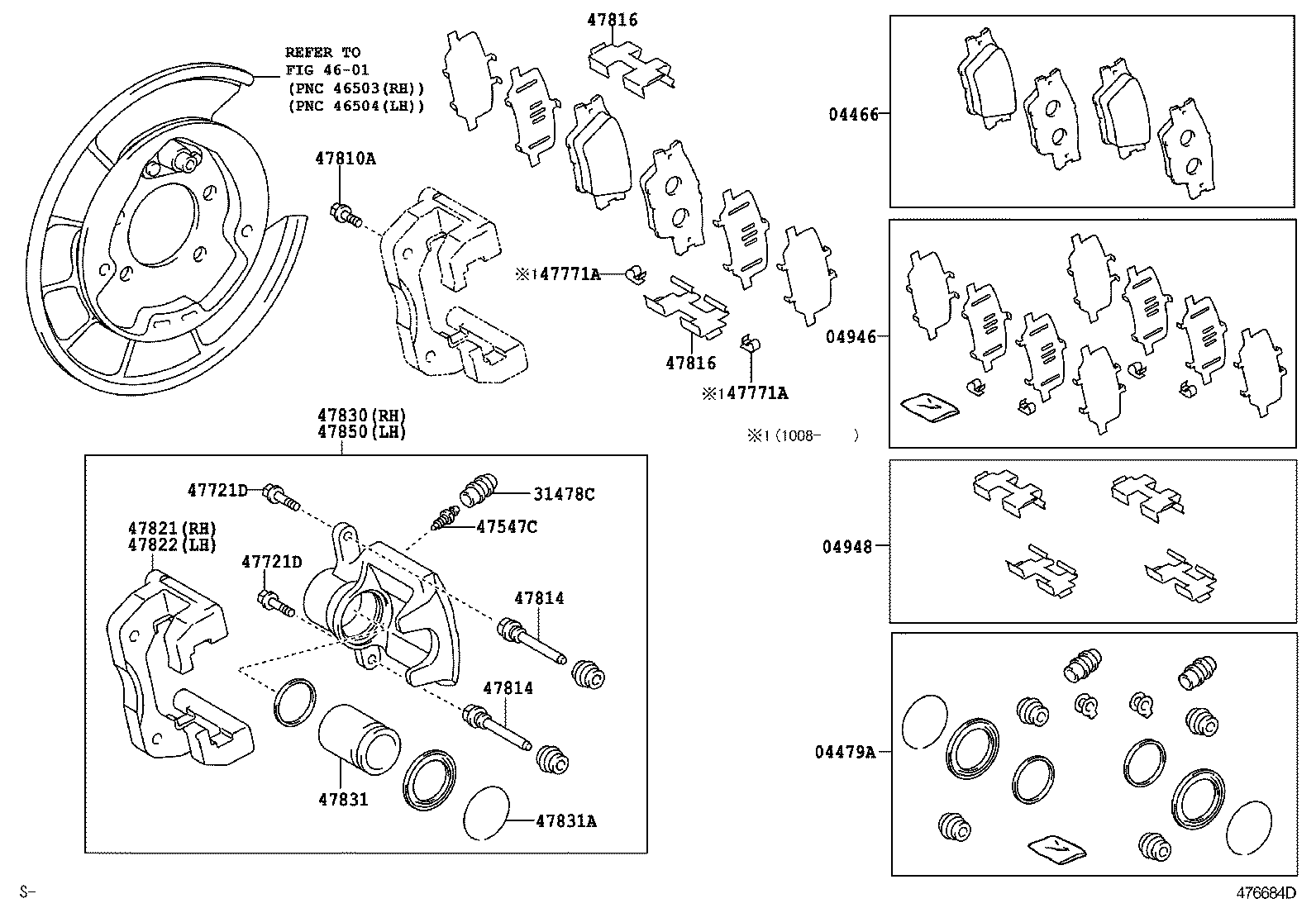

(0811-1109)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-42060 |
ASA3#,GSA3#..NAP MARK ADVICS PS558 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-0R010 |
ASA3#,GSA3#..NAP (L) |
2 | ||
| 31478-50020 |
ASA3#,GSA3#..NAP (J) |
2 | ||
| 31478-0R010 |
ASA3#,GSA3#..NAP |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12130 |
ASA3#,GSA3#..NAP |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA604 |
ASA3#,GSA3#..NAP |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA604 |
ASA3#,GSA3#..NAP |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-A0248 |
ASA3#,GSA3#..NAP |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47814-06120 |
ASA3#,GSA3#..NAP |
2 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47814-06120 |
ASA3#,GSA3#..NAP |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-0R010 |
ASA3#,GSA3#..NAP |
4 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-0R010 |
ASA3#,GSA3#..NAP |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47821-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47822-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-0R011 |
ASA3#,GSA3#..NAP |
1 | ||
| 47830-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47830-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-06050 |
ASA3#,GSA3#..NAP |
2 | ||
| 47831A - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90016-AU502 |
ASA3#,GSA3#..NAP |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47850-0R011 |
ASA3#,GSA3#..NAP |
1 | ||
| 47850-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||

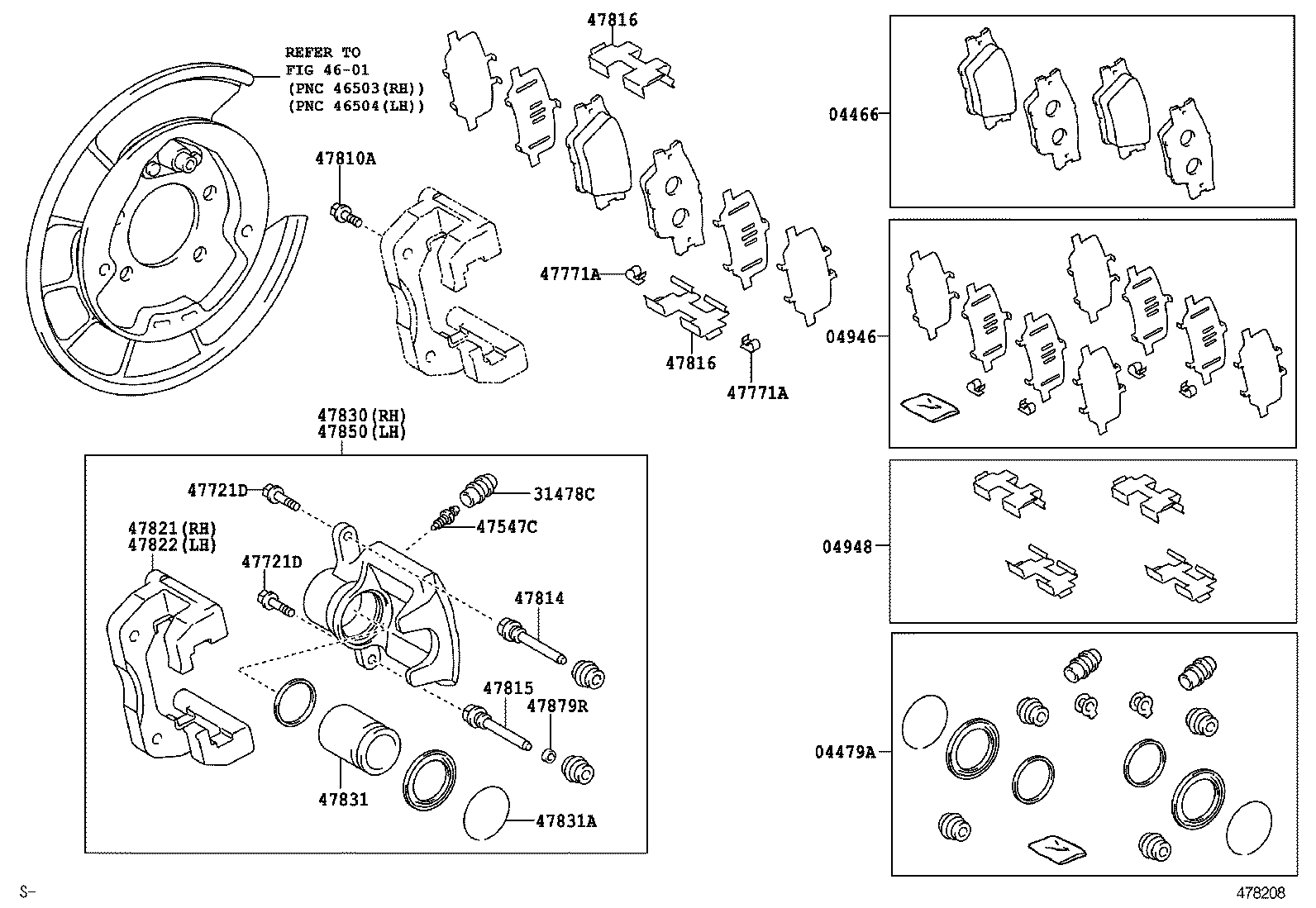

(1109- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-42060 |
ASA3#,GSA3#..NAP MARK ADVICS PS558 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-0R010 |
ASA3#,GSA3#..NAP (L) |
2 | ||
| 31478-50020 |
ASA3#,GSA3#..NAP (J) |
2 | ||
| 31478-0R010 |
ASA3#,GSA3#..NAP |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12130 |
ASA3#,GSA3#..NAP |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA604 |
ASA3#,GSA3#..NAP |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA604 |
ASA3#,GSA3#..NAP |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47871-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-A0248 |
ASA3#,GSA3#..NAP |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-06050 |
ASA3#,GSA3#..NAP |
4 | ||
| 47814-06120 |
ASA3#,GSA3#..NAP |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-06120 |
ASA3#,GSA3#..NAP |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-0R010 |
ASA3#,GSA3#..NAP |
4 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-0R010 |
ASA3#,GSA3#..NAP |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47821-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47822-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-0R011 |
ASA3#,GSA3#..NAP |
1 | ||
| 47830-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47830-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-06050 |
ASA3#,GSA3#..NAP |
2 | ||
| 47831A - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90016-AU502 |
ASA3#,GSA3#..NAP |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-0R030 |
ASA3#,GSA3#..NAP |
1 | ||
| 47850-0R011 |
ASA3#,GSA3#..NAP |
1 | ||
| 47850-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 47879R - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47879-06120 |
ASA3#,GSA3#..NAP |
2 | ||
| Linked diagrams | ||||
| 4601 | ||||
